| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

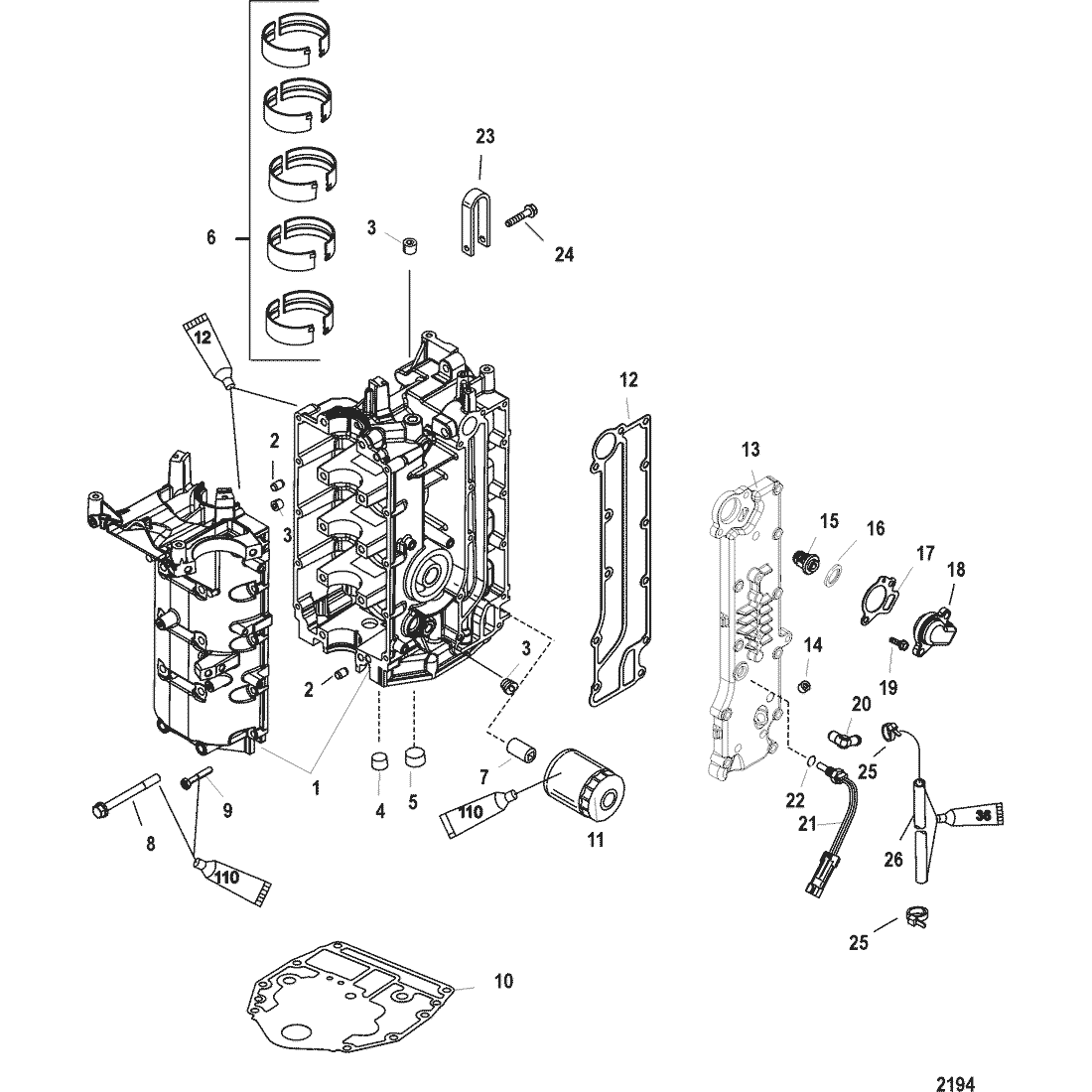

| 1 | 893678T03 | CYLINDER BLOCK ASSEMBLY | 893502T02 | NLA |
|
$4,007.15 | $3,673.43 | 1 | |
| 2 | 825010 | --PIN, Dowel | ACT | $4.19 | $4.10 | 2 | |||
| 3 | 479452 | --PLUG | ACT | $1.70 | $1.66 | 3 | |||
| 4 | 889567 | --PLUG, (.500-14) | ACT | $2.39 | $2.33 | 1 | |||
| 5 | 416223 | --PLUG, Pipe (.750-14) | ACT | $3.49 | $3.40 | 1 | |||
| 6 | 893631 | --BEARING, Main - Brown | ACT |
|
$16.79 | $16.45 | 10 | ||
| 6 | 893631001 | --BEARING, Main - Black | ACT |
|
$17.29 | $16.94 | 10 | ||
| 6 | 893631002 | --BEARING, Main - Blue | ACT |
|
$19.59 | $19.12 | 10 | ||
| 7 | 822625 | --NIPPLE, (M20) | ACT | $23.99 | $23.49 | 1 | |||
| 8 | 82506182 | SCREW, (M8 x 82) | NLA |
|
$0.00 | $0.00 | 10 | ||
| 9 | 8M0241960 | SCREW, (M6 x 35) | 88348935 | SS |
|
$3.09 | $3.01 | 10 | |
| 10 | 8M0213112 | GASKET | 892319001 | SS |
|
$87.99 | $84.48 | 1 | |
| 11 | 8M0162829 | FILTER, Oil | 822626K04 | SS |
|
$15.89 | $15.51 | 1 | |
| 12 | 8M0224375 | GASKET | 857078 | SS |
|
$15.09 | $14.73 | 1 | |
| 13 | 8M0188836 | COVER ASSEMBLY, Exhaust | 893692A01 | SS |
|
$117.49 | $110.34 | 1 | |
| 14 | 479452 | --PLUG | ACT | $1.70 | $1.66 | 1 | |||
| 15 | 14586 | THERMOSTAT | ACT | $40.99 | $40.10 | 1 | |||
| 16 | 887978 | GASKET | ACT | $3.39 | $3.30 | 1 | |||
| 17 | 8M0177107 | GASKET | 824853 | SS |
|
$12.69 | $12.39 | 1 | |
| 18 | 8M0188835 | COVER | 857080 | SS |
|
$15.99 | $15.61 | 1 | |
| 19 | 8M0241960 | SCREW, (M6 x 35) | 88348935 | SS |
|
$3.09 | $3.01 | 12 | |
| 20 | 996642 | FITTING, Elbow 90 Degree (.125-27 x .250) Nylon | ACT | $2.69 | $2.62 | 1 | |||
| 21 | 8M0214984 | SENSOR ASSEMBLY | 889575 | SS |
|
$62.49 | $59.88 | 1 | |
| 22 | 627021 | --O-RING, (.301 x .070) | ACT | $1.70 | $1.66 | 1 | |||
| 23 | 893697 | LIFTING EYE | ACT | $5.09 | $4.98 | 1 | |||
| 24 | 857139 | SCREW, (M8 x 35) | ACT | $1.60 | $1.57 | 1 | |||
| 25 | 816311T | TIE STRAP, (8.00 Inches) | ACT | $0.60 | $0.59 | 2 | |||
| 26 | 8M0108349 | TUBING, (.312) (70.00 Inches Bulk) (Cut to 10 Inches) To VST Cooler | 830757130 | SS |
|
$64.99 | $62.28 | 1 | |
| - | 883599A02 | GASKET SET | ACT | $362.49 | $346.43 | 1 | |||
| - | 893678T03 | POWERHEAD ASSEMBLY | 878344T03 | SS |
|
$4,007.15 | $3,673.43 | 1 |
