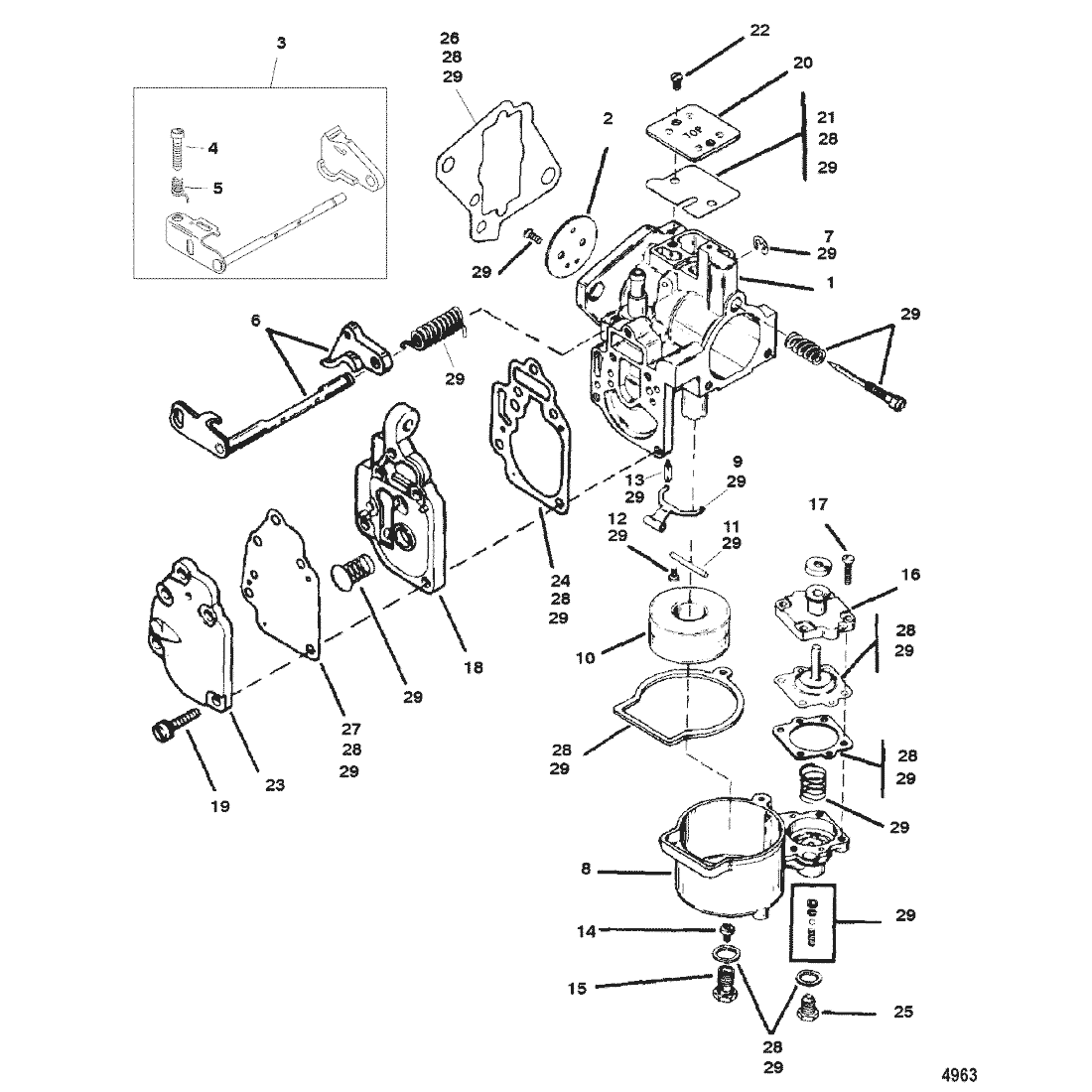

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9503T21 | CARBURETOR (6)(WMC-66) | 9503A20 | SS |
|
$0.00 | $0.00 | 1 | |
| 1 | 9503T21 | CARBURETOR, (WMC-78A) (6) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 1 | 9266T22 | CARBURETOR (8)(WMC-74) | 9266A21 | SS |
|
$484.49 | $448.33 | 1 | |
| 1 | 9266T22 | CARBURETOR (8)(WMC-79A) | ACT | $484.49 | $448.33 | 1 | |||
| 1 | 8846T28 | CARBURETOR (WMC-61) | 8846T20 | SS |
|
$360.99 | $334.00 | 1 | |
| 1 | 8846T28 | CARBURETOR, (WMC-80A) (9.9) | 8846T25 | SS |
|
$360.99 | $334.00 | 1 | |
| 1 | 9726T18 | CARBURETOR (15)(WMC-63) | 9726T11 | SS |
|
$367.99 | $340.61 | 1 | |
| 1 | 9726T18 | CARBURETOR, (WMC-77) (15) | 9726T15 | SS |
|
$367.99 | $340.61 | 1 | |
| 1 | 9726T18 | CARBURETOR, (WMC-83) (15) | ACT |
|
$367.99 | $340.61 | 1 | ||
| 2 | 9473 | --VALVE, Throttle | ACT |
|
$6.79 | $6.64 | 1 | ||
| 2 | 815133 | --VALVE, Throttle | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 94731 | --VALVE, Throttle | ACT |
|
$25.99 | $25.45 | 1 | ||
| 2 | 823716 | --VALVE, Throttle | ACT |
|
$14.89 | $14.53 | 1 | ||
| 3 | 804707 | --SHAFT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 4 | 804997 | ----SCREW | ACT | $4.19 | $4.10 | 1 | |||
| 5 | 804996 | ----SPRING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 6 | 813022 | --SHAFT, Throttle | ACT |
|
$59.99 | $56.35 | 1 | ||
| 6 | 19267 | --SHAFT, Throttle | ACT |
|
$41.99 | $41.16 | 1 | ||
| 7 | F10167 | --RING | ACT | $5.29 | $5.17 | 1 | |||
| 8 | 9164 | --BOWL, Fuel | ACT | $88.99 | $83.74 | 1 | |||
| 9 | 824401 | --LEVER, Float | ACT | $7.09 | $6.93 | 1 | |||
| 10 | 91691 | --FLOAT | ACT | $13.59 | $13.27 | 1 | |||
| 11 | F10064 | --SHAFT | ACT | $4.59 | $4.49 | 1 | |||
| 12 | 5902 | --SCREW, (#6-32 x .187) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 803861 | --VALVE, Inlet Needle | ACT | $25.49 | $24.96 | 1 | |||
| 14 | 5315 | --JET, Main Fuel (.042) | NLA |
|
$10.88 | $10.63 | 1 | ||
| 14 | 5317 | --JET, (.046) | ACT |
|
$4.09 | $4.00 | 1 | ||
| 14 | 6246 | --JET, (.048) | ACT |
|
$18.69 | $18.24 | 1 | ||
| 14 | 6207 | --JET, (.072) | ACT |
|
$14.09 | $13.75 | 1 | ||
| 15 | 9171 | --PLUG | ACT | $8.89 | $8.68 | 1 | |||
| 16 | 813618 | --COVER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 16 | 823648 | --COVER, Diaphragm | NLA |
|
$0.00 | $0.00 | 1 | ||
| 17 | 9697 | --SCREW | NLA |
|
$0.00 | $0.00 | 4 | ||
| 18 | 9702 | --BODY | 15827A1 | NLA |
|
$0.00 | $0.00 | 1 | |
| 19 | 9643 | --SCREW | ACT | $4.99 | $4.88 | 5 | |||
| 20 | 9699 | --PLATE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 21 | 44426 | --GASKET | ACT | $7.79 | $7.61 | 1 | |||
| 22 | 9696 | --SCREW | NLA |
|
$0.00 | $0.00 | 2 | ||
| 23 | 96371 | --COVER, Fuel Pump | NLA |
|
$0.00 | $0.00 | 1 | ||
| 23 | 9637 | --COVER | ACT |
|
$30.79 | $30.20 | 1 | ||
| 24 | 9633 | --GASKET | ACT | $5.19 | $5.08 | 1 | |||
| 25 | 9762 | --PLUG | NLA |
|
$0.00 | $0.00 | 1 | ||
| 26 | 192061 | --GASKET, Carburetor | ACT |
|
$4.99 | $4.88 | 1 | ||
| 27 | 9635 | --DIAPHRAGM/GASKET | ACT | $45.99 | $45.17 | 1 | |||
| 28 | 97611 | --GASKET/DIAPHRAGM KIT | ACT | $87.99 | $82.80 | 1 | |||
| 29 | 8237072 | --REPAIR KIT | ACT | $136.99 | $123.13 | 1 | |||
| - | 42364A92 | GASKET SET, Engine | ACT | $111.99 | $100.97 | 1 |
