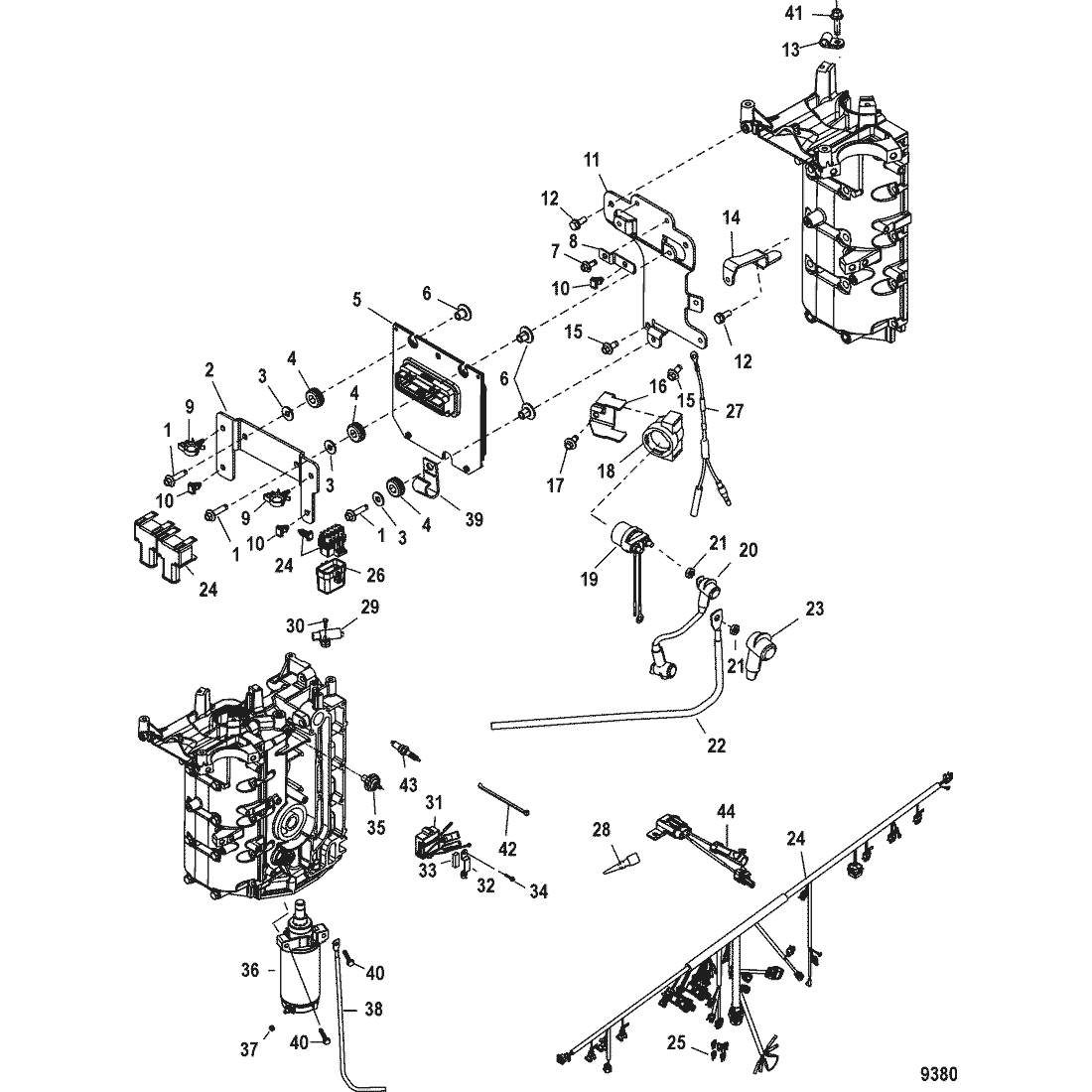

Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan
1 82129125 SCREW, (M6 x 25 MM) ACT $3.39 $3.30 3
2 893774002 BRACKET 893774 SS $13.79 $13.46 1
3 8M0214930 WASHER 4002316 SS $1.00 $0.98 3
4 8M0190980 GROMMET 834985 SS $3.89 $3.79 3
5 898369T01 ECM, Engine Control Module 89195234T SS $1,282.99 $1,175.96 1
5 898369T24 ECM, Engine Control Module 89195233T SS $1,282.99 $1,175.96 1
5 898369T02 ECM, Engine Control Module 89195236T SS $1,398.49 $1,282.04 1
5 898369T25 ECM, Engine Control Module 89195235T SS $1,398.49 $1,282.04 1
5 898369T03 ECM, Engine Control Module 89195238T SS $1,428.49 $1,309.54 1
5 898369T04 ECM, Engine Control Module 89195237T SS $939.50 $883.89 1
6 856954 BUSHING ACT $6.99 $6.83 3
7 82129114 SCREW, (M6 x 14) ACT $2.49 $2.43 1
8 858953 BRACKET ACT $3.89 $3.79 1
9 858954 CLIP, (.625) ACT $3.99 $3.91 2
10 879962 CLIP (Part of Electrical Harness) ACT $1.99 $1.95 3
11 8M0009177 PLATE 877802 SS $21.99 $21.61 1
12 8248324 SCREW, (M6 x 16) ACT $1.80 $1.76 3
13 24836 CLIP ACT $4.19 $4.10 1
14 8M0007734 BRACE 882753 SS $6.99 $6.83 1
15 82129114 SCREW, (M6 x 14) ACT $2.49 $2.43 2
16 893768 PLATE, Solenoid 8250741 SS $0.00 $0.00 1
17 82129114 SCREW, (M6 x 14) ACT $2.49 $2.43 1
18 8M0010250 BRACKET 95643M SS $22.99 $22.59 1
19 8M0098898 RELAY 825096T SS $45.99 $45.17 1
20 93388A16 CABLE ASSEMBLY, (8.50 Inches) ACT $19.59 $19.12 1
21 401386 NUT, (M6) Stainless Steel ACT $5.09 $4.98 2
22 88439A9 CABLE ASSEMBLY, Battery - Positive ACT $44.99 $44.19 1
23 880786 BOOT, Insulator - Red ACT $3.09 $3.01 1
24 893666T03 HARNESS ASSEMBLY, Engine ACT $766.99 $721.20 1
25 832969T20 --FUSE, Mini - Yellow - 20 Ampere 83296920 SS $7.09 $6.93 3
25 832969T25 --FUSE, Mini - Clear - 25 Ampere 83296925 SS $4.69 $4.59 1
25 832969T05 --FUSE, Mini - Tan - 5 Ampere 8329695 SS $6.69 $6.54 1
26 858754 --COVER, Fuse ACT $9.69 $9.46 1
27 883834T01 CABLE ASSEMBLY, Diode 883834A1 SS $64.49 $61.80 1
28 13541 PLUG, Male ACT $3.19 $3.11 1
29 8M0082988 SENSOR 8283582 SS $120.49 $113.48 1
30 40011107 SCREW, (M5 x 16) Stainless Steel ACT $1.80 $1.76 2
31 893640T01 REGULATOR, Voltage ACT $257.49 $242.49 1
32 893771 BRACKET 858413 SS $21.79 $21.36 1
33 8308971 FOAM PAD ACT $5.29 $5.17 1
34 8248329 SCREW, (M6 x 40) ACT $7.49 $7.32 2
35 8M0098207 PRESSURE SWITCH 8280401 SS $35.49 $34.78 1
36 893888T STARTER MOTOR ASSEMBLY (See Breakdown on Starter Motor) 888161T SS $400.49 $382.75 1
36 893888T STARTER MOTOR ASSEMBLY, Complete ACT $400.49 $382.75 1
37 94330 NUT, (.250-20) Brass ACT $1.70 $1.66 1
38 88439A4 CABLE ASSEMBLY, Battery - Negative ACT $47.99 $47.16 1
39 8M0024808 J CLIP 65292 SS $8.19 $8.00 1
40 40011153 SCREW, (M8 x 45) Stainless Steel ACT $5.39 $5.27 3
41 82239312 SCREW, (M5 x 12) ACT $1.10 $1.08 1
42 816311T TIE STRAP, (8.00 Inches) ACT $0.60 $0.59 AR
43 883323001 SPARK PLUG ACT $7.89 $7.71 4
44 897940T01 HARNESS ASSEMBLY, Fuse ACT $58.99 $56.51 1
- 893678T03 POWERHEAD ASSEMBLY 878344T02 SS $4,007.15 $3,673.43 1
