| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

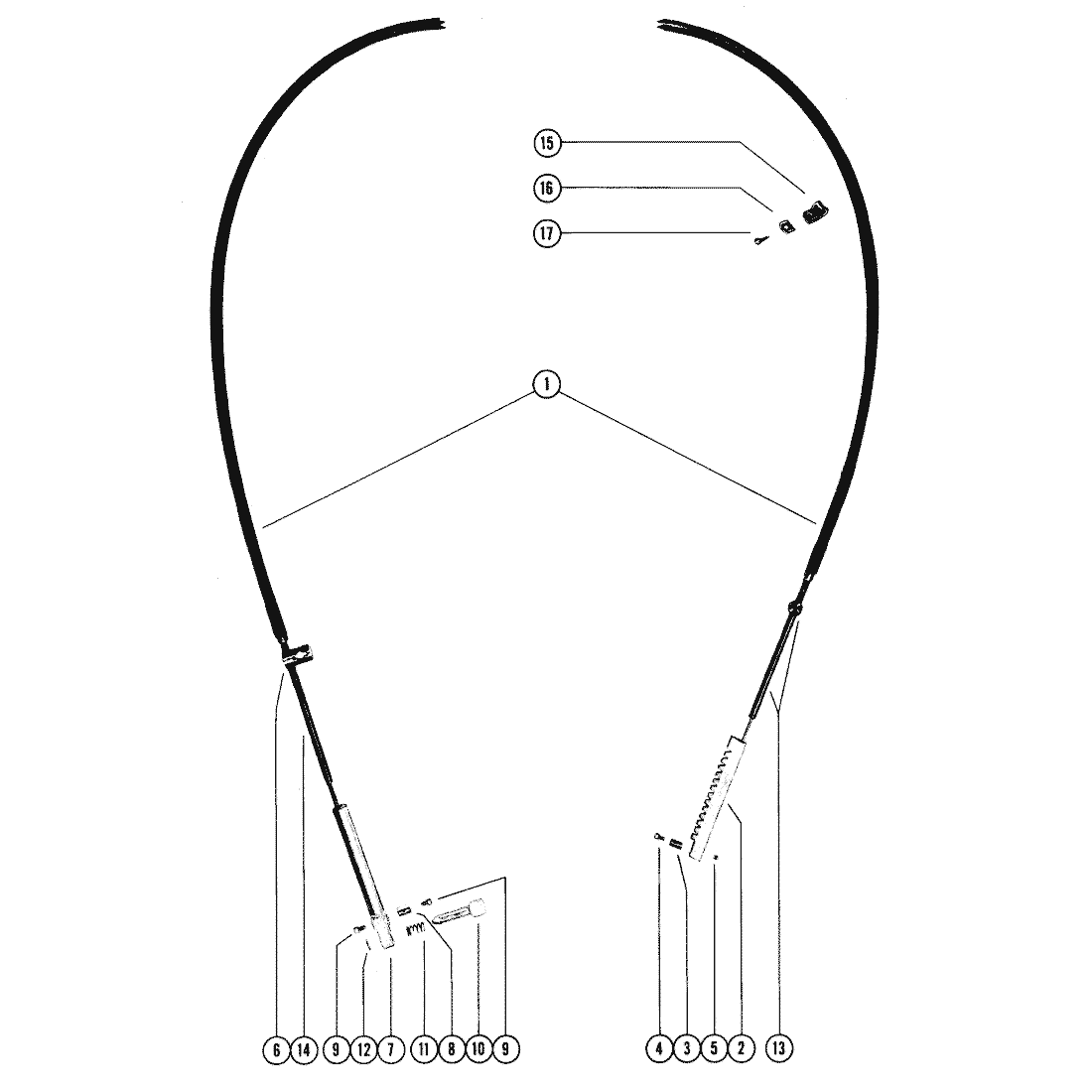

| 1 | NSS | REMOTE CONTROL CABLE ASSEMBLY SEE CABLE LENGTHS LISTED |
|
$0.00 | $0.00 | ,1 | |||
| 1 | NSS | REMOTE CONTROL CABLE ASSEMBLY SEE CABLE LENGTHS LISTED |
|
$0.00 | $0.00 | ,1 | |||
| 2 | 29577 | --GEAR RACK, NYLON (NOT AS SHOWN) | NLA |
|
$0.00 | $0.00 | 1, | ||
| 3 | 20007 | --ANCHOR, CABLE END- GEAR RACK | ACT | $28.67 | $28.15 | 1, | |||
| 4 | 8M0204644 | --SCREW, SET - CABLE END ANCHOR | 20518 | SS |
|
$1.80 | $1.76 | 1, | |
| 5 | 20014 | --SCREW, ALLEN - CABLE END ANCHOR | NLA |
|
$0.00 | $0.00 | 1, | ||
| 6 | 20552 | --CONNECTOR, THROTTLE AND SHIFT | NLA |
|
$11.97 | $11.67 | 1, | ||
| 7 | 8M0204660 | --GUIDE, CABLE CONTROL END | 29880 | SS |
|
$23.74 | $23.33 | 1,1 | |
| 8 | 20007 | --ANCHOR, CABLE END GUIDE | ACT | $28.67 | $28.15 | 1,1 | |||
| 9 | 8M0204644 | --SCREW, SET - CABLE END GUIDE | 20518 | SS |
|
$1.80 | $1.76 | 2,2 | |
| 10 | 29996 | --PIN, CABLE END GUIDE | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 11 | 20099 | --SPRING, CABLE END GUIDE PIN | ACT | $5.50 | $5.37 | 1,1 | |||
| 12 | 23757 | --ROLL PIN, CABLE END GUIDE PIN | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 13 | 29934A1 | --TRUNNION AND INSERT ASSEMBLY (BRASS) | NLA |
|
$0.00 | $0.00 | 1, | ||
| 14 | 29935 | --INSERT, CABLE END TUBE (STEEL) | NLA |
|
$0.00 | $0.00 | 1, | ||
| -- | 38685A1 | --TRUNNION ASSEMBLY, CONTROL END (NYLON) | NLA |
|
$0.00 | $0.00 | ,1 | ||
| 15 | 24836 | --CLIP, CONTROL CABLE TO BOAT | ACT | $4.20 | $4.10 | 1,1 | |||
| 16 | 8M0084613 | --"D" WASHER, CLIP FASTENING SCREW | 22789 | SS |
|
$1.10 | $1.08 | 1,1 | |
| 17 | 22793 | --SCREW, CONTROL CABLE CLIP FASTENING | ACT | $1.20 | $1.18 | 1,1 | |||
| -- | 25260 | INNER WIRE, REMOTE CONTROL CABLE (100 FT.ROLL) | NLA |
|
$0.00 | $0.00 | AR, | ||
| -- | 36201A40 | INNER WIRE, REMOTE CONTROL CABLE (40 FT.)WITH TERMINAL SWEDGED ON END | NLA |
|
$0.00 | $0.00 | ,AR |
