| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

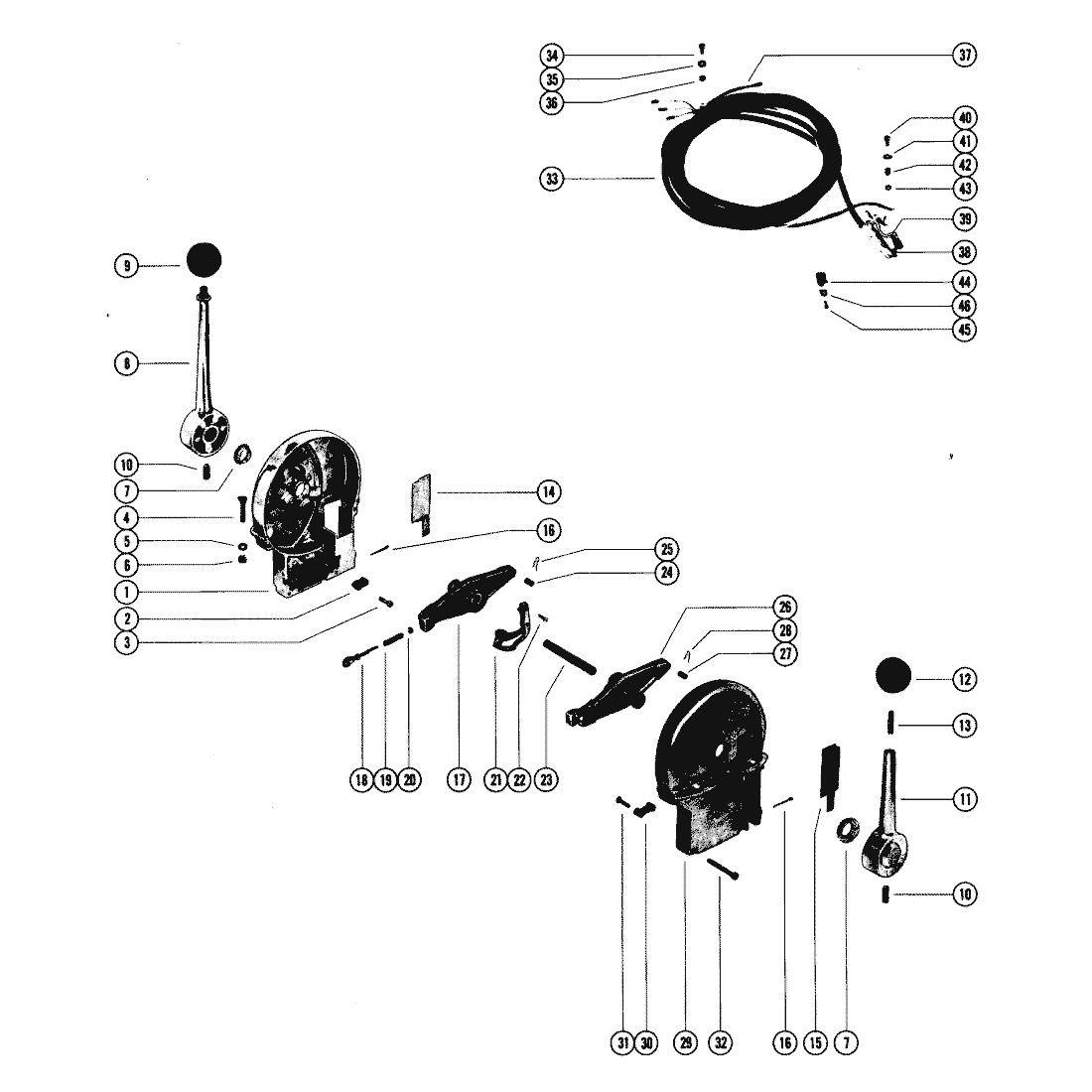

| - | 93800A17 | REMOTE CONTROL ASSEMBLY, TOP MOUNTED - TWO LEVER(SEE NOTE) | 63064A1 | SS |
|
$0.00 | $0.00 | 1 | |
| 1 | 63978 | --HOUSING, REMOTE CONTROL (STARBOARD) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 63973 | --BLOCK, STOP - STARBOARD CONTROL HOUSING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 20668 | --SCREW, STOP BLOCK TO STARBOARD CONTROL HOUSING (7/16") | NLA |
|
$0.00 | $0.00 | 2 | ||
| 4 | 35963 | --SCREW, REMOTE CONTROL TO BOAT (1 1/2") | NLA |
|
$0.00 | $0.00 | 4 | ||
| 5 | 24664 | --WASHER, REMOTE CONTROL SCREW | ACT | $1.40 | $1.37 | 4 | |||
| 6 | 8267089 | --NUT, REMOTE CONTROL SCREW | 20361 | SS |
|
$1.50 | $1.47 | 4 | |
| 7 | 37593 | --BUSHING, NYLON - SHIFT AND THROTTLE LEVERS (11/16" I. D. ) | ACT | $5.94 | $5.83 | 2 | |||
| 8 | 69613 | --HANDLE, THROTTLE | 38369 | SS |
|
$0.00 | $0.00 | 1 | |
| 9 | 38293 | --KNOB, THROTTLE HANDLE (RED) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 37805 | --SCREW, SET - THROTTLE/SHIFT HANDLES TO THROTTLE/SHIFT LEVERS | NLA |
|
$0.00 | $0.00 | 2 | ||
| 11 | 69612 | --HANDLE, SHIFT | 58151 | SS |
|
$0.00 | $0.00 | 1 | |
| 12 | 98530 | --KNOB, SHIFT HANDLE (BLACK) | 37813 | SS |
|
$0.00 | $0.00 | 1 | |
| 13 | 8M0034452 | --STUD, KN OB TO SHIFT HANDLE | 58152 | SS |
|
$12.30 | $12.00 | 1 | |
| 14 | 38749 | --COVER, CONTROL HOUSING (STARBOARD) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 15 | 38750 | --COVER, CONTROL HOUSING (PORT) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 16 | 8M0214922 | --COTTER PIN, CONTROL CABLE TO CONTROL HOUSING | 32857 | SS |
|
$3.80 | $3.71 | 2 | |
| 17 | 57166 | --LEVER, SHIFT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | 39577A2 | --PIN ASSEMBLY, DETENT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 19 | 36244 | ----SPRING, COMPRESSION | 55802 | SS |
|
$0.00 | $0.00 | 1 | |
| 20 | 39317 | ----FASTENER, DETENT PIN | NLA |
|
$0.00 | $0.00 | 1 | ||
| 21 | 63996 | --CAM, SHIFT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 22 | 57300 | --SCREW, SHIFT CAR S | NLA |
|
$0.00 | $0.00 | 3 | ||
| 23 | 38283 | --SHAFT, CONTROL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 24 | 37801 | --PIN, CONTROL CABLE | ACT | $8.34 | $8.19 | 1 | |||
| 25 | 37809 | --PIN, CONTROL CABLE | ACT | $8.23 | $8.06 | 3 | |||
| 26 | 38282 | --LEVER, THROTTLE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 27 | 37801 | --PIN, CONTROL CABLE TO THROTTLE LEVER | ACT | $8.34 | $8.19 | 1 | |||
| 28 | 37809 | --PIN, CONTROL CABLE TO THROTTLE LEVER PIN | ACT | $8.23 | $8.06 | 1 | |||
| 29 | 63977 | --HOUSING, REMOTE CONTROL (PORT) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 30 | 63973 | --BLOCK, STOP - PORT CONTROL HOUSING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 31 | 20668 | --SCREW, STOP BLOCK TO PORT CONTROL HOUSING (7/16") | NLA |
|
$0.00 | $0.00 | 2 | ||
| 32 | 37803 | --SCREW, CONTROL HOUSING CLAMPING (1 3/4") | NLA |
|
$0.00 | $0.00 | 4 | ||
| 33 | 63511A2 | --HARNESS ASSEMBLY, SHIFT CONTROL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 34 | 48591 | --SCREW, CABLE TO SHIFT MOTOR BRACKET (1/2") | NLA |
|
$1.46 | $1.43 | 1 | ||
| 35 | 26996 | --WASHER, SHIFT MOTOR BRACKET SCREW | ACT | $1.20 | $1.18 | 1 | |||
| 36 | 68219 | --NUT, SHIFT MOTOR BRACKET SCREW | 20645 | SS |
|
$3.00 | $2.93 | 1 | |
| 37 | 61601A5 | --CABLE ASSEMBLY, BATTERY (WHITE - 60") | NLA |
|
$0.00 | $0.00 | 1 | ||
| 38 | 63979A5 | --SHIFT AND PLATE ASSEMBLY, SHIFT CONTROL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 39 | 634333 | ----CABLE, SWITCH (YELLOW 3 7/8") | NLA |
|
$0.00 | $0.00 | 1 | ||
| 40 | 21267 | --SCREW, SWITCH AND PLATE TO CONTROL HOUSING ( 1 7/8") | NLA |
|
$0.00 | $0.00 | 3 | ||
| 41 | 26423 | --LOCKWASHER, SWITCHAND PLATE SCREW | NLA |
|
$0.00 | $0.00 | 3 | ||
| 42 | 56639 | --SPACER, SWITCHAND PLATE SCREW | NLA |
|
$0.00 | $0.00 | 3 | ||
| 43 | 55821 | --NUT, SWITCH ANDPLATE SCREW | NLA |
|
$0.00 | $0.00 | 3 | ||
| 44 | 22740 | --CLIP, NYLON - SWITCH HARNESS | ACT | $5.10 | $4.98 | 1 | |||
| 45 | 24880 | --SCREW, HARNESS CLIP ATTACHING (3/8") | NLA |
|
$0.00 | $0.00 | 1 | ||
| 46 | 8M0084613 | --"D" WASHER, HARNESS CLIP SCREW | 22789 | SS |
|
$1.10 | $1.08 | 1 | |
| -- | 55642A13 | --TRIM CONTROL PANEL ASS Y (SEE BREAKDOWN IN MERC. II-TR PARTS LIST) | 55642A3 | SS |
|
$0.00 | $0.00 | 1 |
