| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

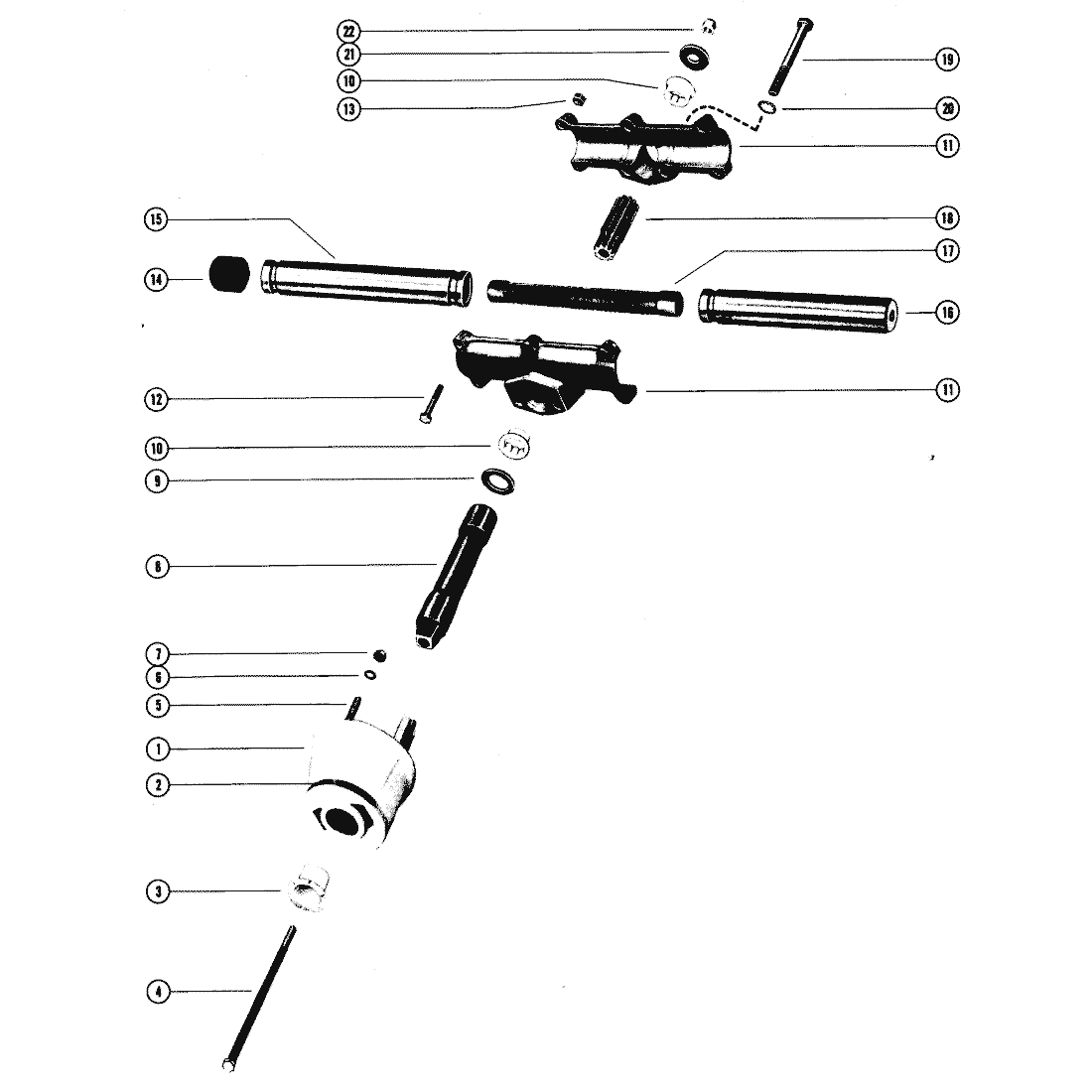

| - | 49003A5 | RIDE-GUIDE STEERING KIT (20 DEGREES) - BLACK | NLA |
|
$0.00 | $0.00 | 1, | ||
| - | 49004A5 | RIDE-GUIDE STEERING KIT (90 DEGREES) - BLACK | NLA |
|
$0.00 | $0.00 | ,1 | ||
| 1 | 490552 | --POST, STEERING WHEEL MOUNTING (20 DEGREES) - BLACK | NLA |
|
$0.00 | $0.00 | 1, | ||
| 1 | 490532 | --POST, STEERING WHEEL MOUNTING (90 DEGREES) - BLACK | NLA |
|
$0.00 | $0.00 | ,1 | ||
| 2 | 32710 | --STRIP, TRIM - STEE RING POST | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 3 | 29097 | --BUS HING, NYLON - STEE RING POST | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 4 | 29223 | --BOLT, STEERING WHEEL TO STEERING POST (10 7/8") | NLA |
|
$0.00 | $0.00 | 1, | ||
| 4 | 29400 | --BOLT, STEERING WHEEL TO STEERING POST (9 7/8") | NLA |
|
$0.00 | $0.00 | ,1 | ||
| 5 | 29208 | --STUD, STEE RING POST TO DASHBOARD (2 1/2 ") | NLA |
|
$0.00 | $0.00 | 3,3 | ||
| 6 | 26825 | --WASHER, STEERING POST STUD | ACT | $1.50 | $1.47 | 3,3 | |||
| 7 | 82670911 | --NUT, STEERING POST STUD | 21528 | SS |
|
$4.99 | $4.88 | 3,3 | |
| 8 | 29220 | --SHAFT, STEERING WHEEL (20 DEGREES) | NLA |
|
$0.00 | $0.00 | 1, | ||
| 8 | 76706 | --SHAFT, STEERING WHEEL (90 DEGREES) | 25890 | SS |
|
$0.00 | $0.00 | ,1 | |
| 9 | 25897 | --WASHER, SHAFT TO GEAR RACK HOUSING (15/16" I. D. ) | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 10 | 25901 | --BUSHING, GEAR RACK HOUSING - SPLINED | NLA |
|
$0.00 | $0.00 | 2,2 | ||
| 11 | 48226 | --HOUSING, GEAR RACK | NLA |
|
$0.00 | $0.00 | 2,2 | ||
| 12 | 20784 | --SCREW, GEAR RACK HOUSING CLAMPING (1 1/2") | NLA |
|
$0.95 | $0.93 | 5,5 | ||
| 13 | 8M0207775 | --NUT, GEAR RACK CLAMPING SCREW | 46887 | SS |
|
$9.09 | $8.88 | 5,5 | |
| 14 | 26059 | --CAP, RUBBER - GEAR RACK TUBE (OPEN END) | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 15 | 25896 | --TUBE, GEAR RACK (OPEN END) | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 16 | 79440A1 | --TUBE, GEAR RACK (CABLE END) | 25895A1 | SS |
|
$0.00 | $0.00 | 1,1 | |
| 17 | 25887 | --RACK, GEAR | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 18 | 25898 | --PINION, GEAR RACK | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 19 | 48236 | --SCREW, GEAR RACK HOUSING CLAMPING (3 1/4") | NLA |
|
$0.00 | $0.00 | 2,2 | ||
| 20 | 48300 | --LOCKWASHER, GEAR RACK CLAMPING SCREW | NLA |
|
$0.00 | $0.00 | 2,2 | ||
| 21 | 48241 | --WASHER, LOWER - HOUSING BOLT (13/32 ")(I. D. ) | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 22 | 23161 | --NUT,STEERING WHEEL TO HOUSING BOLT | ACT | $2.89 | $2.82 | 1,1 |
