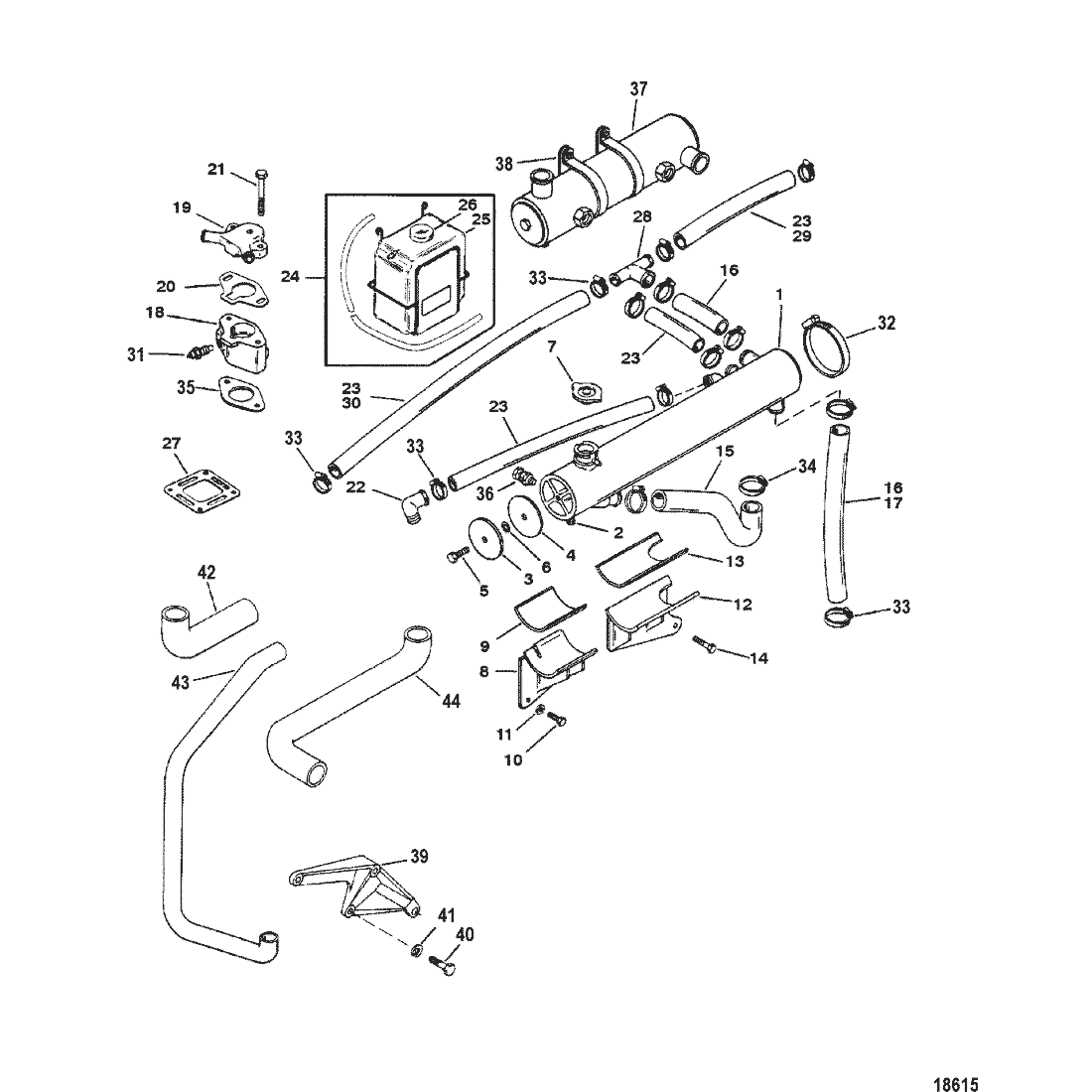

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| - | 18390A6 | CLOSED COOLING SYSTEM | NLA |  | $2,326.84 | $2,069.60 | 1 | ||
| - | 18390A8 | CLOSED COOLING SYSTEM | NLA | | $1,688.66 | $1,501.94 | 1 | ||
| 1 | 18390T | --RESERVOIR | ACT | | $1,585.64 | $1,453.60 | 1 | ||
| 2 | 36382 | ----FITTING, (.250-18 x .62) Brass | ACT | $5.30 | $5.17 | 1 | |||
| 3 | 8M0036623 | ----COVER, Heat Exchanger End | 814875 | SS | | $100.75 | $94.88 | 2 | |
| 4 | 8M0036987 | ----GASKET, End Cover | 814876 | SS | | $21.08 | $20.71 | 2 | |
| 5 | 94247 | ----BOLT | 814877 | NLA | | $1.40 | $1.37 | 2 | |
| 6 | 8M0039163 | ----O-RING, Special | 814878 | SS | | $8.50 | $8.29 | 2 | |
| 7 | 808108 | ----CAP | 814879 | SS | | $31.33 | $30.77 | 1 | |
| 8 | 18421A2 | --BRACKET | 18421A1 | SS | | $506.00 | $466.35 | 1 | |
| 9 | 18431 | ----PAD | ACT | $33.67 | $33.06 | 1 | |||
| 10 | 47462 | --SCREW, (.437-14 x 1.250) | ACT | $1.70 | $1.66 | 1 | |||
| 11 | 32993 | --LOCKWASHER, (.437) | ACT | $1.60 | $1.57 | 1 | |||
| 12 | 18423A2 | --BRACKET, Port | 18423A1 | SS | | $502.01 | $462.65 | 1 | |
| 13 | 18429 | ----PAD | NLA | | $41.16 | $40.34 | 1 | ||
| 14 | 32132 | --SCREW, (.375-16 x 1.750) | ACT | $2.90 | $2.83 | 2 | |||
| 15 | 184272 | --HOSE | NLA | | $21.17 | $20.66 | 1 | ||
| 16 | 8M0062665 | --HOSE, (48.00 Inches Bulk) | 5346170 | SS | | $91.17 | $87.69 | 1 | |
| 17 | 816284 | --HOSE | NLA | | $156.52 | $144.80 | 1 | ||
| 18 | 55131A5 | --HOUSING ASSEMBLY, Thermostat | ACT | | $379.57 | $362.82 | 1 | ||
| 19 | 97428T2 | ----COVER, Thermostat | NLA | | $53.08 | $51.08 | 1 | ||
| 20 | 488181 | --GASKET | ACT | $2.89 | $2.82 | 1 | |||
| 21 | 48115 | --SCREW, (.375-16 x 3.50) | NLA | | $2.11 | $2.06 | 2 | ||
| 22 | 36305T | --ELBOW, (90 Degrees) | 36305 | SS | | $37.83 | $37.15 | 2 | |
| 23 | 8M0062614 | --HOSE, (48.00 Inches Bulk) | 3322070 | SS | | $68.33 | $65.73 | 2 | |
| 24 | 71587A10 | --RECOVERY KIT, Coolant (Components parts can be purchased locally.) | ACT | | $93.50 | $89.93 | 1 | ||
| 25 | 71587A11 | ----BOTTLE, Plastic | ACT | | $71.83 | $69.09 | 1 | ||
| 26 | 72058 | ------CAP | ACT | $10.90 | $10.63 | 1 | |||
| 27 | 8637251 | --GASKET | 41811 | SS | | $18.89 | $18.43 | 2 | |
| 28 | 55133 | --TEE | 55133T | SS | | $41.71 | $40.66 | 1 | |
| 29 | 8174391 | --HOSE | NLA | | $15.52 | $15.14 | 1 | ||
| 30 | 8174393 | --HOSE | NLA | | $20.08 | $19.58 | 1 | ||
| 31 | 86080 | --SWITCH, Temperature | ACT | $116.92 | $110.11 | 1 | |||
| 32 | 815504372 | --CLAMP, Worm Gear | ACT | $15.90 | $15.51 | AR | |||
| 33 | 815504220 | --CLAMP, Worm Gear | ACT | $7.30 | $7.12 | AR | |||
| 34 | 815504232 | --CLAMP, Worm Gear (2.50 Diameter) | ACT | $8.60 | $8.39 | AR | |||
| 35 | 530451 | --GASKET | ACT | $5.50 | $5.37 | 1 | |||
| 36 | 818390 | --DRAIN COCK | ACT | $19.58 | $19.23 | 1 | |||
| 37 | 814863T | --COOLER, Oil | NLA | | $528.31 | $486.86 | 1 | ||
| 38 | 814858 | --CLIP | NLA | | $6.80 | $6.64 | 2 | ||
| 39 | 806394A1 | --BRACKET | 96116A1 | SS | | $248.51 | $234.02 | 1 | |
| 40 | 37612 | --SCREW, (.375-16 x 1.250) | ACT | | $2.40 | $2.35 | 1 | ||
| 41 | 35048 | --LOCKWASHER, (.375) | ACT | | $1.20 | $1.18 | 3 | ||
| 42 | 8162611 | --HOSE | NLA | | $10.51 | $10.26 | 1 | ||
| 43 | 897491 | --HOSE | ACT | | $67.58 | $65.01 | 1 | ||
| 44 | 19081 | --HOSE | NLA | | $27.04 | $26.37 | 1 |
