Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

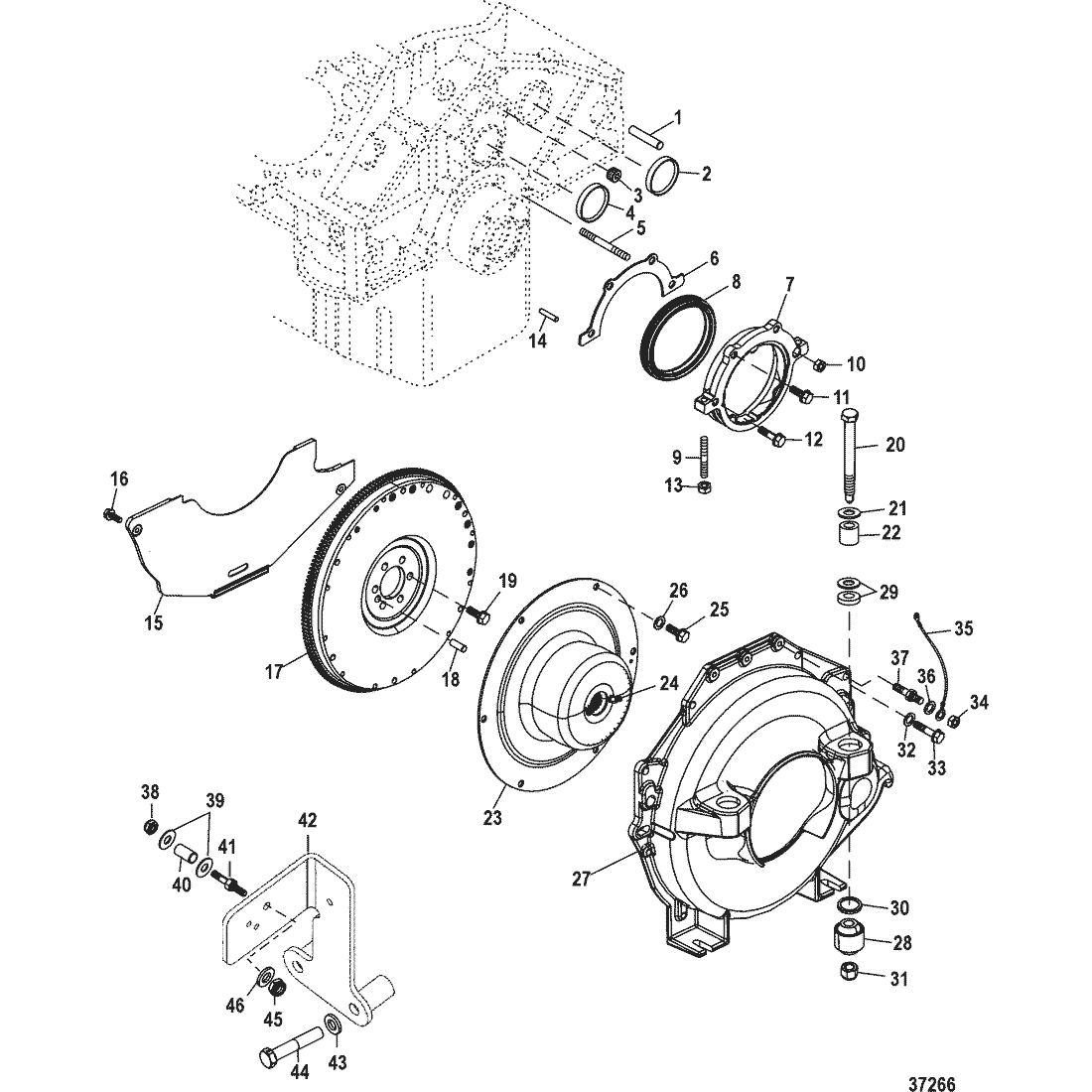

1 8M0092110 PIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing Location 843379 NLA $4.10 $4.00 2
2 34270 EXPANSION PLUG, (1.625), Engine Core Hole ACT $9.80 $9.56 8
3 8M0204652 PLUG, (.250-18 x .41), Oil Galley 48340 SS $6.80 $6.64 4
4 72640 PLUG, Expansion, Camshaft Bearing Hole ACT $14.20 $13.85 1
5 14827 STUD, (.250-20 x 2.180) ACT $17.83 $17.52 2
6 881715 GASKET, Crankshaft Oil Seal Housing ACT $19.90 $19.41 1
7 852940 HOUSING ASSEMBLY, With Studs, Crankshaft Oil Seal ACT $231.74 $218.24 1
8 852941 --SEAL, Crankshaft Oil ACT $145.75 $137.26 1
9 11989 --STUD, (.312-18 x 1.6718) ACT $15.39 $15.02 2
10 8M0098315 NUT 8167301 SS $4.20 $4.10 1
11 14242 BOLT, (.250-20 x .875) ACT $23.58 $23.15 2
12 8M0064241 BOLT, (.250-20 x 1.750) 14243 SS $5.70 $5.56 1
13 8M0148822 NUT, (.312-18) 11971 SS $16.70 $16.29 2
14 14263 PIN, Dowel, Oil Seal Housing Locating ACT $6.80 $6.64 1
15 807260A2 COVER KIT, Flywheel ACT $96.50 $92.82 1
NS 807296 --NUT, (.250-20) ACT $2.81 $2.75 2
16 76596 --SCREW, (.250-20 x 1.250) ACT $2.50 $2.44 2
17 8M0047213 FLYWHEEL 9520001 SS $929.36 $874.34 1
18 43504 PIN, Dowel, Flywheel ACT $10.70 $10.44 2
19 8M0214958 SCREW, (.437-20 x 1.00) 845757 SS $5.90 $5.76 6
20 8M0215010 SCREW, (.500-20 x 5.370) Special 97934 SS $6.00 $5.86 2
21 35777 WASHER, (.5156 x 1.375 x .125) Aluminum ACT $2.60 $2.54 2
22 99299 SPACER, (.520 x .870 x .630) ACT $7.50 $7.32 2
23 8M0098796 COUPLER ASSEMBLY, Engine - Long Steel Hub 861523A7 SS $1,049.99 $962.56 1
24 8M0169589 --FITTING, Grease 74036 SS $4.80 $4.69 1
25 863480 --SCREW, (.375-16 x 1.125) ACT $3.80 $3.71 6
26 20572 --WASHER, (.390 x .750 x .093) ACT $1.60 $1.57 6
27 865657A04 HOUSING ASSEMBLY, Flywheel ACT $1,095.79 $1,004.53 1
28 865330A02 --MOUNT KIT, Rubber ACT $165.58 $155.93 2
29 892619A01 ----SHIM KIT ACT $18.30 $17.85 2
30 99322 ----SPACER ACT $6.70 $6.54 2
31 863332 NUT, (.500-20) Aluminum ACT $7.20 $7.03 2
32 20572 WASHER, (.390 x .750 x .093) ACT $1.60 $1.57 1
33 37612 SCREW, (.375-16 x 1.250) ACT $2.50 $2.44 3
33 32132 SCREW, (.375-16 x 1.750) ACT $3.00 $2.93 1
34 32219 NUT, (.375-16) ACT $2.81 $2.75 2
35 62826T06 CABLE ASSEMBLY, Ground (13.00 Inches) Black 62826A6 SS $16.92 $16.62 2
36 35048 LOCKWASHER, (.375) ACT $1.20 $1.18 2
37 861316 STUD ACT $15.10 $14.73 2
38 826709109 NUT, (.250-28) Stainless Steel ACT $3.60 $3.52 1
39 69056 WASHER, (.255 x .620 x .030) Stainless Steel ACT $1.80 $1.76 2
40 31866 SPACER, (.256 x .313 x .625) ACT $5.70 $5.56 1
41 8M0113178 STUD, (.250-28 x 2.00) 96112 SS $3.10 $3.03 1
42 841261T BRACKET NLA $0.00 $0.00 1
43 8M0214963 WASHER, (.406 x .750 x .105) Stainless Steel 856774 SS $2.60 $2.54 2
44 358701 SCREW, (.375-16 x 2.00) ACT $32.58 $32.00 2
45 35888 NUT, (.250-28) Stainless Steel ACT $6.90 $6.73 1
46 846673 WASHER, (.265 x .500 x .060) Stainless Steel ACT $1.10 $1.08 1
- 807670A02 GASKET SET, Engine Overhaul NLA $0.00 $0.00 1
- 879147R55 LONGBLOCK ASSEMBLY NLA $0.00 $0.00 1
