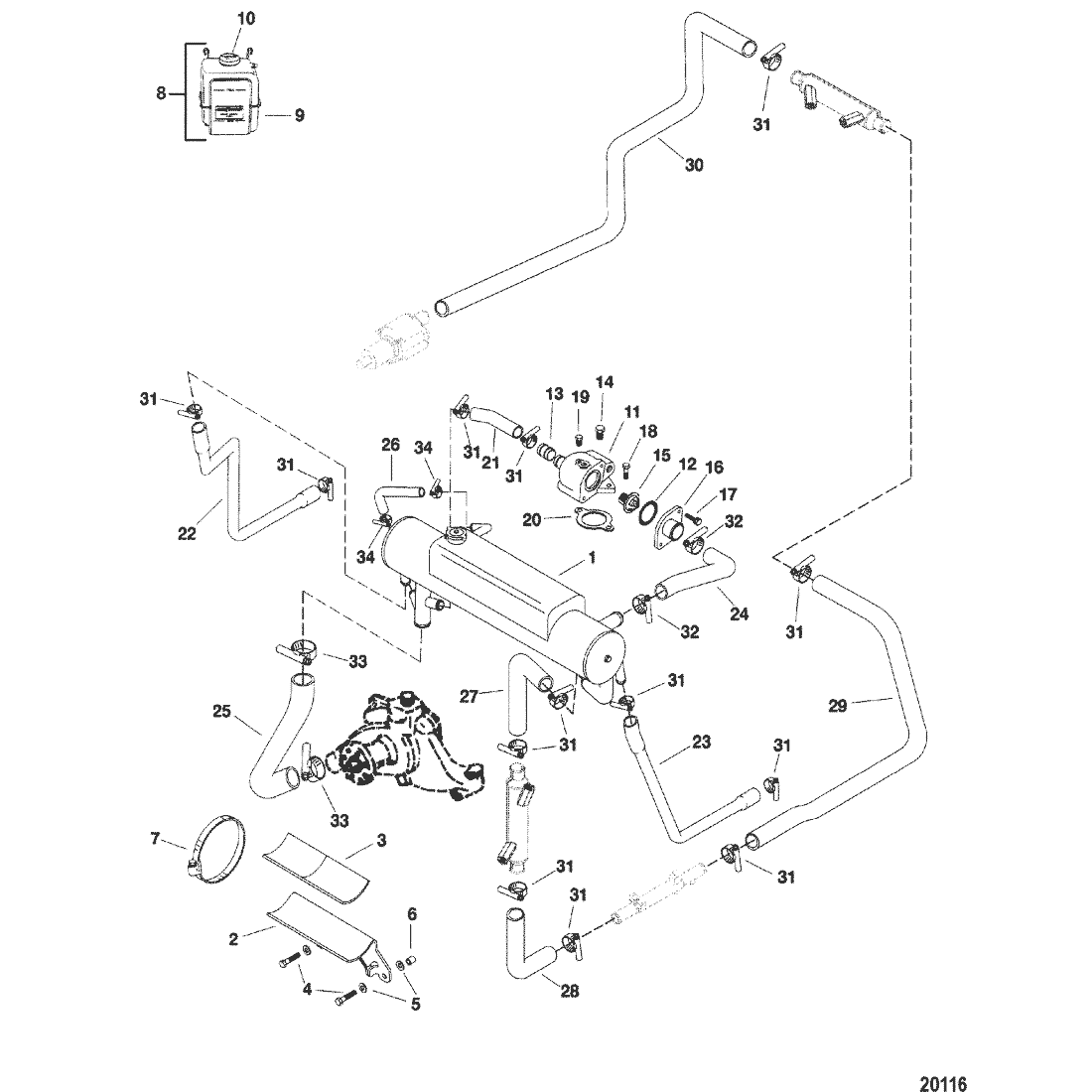

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 807400A1 | HEAT EXCHANGER | ACT |
|
$2,310.29 | $2,117.89 | 1 | ||
| NS | 8M0036623 | --COVER, Heat Exchanger End | 814875 | SS |
|
$104.75 | $98.65 | 2 | |
| NS | 8M0036987 | --GASKET | 803644 | SS |
|
$21.92 | $21.54 | 2 | |
| NS | 94247 | --BOLT | 814877 | NLA |
|
$1.50 | $1.47 | 2 | |
| NS | 8M0039163 | --O-RING, Special | 814878 | SS |
|
$8.80 | $8.59 | 2 | |
| NS | 8148791 | --CAP | ACT | $60.17 | $57.87 | 1 | |||
| 2 | 860092A1 | BRACKET ASSEMBLY, Heat Exchanger | ACT |
|
$77.25 | $74.17 | 1 | ||
| 3 | 18431 | --PAD | ACT | $35.00 | $34.37 | 2 | |||
| 4 | 91903 | SCREW, (.437-14 x 1.750) | ACT | $4.80 | $4.69 | 1 | |||
| 4 | 47461 | SCREW, (.437-14 x 1.00) | ACT | $2.30 | $2.25 | 1 | |||
| 5 | 31263 | WASHER | ACT | $1.00 | $0.98 | 4 | |||
| 6 | 905201 | SPACER, (.750 x .250) | ACT | $7.40 | $7.22 | 2 | |||
| 7 | 815504388 | CLAMP, Worm Gear | ACT | $25.82 | $25.37 | 2 | |||
| 8 | 71587A10 | RECOVERY KIT, Coolant | ACT |
|
$97.25 | $93.54 | 1 | ||
| NS | 774572 | --HOSE, (48.00 Inches Bulk) | ACT | $70.25 | $67.57 | 1 | |||
| 9 | 71587A11 | --BOTTLE, Plastic | ACT |
|
$74.67 | $71.82 | 1 | ||
| 10 | 72058 | ----CAP | ACT | $11.30 | $11.02 | 1 | |||
| 11 | 861188A1 | HOUSING ASSEMBLY, Thermostat | ACT |
|
$329.34 | $310.14 | 1 | ||
| 12 | 8071341 | --SEAL | ACT | $15.60 | $15.22 | 1 | |||
| 13 | 52020 | --SLEEVE, Hose | NLA |
|
$0.00 | $0.00 | 1 | ||
| 14 | 8M0180565 | --PLUG, Pipe (.375-18) Brass | 32803 | SS |
|
$8.01 | $7.81 | 1 | |
| 15 | 991551 | THERMOSTAT | ACT | $41.59 | $40.83 | 1 | |||
| 16 | 807075A1 | COVER | ACT | $230.08 | $216.67 | 1 | |||
| 17 | 29198 | SCREW AND LOCKWASHER, (.312-18 x .875) | ACT | $4.60 | $4.49 | 2 | |||
| 18 | 8M0113180 | SCREW, (.375-16 x 1.00) | 98794 | SS |
|
$5.10 | $4.98 | 2 | |
| 19 | 328022 | PLUG, Pipe (.125-27) Brass | ACT | $7.59 | $7.42 | 1 | |||
| 20 | 530451 | GASKET | ACT | $5.70 | $5.56 | 1 | |||
| 21 | 807271 | HOSE | ACT | $73.25 | $70.46 | 1 | |||
| 22 | 861306 | HOSE | ACT | $64.00 | $61.56 | 1 | |||
| 23 | 807141 | HOSE | ACT | $62.33 | $59.96 | 1 | |||
| 24 | 807137 | HOSE, Thermostat Housing To Heat Exchanger | ACT | $49.58 | $48.67 | 1 | |||
| 25 | 8M0158499 | HOSE | 805138 | SS |
|
$58.25 | $56.03 | 1 | |
| 26 | 99520 | HOSE | ACT | $27.33 | $26.84 | 1 | |||
| 27 | 807406 | HOSE | ACT | $38.17 | $37.48 | 1 | |||
| 28 | 71613 | HOSE | 807989 | NLA |
|
$72.42 | $69.66 | 1 | |
| 28 | 71613 | HOSE | 807989 | NLA |
|
$72.42 | $69.66 | 1 | |
| 29 | 808045 | HOSE, Fuel Cooler to Transmission Oil Cooler | ACT | $61.83 | $59.48 | 1 | |||
| 30 | 808044 | HOSE, Molded | ACT | $94.58 | $90.98 | 1 | |||
| 31 | 815504216 | CLAMP, Worm Gear (1.56 Diameter) | ACT | $18.70 | $18.24 | 6 | |||
| 32 | 8M0188622 | CLAMP, Worm Gear (1.98 DIameter) | 815504222 | SS |
|
$5.70 | $5.56 | 2 | |
| 33 | 815504232 | CLAMP, Worm Gear (2.50 Diameter) | ACT | $8.90 | $8.68 | 2 | |||
| 34 | 815504212 | CLAMP, Worm Gear | ACT | $5.90 | $5.76 | 2 | |||
| NS | 8M0074364 | COVER, Hose Clamp End | 8079923 | SS |
|
$3.30 | $3.22 | AR | |
| - | 811572A94 | GASKET SET, Overhaul | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 805396A92 | GASKET SET, Overhaul | NLA |
|
$0.00 | $0.00 | 1 |
