| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

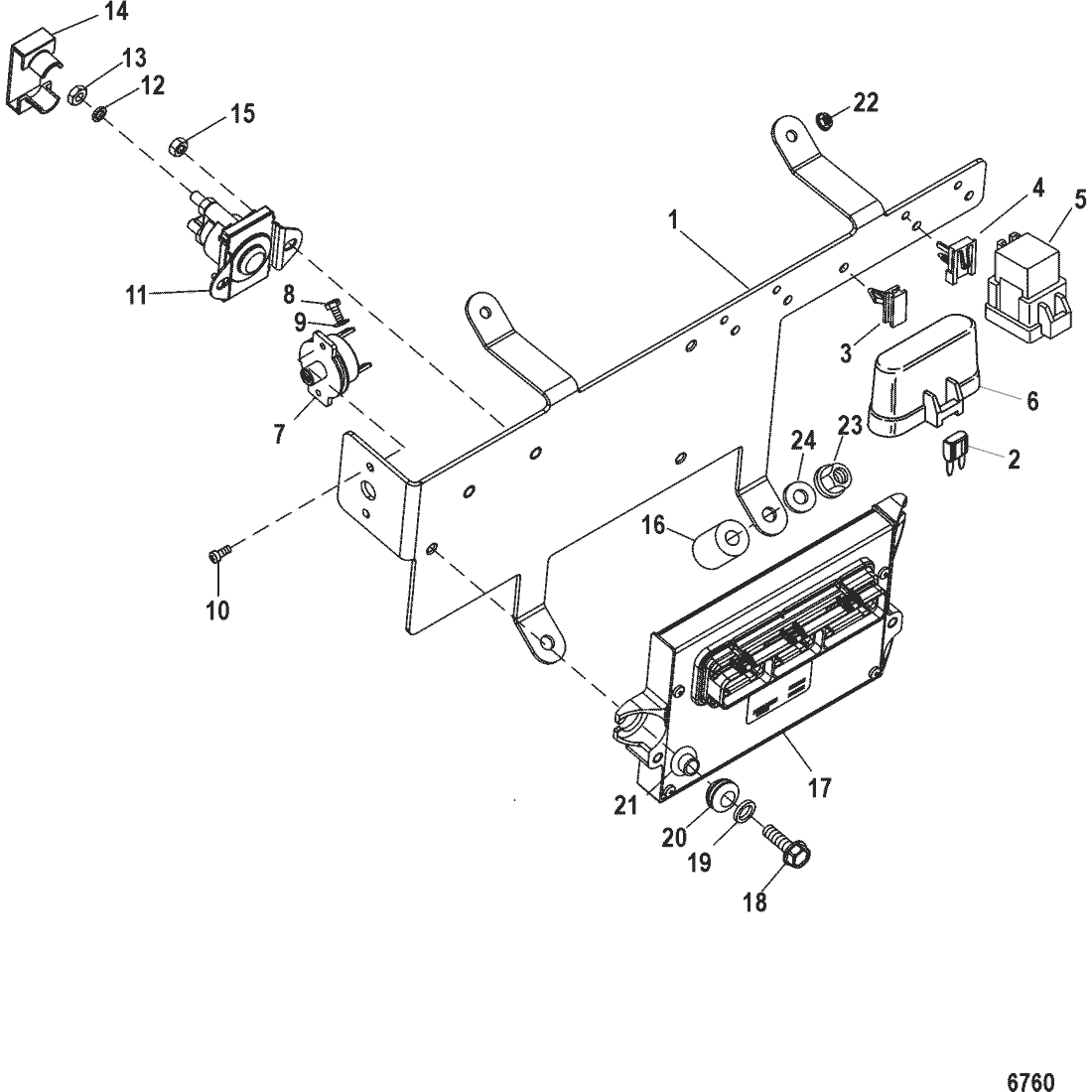

| NS | 865457A02 | HARNESS ASSEMBLY, Wiring, Engine | ACT |
|
$2,481.07 | $2,274.45 | 1 | ||
| NS | 865458A01 | HARNESS ASSEMBLY, Wiring, Engine | ACT |
|
$720.50 | $677.85 | 1 | ||
| 1 | 862539T01 | BRACKET, PCM | ACT | $66.67 | $64.13 | 1 | |||
| 2 | 832969T20 | FUSE, Mini - Yellow - 20 Ampere | 83296920 | SS |
|
$6.60 | $6.44 | 3 | |
| 3 | 865205 | CLIP, Fuse Block Mounting | 804351 | SS |
|
$3.00 | $2.93 | 1 | |
| 4 | 804352 | CLIP, Relay Mounting | ACT | $1.80 | $1.76 | 3 | |||
| 5 | 8M0210756 | RELAY (Mechanical Throttle and Shift) | 807057T | SS |
|
$44.99 | $44.03 | 3 | |
| 5 | 8M0210756 | RELAY (Digital Throttle and Shift) | 807057T | SS |
|
$44.99 | $44.03 | 4 | |
| 6 | 883562 | COVER, Fuse | ACT | $15.60 | $15.22 | 1 | |||
| 7 | 11178A01 | BREAKER, Circuit - 50 Ampere | 806950 | NLA |
|
$121.49 | $113.00 | 1 | |
| 8 | 68513 | --SCREW, (#10-32 x .375) Stainless Steel | ACT | $1.40 | $1.37 | 2 | |||
| 9 | 26996 | --LOCKWASHER, (#10) Stainless Steel, Split Lock | ACT | $1.20 | $1.18 | 2 | |||
| 10 | 57583T | SCREW, (#8-32 x .375) | 57583 | SS |
|
$1.40 | $1.37 | 2 | |
| 11 | 8M0185622 | SOLENOID | 96158T | SS |
|
$39.99 | $39.43 | 1 | |
| NS | 26419 | --NUT, (#8-32) Brass | ACT | $1.70 | $1.66 | 2 | |||
| NS | 26996 | --LOCKWASHER, (#10) Stainless Steel, Split Lock | ACT | $1.20 | $1.18 | 2 | |||
| 12 | 26992 | LOCKWASHER, (.250) Stainless Steel, Split Lock | ACT | $1.20 | $1.18 | 2 | |||
| 13 | 94330 | NUT, (.250-20) Brass | ACT | $1.70 | $1.66 | 2 | |||
| 14 | 97861 | INSULATOR, Solenoid | ACT | $5.20 | $5.08 | 1 | |||
| 15 | 400212 | NUT, (M6) Stainless Steel | ACT | $2.90 | $2.83 | 2 | |||
| 16 | 862995 | SPACER | ACT | $12.10 | $11.80 | 1 | |||
| 17 | 865365T02 | PCM, Propulsion Control Module, Base | 865365T01 | SS |
|
$2,867.28 | $2,628.50 | 1 | |
| 17 | 864733T03 | PCM, Propulsion Control Module, Base | ACT |
|
$2,635.71 | $2,416.22 | 1 | ||
| 17 | 865367T02 | PCM, Propulsion Control Module, H.O. | 865367T01 | SS |
|
$2,867.28 | $2,628.50 | 1 | |
| 17 | 864734T02 | PCM, Propulsion Control Module, H.O. | ACT |
|
$2,635.71 | $2,416.22 | 1 | ||
| 18 | 82130025 | SCREW, (M6 x 25) | ACT | $4.10 | $4.00 | 3 | |||
| 19 | 856954 | BUSHING, Electrical Plate | ACT | $7.00 | $6.83 | 3 | |||
| 20 | 8M0190980 | GROMMET | 834985 | SS |
|
$3.60 | $3.52 | 3 | |
| 21 | 65567 | WASHER, (.265 x .750 x .048) Stainless Steel | ACT | $2.90 | $2.83 | 3 | |||
| 22 | 4002030 | NUT, (M8) | ACT | $7.59 | $7.42 | 2 | |||
| 23 | 802751 | NUT | 863289 | NLA |
|
$11.10 | $10.83 | 2 | |
| 24 | 8M0207778 | WASHER | 12038 | SS |
|
$10.10 | $9.85 | 2 |
