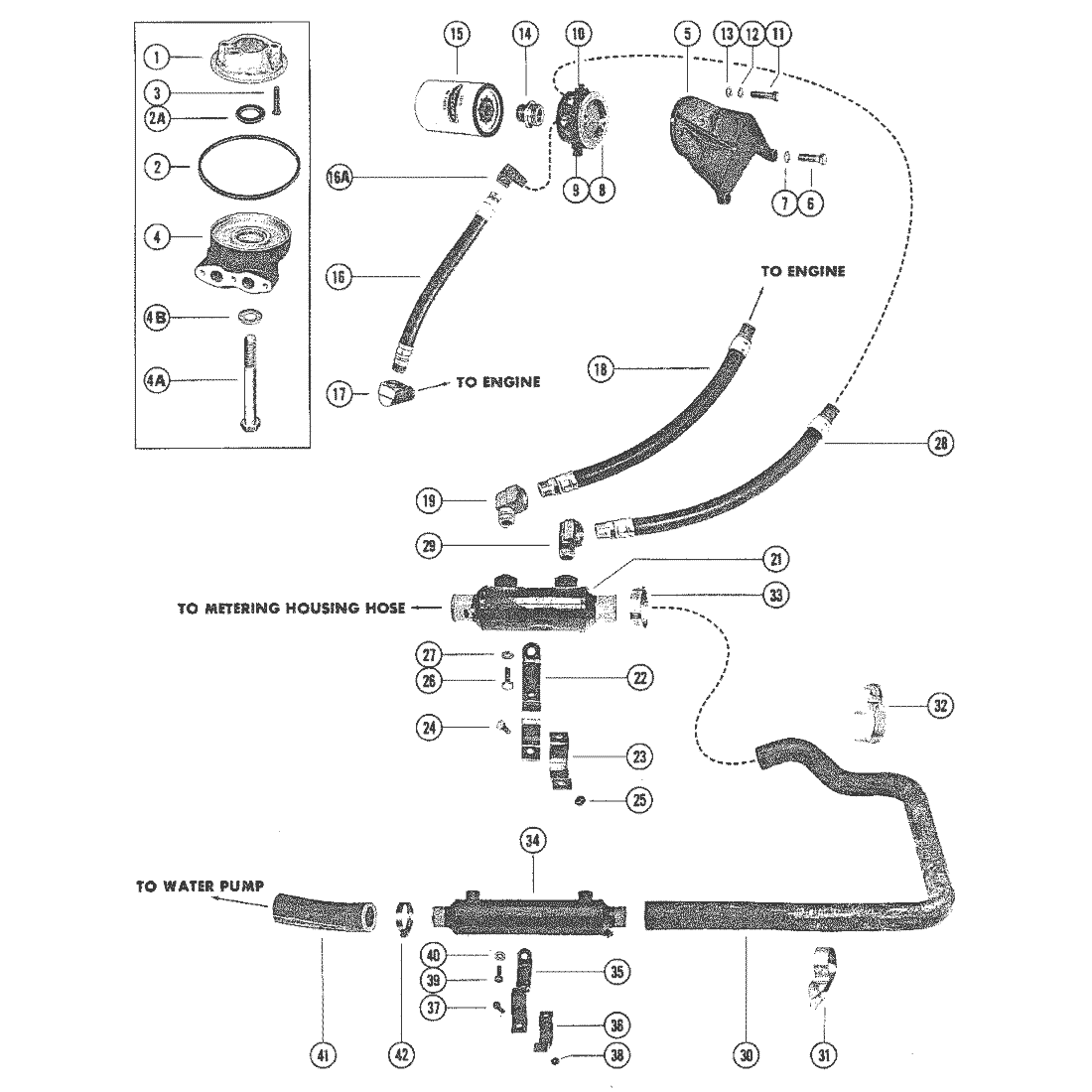

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 54785 | ADAPTOR AND VALVE ASSEMBLY | NLA |  | $9.92 | $9.74 | 1 | ||
| 2 | 33756 | RING, SEALING - ADAPTOR AND VALVE ASSEMBLY | ACT | $17.30 | $16.87 | 1 | |||
| 2A | 73522 | SEAL, ADAPTOR | NLA | | $8.69 | $8.49 | 1 | ||
| 3 | 54786 | SCREW, ADAPTOR TO ENGINE | ACT | $17.50 | $17.19 | 2 | |||
| 4 | 76792 | ADAPTOR | NLA | | $44.63 | $43.76 | 1 | ||
| 4A | 47409 | SCREW, ADAPTOR ATTACHING | NLA | | $2.21 | $2.16 | 1 | ||
| 4B | 47523 | WASHER, ADAPTOR SCREW | NLA | | $13.57 | $13.23 | 1 | ||
| 5 | 73867 | BRACKET, MOUNTING - OIL FILTER | NLA | | $130.88 | $123.26 | 1 | ||
| 5 | 78610A1 | ADAPTOR ASSEMBLY, OIL FILTER | NLA | | $233.84 | $220.21 | 1 | ||
| 6 | 48424 | SCREW, MOUNTING ENGINE TO BRACKET (3/8 - 16 X 5/8") | ACT | $2.90 | $2.83 | 2 | |||
| 7 | 35048 | LOCKWASHER, MOUNTING ENGINE TO BRACKET SCREW | ACT | $1.20 | $1.18 | 2 | |||
| 8 | 48504T2 | ADAPTOR, OIL FILTER | 48504A2 | SS | | $535.80 | $504.09 | 1 | |
| 9 | 8M0204657 | PLUG, PIPE - OIL FILTER ADAPTOR (3/8-18) | 36373 | SS | | $5.50 | $5.37 | 1 | |
| 10 | 328022 | PLUG, PIPE - OIL FILTER ADAPTOR (1/8-27) | 32802 | SS | | $7.30 | $7.12 | 1 | |
| 11 | 20359 | SCREW, OIL FILTER ADAPTOR ATTACHING (1") | ACT | | $1.70 | $1.66 | 2 | ||
| 12 | 35048 | LOCKWASHER, OIL FILTER ADAPTOR SCREW | 37459 | SS | | $1.20 | $1.18 | 2 | |
| 13 | 20086 | WASHER, OIL FILTER ADAPTOR SCREW | ACT | $1.60 | $1.57 | 2 | |||
| 14 | 805632 | FITTING, OIL FILTER TO ADAPTOR | 32720 | SS | | $32.33 | $31.75 | 1 | |
| 15 | 866340Q03 | OIL FILTER | 52731 | SS | | $13.69 | $13.36 | 1 | |
| 16 | 4824231 | HOSE, OIL FILTER ADAPTOR TO ENGINE (15") | 48946 | SS | | $41.37 | $40.35 | 1 | |
| 16A | 71923 | ELBOW, HOSE TO ADAPTOR (45 ) | NLA | | $30.08 | $29.33 | 1 | ||
| 16 | 489442 | HOSE, ADAPTOR TO ENGINE (13 1/2") | NLA | | $20.74 | $20.33 | 1 | ||
| 17 | 48246 | ELBOW, HOSE TO ENGINE (90 ) | ACT | $35.58 | $34.94 | 1 | |||
| 18 | 9235738 | HOSE, OIL COOLER TO ENGINE (11") | 489447 | SS | | $59.67 | $57.41 | 1 | |
| 19 | 63825 | ELBOW, HOSE TO OIL COOLER (90 ) | ACT | $39.75 | $39.04 | 1 | |||
| 21 | 63831A3 | OIL COOLER (5") | 63831 | SS | | $550.79 | $518.18 | 1 | |
| 22 | 63820T | BRACKET, OIL COOLER CLAMPING (LONG) | 638201 | SS | | $26.92 | $26.43 | 1 | |
| 23 | 56328A1 | BRACKET, OIL COOLER CLAMPING (SHORT) | 56328 | SS | | $23.33 | $22.92 | 1 | |
| 24 | 69028 | SCREW, CLAMPING BRACKET (3/4") | ACT | $2.80 | $2.74 | 2 | |||
| 25 | 30506 | NUT, CLAMPING BRACKET SCREW | ACT | $3.10 | $3.03 | 2 | |||
| 26 | 47277 | SCREW, OIL COOLER BRACKKET TO ENGINE (3/4") | ACT | $1.20 | $1.18 | 1 | |||
| 27 | 26825 | WASHER, OIL COOLER BRACKET SCREW | ACT | $1.40 | $1.37 | 1 | |||
| 28 | 9235759 | HOSE, ADAPTOR TO OIL COOLER (30") | 489446 | SS | | $178.58 | $168.18 | 1 | |
| 28 | 9235759 | HOSE, ADAPTOR TO OIL COOLER (34") | 4894410 | SS | | $178.58 | $168.18 | 1 | |
| 29 | 63825 | ELBOW, HOSE TO OIL COOLER (90 ) | ACT | $39.75 | $39.04 | 1 | |||
| 30 | 63829 | HOSE, MOLDED - OIL COOLER TO OIL COOLER | ACT | $109.50 | $103.12 | 1 | |||
| 31 | 64489 | CLAMP, MOLDED HOSE TO FLYWHEEL HOUSING (PORT) | NLA | | $21.04 | $20.52 | 1 | ||
| 32 | 47715 | CLAMP, MOLDED HOSE TO FLYWHEEL HOUSING (STARBOARD) | NLA | | $9.10 | $8.88 | 1 | ||
| 33 | 815504220 | CLAMP, MOLDED HOSE ATTACHING | 32780 | SS | | $7.30 | $7.12 | 2 | |
| 34 | 63832A1 | OIL COOLER (9") | 638321 | SS | | $685.64 | $645.06 | 1 | |
| 34 | 63832T | OIL COOLER (12") - V-DRIVE ONLY | 638322 | SS | | $655.79 | $616.97 | 1 | |
| 35 | 63820T | BRACKET, OIL COOLER CLAMPING (LONG) | 638201 | SS | | $26.92 | $26.43 | 1 | |
| 36 | 56328A1 | BRACKET, OIL COOLER CLAMPING (SHORT) | 56328 | SS | | $23.33 | $22.92 | 1 | |
| 37 | 69028 | SCREW, CLAMPING BRACKET (3/4") | ACT | $2.80 | $2.74 | 2 | |||
| 38 | 30506 | NUT, CLAMPING BRACKET SCREW | ACT | $3.10 | $3.03 | 2 | |||
| 39 | 47258 | SCREW, OIL COOLER BRACKET TO ENGINE (5/8") | NLA | | $0.59 | $0.58 | 1 | ||
| 40 | 8M0204647 | LOCKWASHER, OIL COOLER BRACKET SCREW | 26993 | SS | | $1.70 | $1.66 | 1 | |
| 41 | 8M0062665 | HOSE, OIL COOLER TO PICKUP WATER PUMP (8") | 54862 | SS | | $91.17 | $87.69 | 1 | |
| 42 | 815504220 | CLAMP, HOSE ATTACHING | 32780 | SS | | $7.30 | $7.12 | 2 |
