| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

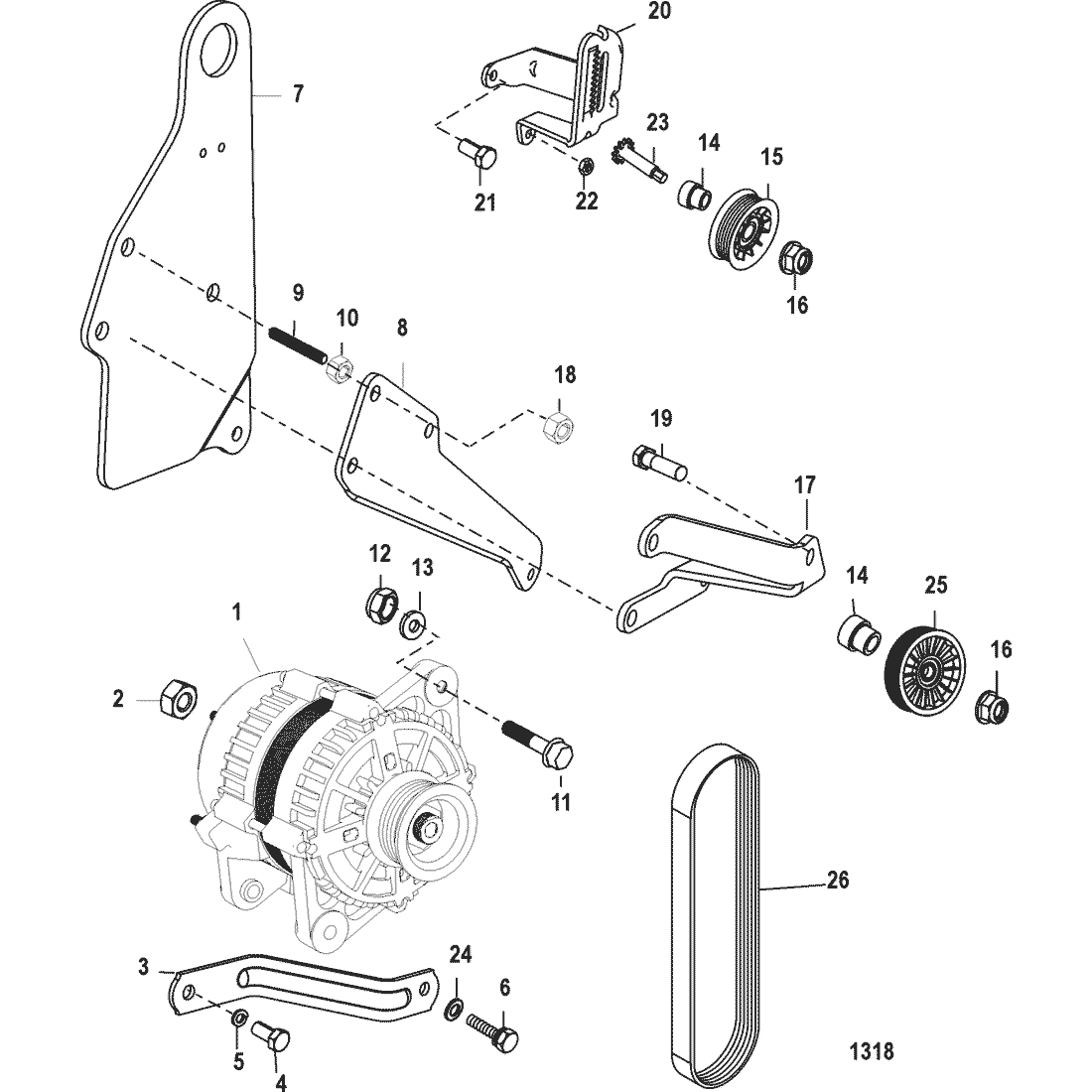

| 1 | 863077T | ALTERNATOR ASSEMBLY, Black (65 Amp) (50mm Pulley) | ACT |
|
$396.99 | $396.49 | 1 | ||
| 2 | 400212 | --NUT, (M6) Stainless Steel | ACT | $2.89 | $2.82 | 2 | |||
| 3 | 807750T | BRACE | ACT | $40.99 | $40.18 | 1 | |||
| 4 | 98261 | SCREW, (.375-16 x .750) | ACT | $1.20 | $1.18 | 1 | |||
| 5 | 35048 | LOCKWASHER, (.375) | ACT | $1.20 | $1.18 | 1 | |||
| 6 | 40001134 | SCREW, (M8 x 25) | ACT | $1.00 | $0.98 | 1 | |||
| 7 | 862051T | BRACKET, Alternator and Lifting Eye | ACT | $71.99 | $67.81 | 1 | |||
| 8 | 862058T | BRACE, Alternator | ACT | $63.49 | $59.57 | 1 | |||
| 9 | 862615 | STUD, (.375-16 x 2.25) | ACT | $2.39 | $2.33 | 3 | |||
| 10 | 32219 | NUT, (.375-16) | ACT | $2.79 | $2.72 | 3 | |||
| 11 | 828213 | SCREW, (.312-18 x 1.500) Hex Flange | ACT | $1.80 | $1.76 | 2 | |||
| 12 | 8M0204646 | NUT, (.312-18) | 859119 | SS |
|
$4.99 | $4.88 | 2 | |
| 13 | 57792 | WASHER | ACT | $1.40 | $1.37 | 2 | |||
| 14 | 865193 | BUSHING | ACT | $7.59 | $7.42 | 2 | |||
| 15 | 865444T | PULLEY, (3.50 Inch Diameter) | ACT | $65.49 | $61.45 | 2 | |||
| 15 | 807757T | PULLEY ASSEMBLY, Idler - Black (3.00 Inch Diameter) | ACT | $59.99 | $56.35 | 2 | |||
| 16 | 859135 | NUT, (.437-20) Brass/Nickel Plated | ACT | $6.09 | $5.95 | 2 | |||
| 17 | 807753T1 | BRACKET, Idler | ACT | $59.99 | $56.27 | 1 | |||
| 18 | 32219 | NUT, (.375-16) | ACT | $2.79 | $2.72 | 3 | |||
| 19 | 816601 | SCREW, (.437-20 x 1.500) | ACT | $4.99 | $4.88 | 1 | |||
| 20 | 807767T | BRACKET, Idler Adjustment | ACT | $79.99 | $75.35 | 1 | |||
| 21 | 98261 | SCREW, (.375-16 x .750) | ACT | $1.20 | $1.18 | 1 | |||
| 22 | 29250 | NUT, (.312-24) | ACT | $2.89 | $2.82 | 1 | |||
| 23 | 8M0113182 | PINION STUD, (.437-20) Stainless Steel | 8183812 | SS |
|
$22.49 | $22.02 | 1 | |
| 24 | 20084 | WASHER, (.328 x .562 x .062) | ACT | $2.97 | $2.92 | 1 | |||
| 25 | 864625T | PULLEY (4.25 Inch Diameter) | ACT | $65.49 | $61.63 | 1 | |||
| 26 | 865615Q05 | BELT, Serpentine | 865423005 | SS |
|
$123.49 | $111.34 | 1 |
