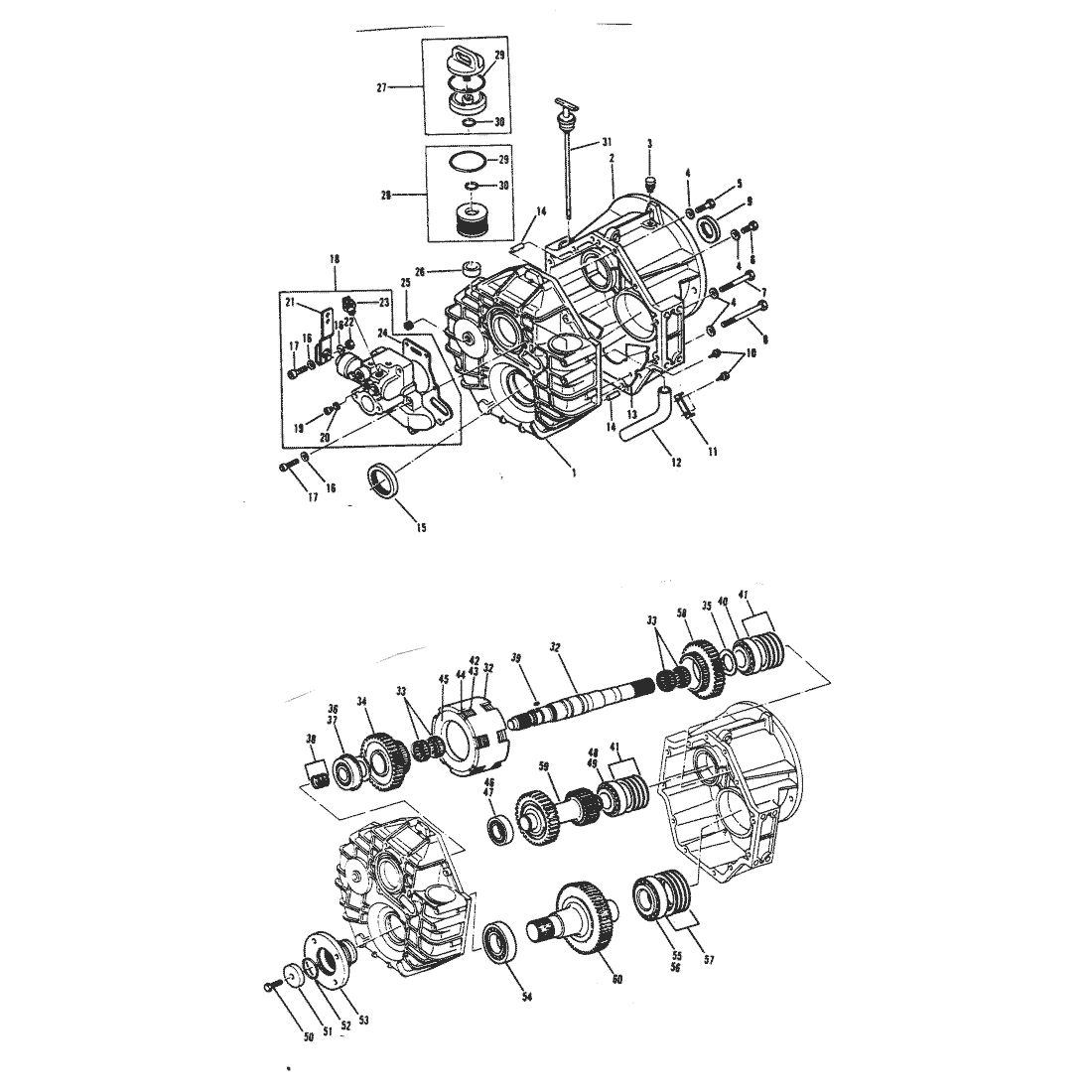

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| - | 8M0188308 | TRANSMISSION ASSEMBLY (1.5:1 RATIO) | 18900A1 | SS |  | $5,968.75 | $5,634.51 | 1 | |
| - | 863744T3 | TRANSMISSION ASSEMBLY (2.0:0 RATIO) | 18901A1 | SS | | $5,049.71 | $4,629.18 | 1 | |
| - | 8M0168266 | TRANSMISSION ASSEMBLY (2.5:1 RATIO) | 18902A1 | SS | | $4,136.50 | $3,792.02 | 1 | |
| 1 | 813278 | --HOUSING | NLA | | $1,034.67 | $920.28 | 1 | ||
| 2 | 813279 | --COVER | NLA | | $1,198.16 | $1,065.69 | 1 | ||
| 3 | 813280 | --CAP-Vent | ACT | $72.00 | $69.25 | 1 | |||
| 4 | 813281 | --LOCKWASHER | NLA | | $0.58 | $0.57 | 12 | ||
| 5 | 813282 | --SCREW | NLA | | $3.61 | $3.52 | 5 | ||
| 6 | 813283 | --SCREW | NLA | | $4.57 | $4.45 | 1 | ||
| 7 | 813284 | --SCREW | NLA | | $3.36 | $3.28 | 4 | ||
| 8 | 813285 | --SCREW | NLA | | $9.03 | $8.82 | 2 | ||
| 9 | 813286 | --SEAL-Oil | ACT | $98.83 | $95.06 | 1 | |||
| 10 | 813287 | --SCREW | NLA | | $1.89 | $1.85 | 4 | ||
| 11 | 813288 | --PLATE-Retaining | NLA | | $9.40 | $9.21 | 1 | ||
| 12 | 813289 | --HOSE | NLA | | $49.93 | $48.68 | 1 | ||
| 13 | 813290 | --PLATE-Baffle | NLA | | $58.85 | $56.62 | 1 | ||
| 14 | 813291 | --PIN-Dowel | NLA | | $8.82 | $8.60 | 2 | ||
| 15 | 813292 | --SEAL-Oil | ACT | $110.42 | $103.98 | 1 | |||
| 16 | 813293 | --LOCKWASHER | NLA | | $1.16 | $1.14 | 7 | ||
| 17 | 813294 | --SCREW | NLA | | $5.67 | $5.54 | 7 | ||
| 18 | 813295 | --BLOCK ASSEMBLY-Control | NLA | | $2,917.50 | $2,674.54 | 1 | ||
| 19 | 813296 | ----SCREW | NLA | | $9.24 | $9.02 | 1 | ||
| 20 | 813297 | ----WASHER | NLA | | $1.58 | $1.55 | 1 | ||
| 21 | 813298 | ----LEVER-Shift | NLA | | $84.16 | $80.94 | 1 | ||
| 22 | 813299 | ----NUT | NLA | | $0.79 | $0.78 | 1 | ||
| 23 | 813300 | ----SWITCH-Neutral Safety | ACT | $176.58 | $166.29 | 1 | |||
| 24 | 813301 | ----GASKET | ACT | $58.83 | $56.59 | 1 | |||
| 25 | 813302 | --PLUG | NLA | | $4.73 | $4.61 | 1 | ||
| 26 | 813303 | --WASHER | NLA | | $5.78 | $5.64 | 1 | ||
| 27 | 811940 | --CAP Kit | NLA | | $262.71 | $247.42 | 1 | ||
| 28 | 879194241 | --FILTER KIT-Fluid | 815419 | SS | | $175.99 | $165.67 | 1 | |
| 29 | 813407 | ----O-RING | ACT | $23.25 | $22.83 | 1 | |||
| 30 | 813406 | ----O-RING | NLA | | $4.20 | $4.10 | 1 | ||
| 31 | 813305 | --DIPSTICK | NLA | | $173.86 | $163.74 | 1 | ||
| - | 8M0188308 | TRANSMISSION ASSEMBLY (1.5:1 RATIO) | 18900A1 | SS | | $5,968.75 | $5,634.51 | 1 | |
| - | 863744T3 | TRANSMISSION ASSEMBLY (2.0:0 RATIO) | 18901A1 | SS | | $5,049.71 | $4,629.18 | 1 | |
| - | 8M0168266 | TRANSMISSION ASSEMBLY (2.5:1 RATIO) | 18902A1 | SS | | $4,136.50 | $3,792.02 | 1 | |
| 32 | 813306 | --INPUT SHAFT | NLA | | $1,939.67 | $1,725.22 | 1 | ||
| 33 | 813307 | --BEARING-Roller | NLA | | $44.00 | $42.91 | 4 | ||
| 34 | 813308 | --GEAR | NLA | | $792.17 | $730.05 | 1 | ||
| 35 | 813309 | --WASHER | NLA | | $54.97 | $52.22 | 2 | ||
| 36 | 852066 | --BEARING-Tapered Roller (INNER) | 813310 | SS | | $190.59 | $176.29 | 1 | |
| 37 | 852066 | --BEARING-Tapered Roller (OUTER) | 813311 | NLA | | $190.59 | $176.29 | 1 | |
| 38 | 813312 | --SNAP RING | NLA | | $59.76 | $56.76 | 3 | ||
| 39 | 813313 | --KEY | NLA | | $2.36 | $2.31 | 1 | ||
| 40 | 813314 | --BEARING-Ball | NLA | | $173.09 | $160.10 | 1 | ||
| 41 | 813315 | --SHIM (.10MM) | NLA | | $10.08 | $9.85 | 1 | ||
| 41 | 813316 | --SHIM (.15MM) | NLA | | $17.17 | $16.76 | 1 | ||
| 41 | 813317 | --SHIM (.20MM) | NLA | | $24.06 | $23.44 | 1 | ||
| 41 | 813318 | --SHIM (.50MM) | NLA | | $10.76 | $10.50 | 1 | ||
| 42 | 813319 | --DISC-Inner Clutch | NLA | | $214.55 | $202.05 | 4 | ||
| 43 | 813320 | --DISC-Outer Clutch | NLA | | $123.55 | $116.35 | 5 | ||
| 44 | 813321 | --SNAP RING | NLA | | $85.37 | $80.91 | 2 | ||
| 45 | 813322 | --PRESSURE DISC | NLA | | $225.65 | $212.50 | 2 | ||
| 46 | 813323 | --BEARING-Tapered Roller (INNER) | NLA | | $62.63 | $59.51 | 1 | ||
| 47 | 813324 | --BEARING-Tapered Roller (OUTER) | NLA | | $30.50 | $29.95 | 1 | ||
| 48 | 813325 | --BEARING-Tapered Roller (INNER) | NLA | | $66.78 | $63.45 | 1 | ||
| 49 | 813326 | --BEARING-Tapered Roller (OUTER) | NLA | | $52.55 | $49.92 | 1 | ||
| 50 | 813327 | --SCREW | NLA | | $7.46 | $7.28 | 1 | ||
| 51 | 813328 | --SPACER | NLA | | $19.32 | $18.97 | 1 | ||
| 52 | 813329 | --O-RING | NLA | | $8.40 | $8.20 | 1 | ||
| 53 | 813330 | --FLANGE-Output | NLA | | $361.25 | $340.18 | 1 | ||
| 54 | 813331 | --BEARING-Tapered Roller | NLA | | $133.19 | $123.22 | 1 | ||
| 55 | 813332 | --BEARING-Tapered Roller (INNER) | NLA | | $161.18 | $149.12 | 1 | ||
| 56 | 813333 | --BEARING-Tapered Roller (OUTER) | NLA | | $103.85 | $96.06 | 1 | ||
| 57 | 813334 | --SHIM (.10MM) | NLA | | $5.91 | $5.76 | 1 | ||
| 57 | 813335 | --SHIM (.15MM) | NLA | | $10.17 | $9.93 | 1 | ||
| 57 | 813336 | --SHIM (.30MM) | NLA | | $9.44 | $9.19 | 1 | ||
| 57 | 813337 | --SHIM (.50MM) | NLA | | $11.97 | $11.69 | 1 | ||
| 58 | 813338 | --GEAR | NLA | | $696.83 | $642.21 | 1 | ||
| 59 | 813339 | --SHAFT-Intermediate | NLA | | $957.23 | $882.19 | 1 | ||
| 60 | 813340 | --OUTPUT SHAFT | NLA | | $1,130.75 | $1,005.74 | 1 | ||
| 58 | 813341 | --GEAR | NLA | | $795.38 | $733.03 | 1 | ||
| 59 | 813342 | --SHAFT-Intermediate | NLA | | $957.23 | $882.19 | 1 | ||
| 60 | 813343 | --OUTPUT SHAFT | NLA | | $1,130.75 | $1,005.74 | 1 | ||
| 58 | 813344 | --GEAR | NLA | | $696.47 | $641.87 | 1 | ||
| 59 | 813345 | --SHAFT-Intermediate | NLA | | $1,286.41 | $1,144.18 | 1 | ||
| 60 | 813346 | --OUTPUT SHAFT | NLA | | $1,245.62 | $1,107.91 | 1 |
