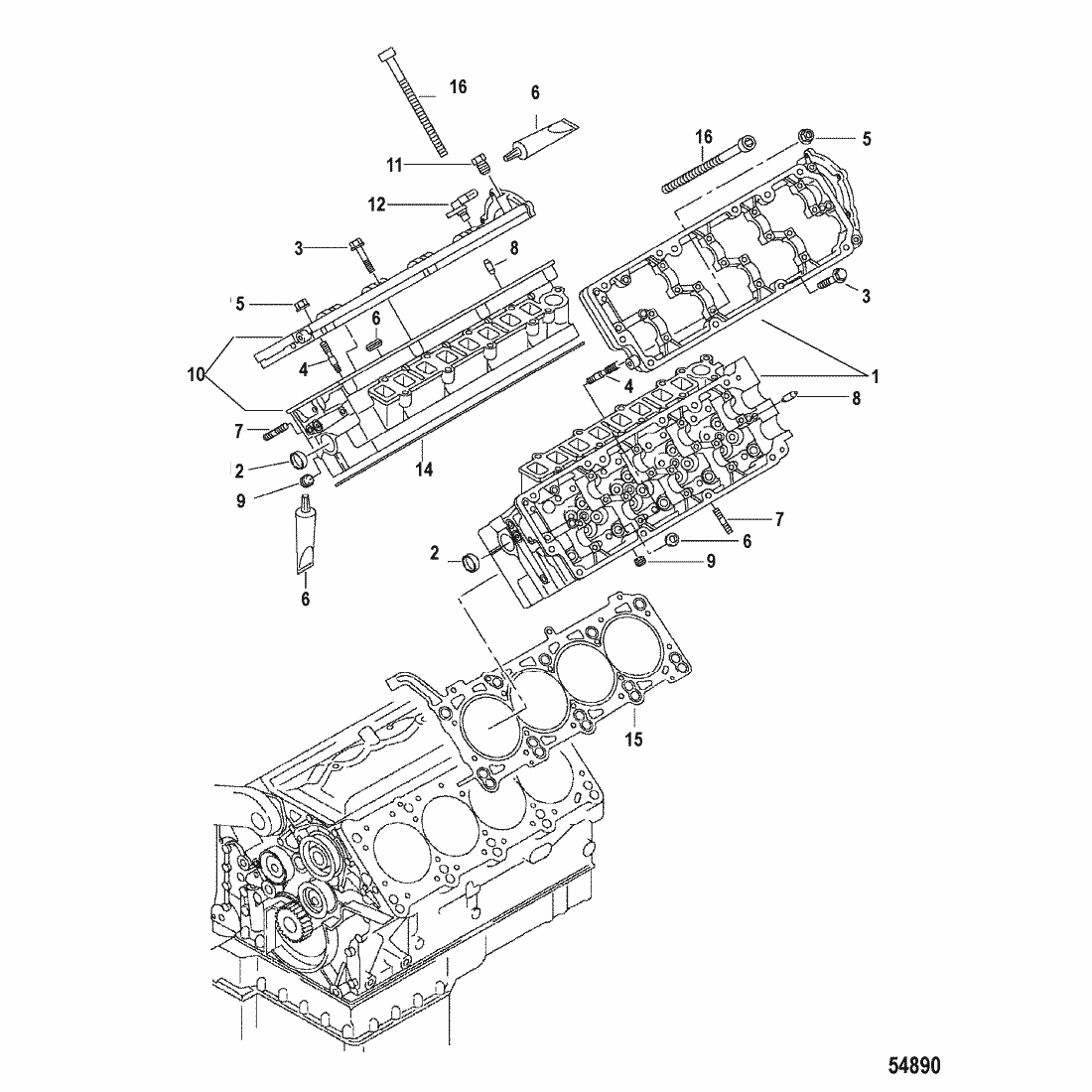

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0108924 | CYLINDER HEAD ASSEMBLY, Port | 8M0055805 | SS |  | $9,720.00 | $9,022.11 | 1 | |
| 2 | 8M0068107 | --PLUG, 28 | ACT | $2.30 | $2.25 | 2 | |||
| 3 | 8M0068252 | --SCREW , M6x32 | ACT | $0.90 | $0.88 | 28 | |||
| 5 | 8M0068423 | --NUT, M6 | ACT | $1.30 | $1.27 | 16 | |||
| 6 | 8M0066547 | --WASHER | ACT | $5.00 | $4.88 | 20 | |||
| 7 | 8M0068198 | --STUD , M8x40 | ACT | $2.80 | $2.74 | 20 | |||
| 8 | NSS | --NOT SOLD SEPARATE | | $0.00 | $0.00 | 4 | |||
| 9 | 8M0068281 | --PLUG, Pipe | ACT | $2.20 | $2.15 | 2 | |||
| 10 | 8M0108925 | CYLINDER HEAD ASSEMBLY, Starboard, Also Includes Items 2-9 | 8M0055804 | SS | | $7,416.00 | $6,883.54 | 1 | |
| 11 | 8M0068561 | --PLUG, Pipe | ACT | $4.30 | $4.20 | 1 | |||
| 12 | 8M0067252 | --SENSOR | ACT | $85.92 | $82.64 | 1 | |||
| 13 | 8M0099608 | SEALANT, 80 ml | 8M0068047 | SS | | $31.01 | $30.46 | AR | |
| 14 | 8M0055582 | GASKET, (1.10 MM), Cylinder Head | ACT | $102.25 | $96.29 | 1 | |||
| 14 | 8M0055583 | GASKET, (1.15 MM), Cylinder Head | ACT | $113.33 | $106.73 | 1 | |||
| 14 | 8M0055584 | GASKET, (1.20 MM), Cylinder Head | ACT | $124.67 | $117.40 | 1 | |||
| 15 | 8M0055585 | GASKET, (1.10 MM), Cylinder Head | ACT | $102.25 | $96.29 | 1 | |||
| 15 | 8M0055586 | GASKET, (1.15 MM), Cylinder Head | ACT | $113.33 | $106.73 | 1 | |||
| 15 | 8M0055587 | GASKET, (1.20 MM), Cylinder Head | ACT | $111.58 | $105.08 | 1 | |||
| 16 | 8M0066422 | SCREW , M12x1.5x159 | ACT | $17.10 | $16.68 | 20 |
