| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

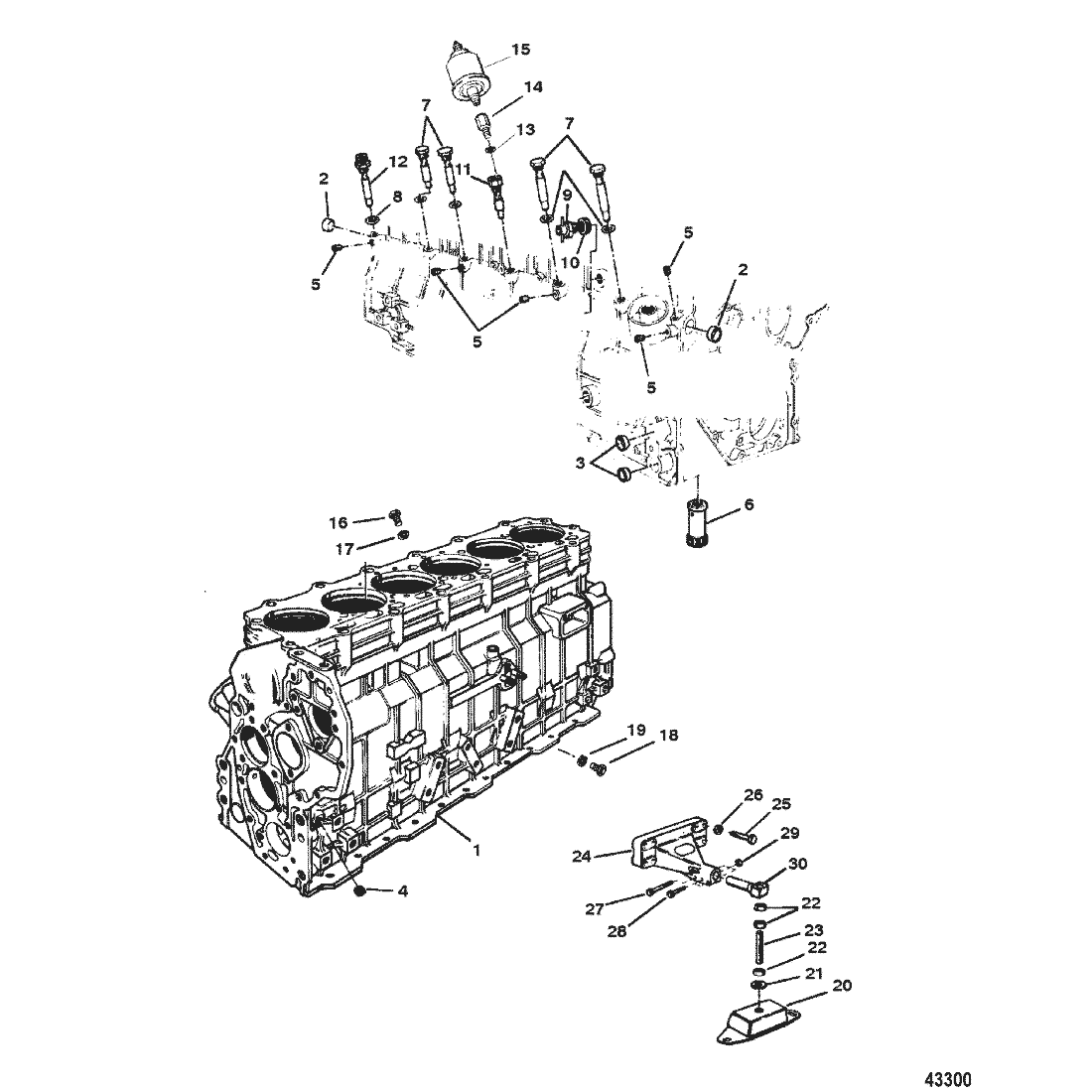

| 1 | 816801 | CYLINDER BLOCK | NLA |
|
$0.00 | $0.00 | 1 | ||
| 1 | 854040001 | CYLINDER BLOCK | 854040 | SS |
|
$2,599.43 | $2,382.95 | 1 | |
| 2 | 801331602 | --PLUG, Expansion | ACT | $3.10 | $3.03 | 2 | |||
| 3 | 809937241 | --PLUG | ACT | $3.10 | $3.03 | 2 | |||
| 4 | 811375 | --PLUG | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 811431 | --SET SCREW, (M6 x 3) | ACT | $1.80 | $1.76 | 5 | |||
| 6 | 854041 | VALVE, Oil Pressure | ACT | $112.76 | $106.18 | 1 | |||
| 7 | 801331650 | SCREW, Locating | ACT |
|
$18.67 | $18.33 | 3 | ||
| 7 | 801331651 | SCREW | ACT |
|
$32.42 | $31.83 | 1 | ||
| 8 | 889153 | WASHER | 809963201 | SS |
|
$4.60 | $4.49 | 6 | |
| 8 | 881791 | WASHER | ACT |
|
$3.10 | $3.03 | 2 | ||
| 9 | 801331684 | FITTING, Drain | ACT | $29.08 | $28.56 | 1 | |||
| 10 | 811428 | SLEEVE | ACT | $16.50 | $16.09 | 1 | |||
| 11 | 801763388 | CONNECTOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12 | 801331651 | SCREW | ACT |
|
$32.42 | $31.83 | 1 | ||
| 12 | 8M0159757 | ADAPTOR | 855463 | SS |
|
$8.90 | $8.68 | 1 | |
| 13 | 881791 | WASHER | 809963072 | SS |
|
$3.10 | $3.03 | 1 | |
| 14 | 806443 | ADAPTOR | ACT | $29.92 | $29.38 | 1 | |||
| 15 | 805267T | SENDER, Oil Pressure | ACT |
|
$85.92 | $82.64 | 1 | ||
| 15 | 805268 | SENDER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 16 | 4000357 | SCREW, (M8 x 45) | ACT | $4.99 | $4.88 | 1 | |||
| 17 | 8M0204690 | WASHER, (.344 x .688 x .065) Stainless Steel | 814806 | SS |
|
$1.80 | $1.76 | 1 | |
| 18 | 4000374 | SCREW, (M10 x 16) | ACT | $6.20 | $6.05 | 1 | |||
| 19 | 400258 | LOCKWASHER, (M10) Stainless Steel | ACT | $1.50 | $1.47 | 1 | |||
| 20 | 8M0165927 | MOUNT, Engine | 855381 | SS |
|
$371.83 | $350.16 | 2 | |
| 21 | 809931094 | --WASHER | ACT | $1.10 | $1.08 | 2 | |||
| 22 | 809921102 | --NUT, (M16) | ACT | $0.50 | $0.49 | 6 | |||
| 23 | 801763908 | --STUD, (M16 x 125) | ACT | $20.70 | $20.19 | 2 | |||
| 24 | 801761382 | BRACKET | NLA |
|
$0.00 | $0.00 | 2 | ||
| 25 | 809913859 | SCREW (50MM) | NLA |
|
$0.00 | $0.00 | 6 | ||
| 25 | 40001209 | SCREW, (M10 x 60) | ACT | $3.30 | $3.22 | 2 | |||
| 26 | 879194382 | LOCKWASHER | 809931076 | SS |
|
$0.30 | $0.30 | 8 | |
| 27 | 809912516 | SCREW, (M8 x 50) | NLA |
|
$0.00 | $0.00 | 4 | ||
| 28 | 801761617 | SCREW | NLA |
|
$0.00 | $0.00 | 2 | ||
| 29 | 95374 | NUT, (M8) | 815088 | SS |
|
$9.60 | $9.37 | 4 | |
| 30 | 855382 | PIN | ACT | $107.83 | $101.55 | 2 | |||
| - | 898300004 | GASKET SET, Engine Overhaul | 879719 | SS |
|
$1,576.14 | $1,444.89 | 1 | |
| - | 898300004 | GASKET SET, Engine Overhaul | 883974 | SS |
|
$1,576.14 | $1,444.89 | 1 | |
| - | 879831 | LONGBLOCK ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 |
