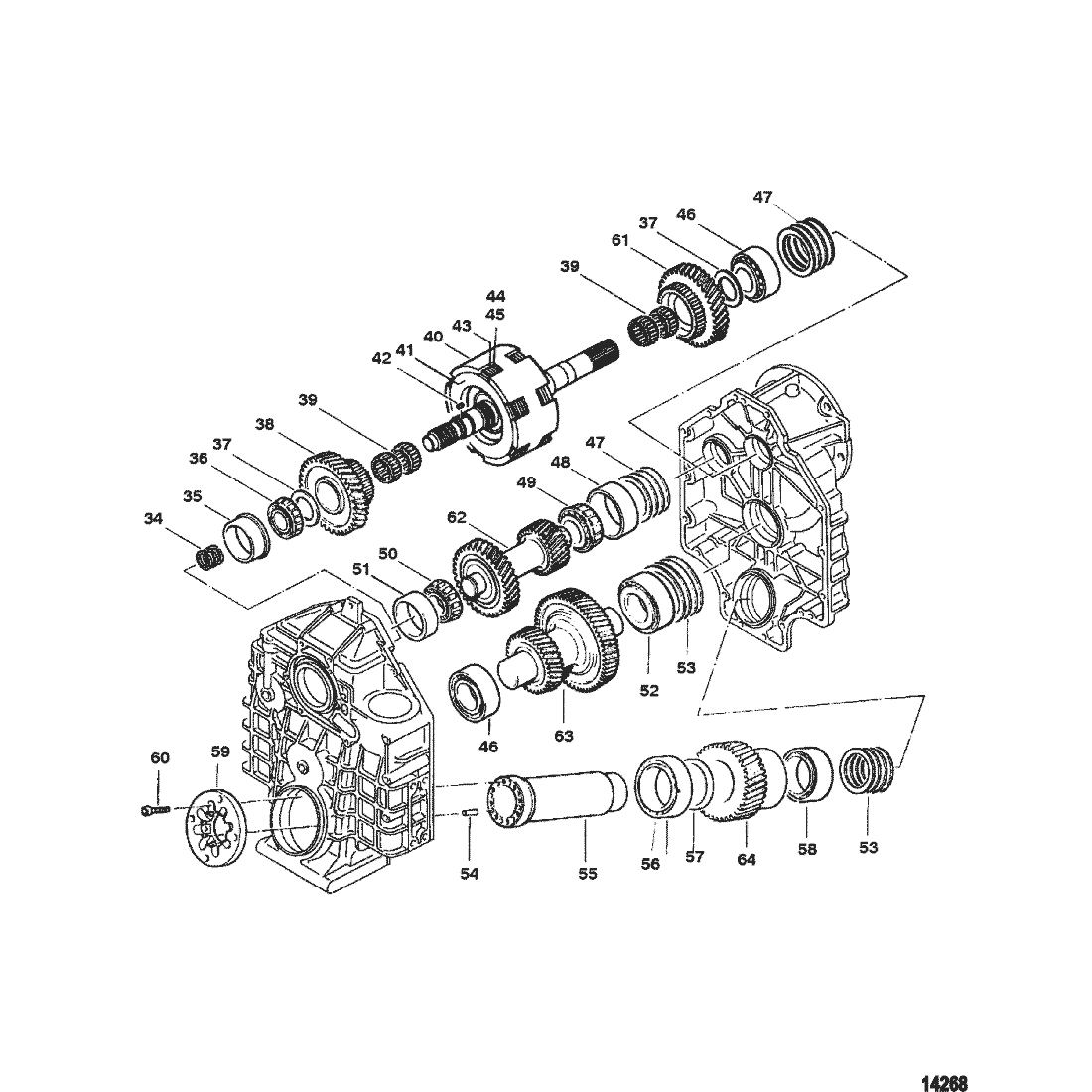

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| - | 8M0188312 | TRANSMISSION, (1.5:1 Ratio) | 863745T2 | NLA |
|
$7,462.50 | $7,044.61 | 1 | |
| - | 8M0188313 | TRANSMISSION, (2.0:1 Ratio) | 863745T3 | NLA |
|
$7,462.50 | $7,044.61 | 1 | |
| - | 8M0188314 | TRANSMISSION, (2.5:1 Ratio) | 863745T4 | NLA |
|
$7,462.50 | $7,044.61 | 1 | |
| 34 | 813312 | --RING | NLA |
|
$0.00 | $0.00 | 3 | ||
| 35 | NLA | --No Longer Available, Cup, Tapered Rolling Bearing |
|
$0.00 | $0.00 | 1 | |||
| 36 | NLA | --No Longer Available, Cone, Tapered Rolling Bearing |
|
$0.00 | $0.00 | 1 | |||
| 37 | NLA | --No Longer Available, Washer |
|
$0.00 | $0.00 | 2 | |||
| 38 | NLA | --No Longer Available, Gear |
|
$0.00 | $0.00 | 1 | |||
| 39 | NLA | --No Longer Available |
|
$0.00 | $0.00 | 4 | |||
| 40 | NLA | --No Longer Available, Bearing, Roller |
|
$0.00 | $0.00 | 1 | |||
| 41 | NLA | --No Longer Available |
|
$0.00 | $0.00 | 2 | |||
| 42 | NLA | --No Longer Available, Pressure Disc |
|
$0.00 | $0.00 | 1 | |||
| 43 | 813321 | --RING | NLA |
|
$0.00 | $0.00 | 2 | ||
| 44 | 813319 | --DISC, Inner | NLA |
|
$0.00 | $0.00 | 8 | ||
| 45 | 813320 | --DISC, Outer | NLA |
|
$0.00 | $0.00 | 10 | ||
| 46 | NLA | --No Longer Available, Ball Bearing |
|
$0.00 | $0.00 | 2 | |||
| 47 | NLA | --No Longer Available, Shim (.10mm) |
|
$0.00 | $0.00 | 1 | |||
| 47 | 813316 | --SHIM, (.15 mm) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 47 | 813317 | --SHIM, (.20 mm) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 47 | 813318 | --SHIM, (.50 mm) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 48 | NLA | --No Longer Available, Cup, Tapered Roller Bearing |
|
$0.00 | $0.00 | 1 | |||
| 49 | NLA | --No Longer Available, Cone, Tapered Roller Bearing |
|
$0.00 | $0.00 | 1 | |||
| 50 | NLA | --No Longer Available, Cone, Tapered Roller Bearing |
|
$0.00 | $0.00 | 1 | |||
| 51 | NLA | --No Longer Available |
|
$0.00 | $0.00 | 1 | |||
| 52 | NLA | --No Longer Available, Cup, Tapered Roller Bearing |
|
$0.00 | $0.00 | 1 | |||
| 53 | NLA | --No Longer Available, Shim (.10mm) |
|
$0.00 | $0.00 | 2 | |||
| 53 | NLA | --No Longer Available, Shim (.15mm) |
|
$0.00 | $0.00 | 2 | |||
| 53 | NLA | --No Longer Available, Shim (.30mm) |
|
$0.00 | $0.00 | 2 | |||
| 53 | NLA | --No Longer Available, Shim (.50mm) |
|
$0.00 | $0.00 | 2 | |||
| 54 | NLA | --No Longer Available, Pin, Dowel |
|
$0.00 | $0.00 | 4 | |||
| 55 | NLA | --No Longer Available, Shaft, Output |
|
$0.00 | $0.00 | 1 | |||
| 56 | NLA | --No Longer Available, Bearing, Tapered Roller |
|
$0.00 | $0.00 | 1 | |||
| 57 | NLA | --No Longer Available, Washer |
|
$0.00 | $0.00 | 1 | |||
| 58 | NLA | --No Longer Available, Bearing, Tapered Roller |
|
$0.00 | $0.00 | 1 | |||
| 59 | 811982 | --FLANGE, Output | NLA |
|
$0.00 | $0.00 | 1 | ||
| 60 | NLA | --No Longer Available, Screw |
|
$0.00 | $0.00 | 8 | |||
| 61 | NLA | --No Longer Available, Gear (1.5:1) |
|
$0.00 | $0.00 | 1 | |||
| 62 | NLA | --No Longer Available, Shaft Reversing (1.5:1) |
|
$0.00 | $0.00 | 1 | |||
| 63 | NLA | --No Longer Available, Shaft Intermediate(1.5:1) |
|
$0.00 | $0.00 | 1 | |||
| 64 | NLA | --No Longer Available, Gear (1.5:1) |
|
$0.00 | $0.00 | 1 | |||
| 61 | NLA | --No Longer Available, Gear (2.0:1) |
|
$0.00 | $0.00 | 1 | |||
| 62 | NLA | --No Longer Available, Shaft Reversing (2.0:1) |
|
$0.00 | $0.00 | 1 | |||
| 63 | NLA | --No Longer Available, Shaft Intermediate (2.0:1) |
|
$0.00 | $0.00 | 1 | |||
| 64 | NLA | --No Longer Available, Gear (2.0:1) |
|
$0.00 | $0.00 | 1 | |||
| 61 | NLA | --No Longer Available, Gear (2.5:1) |
|
$0.00 | $0.00 | 1 | |||
| 62 | NLA | --No Longer Available, Shaft, Reversing (2.5:1) |
|
$0.00 | $0.00 | 1 | |||
| 63 | NLA | --No Longer Available, Shaft, Intermediate (2.5:1) |
|
$0.00 | $0.00 | 1 | |||
| 64 | NLA | --No Longer Available, Gear (2.5:1) |
|
$0.00 | $0.00 | 1 |
