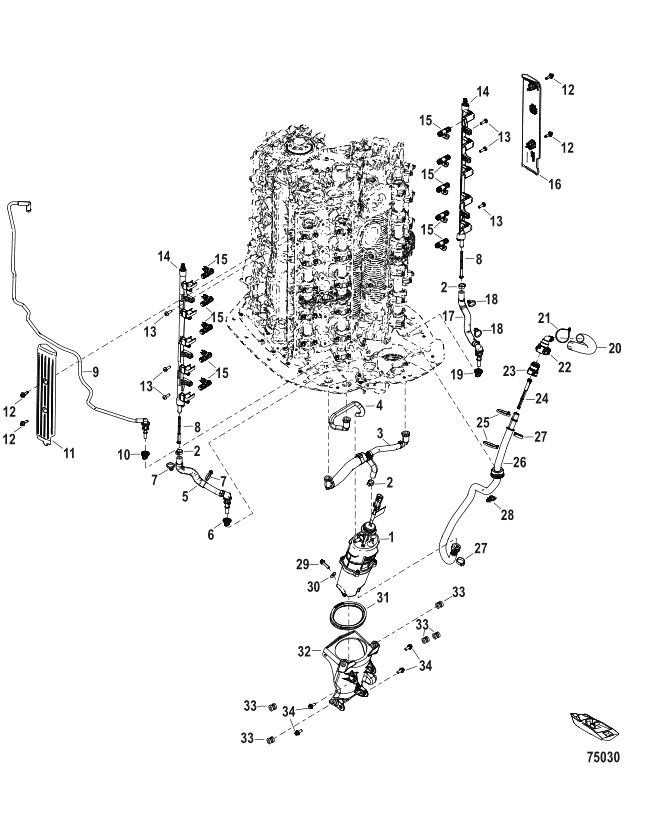

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0161584 | FUEL SUPPLY MODULE | ACT | $1,123.49 | $1,005.95 | 1 | |||
| 2 | 8M0204696 | CLAMP | 855697 | SS |
|
$2.59 | $2.53 | 3 | |
| 3 | 8M0142437 | HOSE ASSEMBLY FSM To Fuel Rail | 8M0208429 | SS |
|
$59.99 | $56.35 | 1 | |
| 4 | 8M0231308 | HOSE Intake to FSM | 8M0142432 |
|
$22.49 | $22.02 | 1 | ||
| 5 | 8M0199967 | HOSE ASSEMBLY Fuel Rail | ACT |
|
$44.99 | $44.19 | 1 | ||
| 6 | 884546 | ----GROMMET | ACT | $1.99 | $1.95 | 1 | |||
| 7 | 816311T | ----TIE STRAP (8.00 Inches) | ACT | $0.60 | $0.59 | 2 | |||
| 8 | 8M0090809 | FILTER | ACT | $7.29 | $7.12 | 2 | |||
| 9 | 8M0199968 | HOSE ASSEMBLY Upper Manifold | ACT |
|
$23.49 | $23.08 | 1 | ||
| 10 | 884546 | ----GROMMET | ACT | $1.99 | $1.95 | 1 | |||
| 11 | 8M0199969 | COVER Fuel Rail | ACT |
|
$17.19 | $16.78 | 1 | ||
| 12 | 8M0012661 | SCREW | ACT | $21.59 | $21.20 | 4 | |||
| 13 | 8M0142830 | SCREW (M6 x 20) | ACT | $0.60 | $0.59 | 6 | |||
| 14 | 8M0219443 | FUEL RAIL | 8M0199970 | SS |
|
$994.49 | $935.36 | 1 | |
| 14 | 8M0219442 | FUEL RAIL | 8M0199971 | SS |
|
$994.49 | $935.36 | 1 | |
| 15 | 8M0142264 | ----FUEL INJECTOR | ACT | $241.99 | $227.50 | 10 | |||
| 16 | 8M0199972 | COVER Fuel Rail | ACT |
|
$17.19 | $16.78 | 1 | ||
| 17 | 8M0199973 | HOSE ASSEMBLY Fuel Rail | ACT |
|
$43.99 | $43.05 | 1 | ||
| 18 | 816311T | ----TIE STRAP (8.00 Inches) | ACT | $0.60 | $0.59 | 2 | |||
| 19 | 884546 | ----GROMMET | ACT | $1.99 | $1.95 | 1 | |||
| - | 8M0220814 | FUEL INLET KIT | 8M0189030 | SS |
|
$18.99 | $18.53 | 1 | |
| 20 | 8M0220815 | ----SLEEVE | 8M0192184 | SS |
|
$7.99 | $7.81 | 1 | |
| 21 | 816311T | ----TIE STRAP (8.00 Inches) | ACT | $0.60 | $0.59 | 1 | |||
| 22 | 8M0192175 | ----FITTING Quick Connect | ACT | $6.99 | $6.83 | 1 | |||
| - | 8M0205423 | ----DECAL Fuel Inlet | ACT | $2.99 | $2.92 | 1 | |||
| 23 | 8M0199974 | ----PLUG | ACT | $7.29 | $7.12 | 1 | |||
| 24 | 8M0179353 | SCREEN Fuel Filter | ACT | $20.19 | $19.81 | 1 | |||
| 25 | 816311T | TIE STRAP (8.00 Inches) | ACT | $0.60 | $0.59 | 2 | |||
| 26 | 8M0199975 | HOSE ASSEMBLY | ACT | $110.99 | $99.92 | 1 | |||
| 27 | 888988019 | CLAMP (22.6 mm) | ACT | $4.49 | $4.39 | 2 | |||
| 28 | 899145 | CLIP Tie Strap | ACT | $3.39 | $3.30 | 1 | |||
| 29 | 8M0103807 | SCREW (M6 x 25 mm) Stainl | ACT | $2.39 | $2.33 | 1 | |||
| 30 | 65567 | WASHER (.265 x .750 x .04 | ACT | $2.89 | $2.82 | 1 | |||
| 31 | 8M0037209 | GROMMET FSM Retainer | ACT | $4.59 | $4.49 | 1 | |||
| 32 | 8M0142722 | BRACKET FSM | ACT |
|
$20.29 | $19.89 | 1 | ||
| 33 | 8M0142724 | ----GROMMET | ACT | $0.60 | $0.59 | 5 | |||
| 34 | 8M0103805 | SCREW (M6 x 16mm) Stainle | ACT | $2.49 | $2.43 | 4 |
