| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

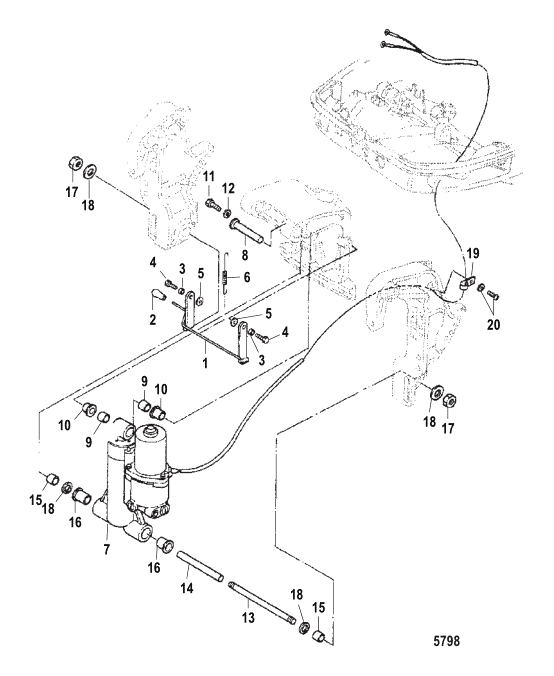

| 1 | 8251123 | STOP Tilt | NLA |
|
$0.00 | $0.00 | 1 | ||
| 1 | 8251123 | STOP Tilt | 8251124 | NLA |
|
$0.00 | $0.00 | 1 | |
| 2 | 8M0045584 | GRIP | 16208 | REP |
|
$122.75 | $115.60 | 1 | |
| 3 | 9528616 | COLLAR | NLA |
|
$0.00 | $0.00 | 2 | ||
| 4 | 8M0062251 | BOLT | 82304216 | SS/NLA |
|
$0.00 | $0.00 | 2 | |
| 5 | 168261 | WASHER | ACT | $5.10 | $4.98 | 2 | |||
| 6 | 953837 | SPRING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 7 | 851873A1 | POWER TRIM ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 8 | 8M0115482 | PIN Upper Cylinder | 851874 | SS |
|
$17.90 | $17.46 | 1 | |
| 9 | 8113682 | SLEEVE | ACT | $3.30 | $3.22 | 2 | |||
| 10 | 161765 | BUSHING | ACT | $9.60 | $9.37 | 2 | |||
| 11 | 16223 | BOLT (M6 x 14) | ACT | $4.20 | $4.10 | 1 | |||
| 12 | 898101937 | WASHER | 16238 | SS |
|
$7.59 | $7.42 | 1 | |
| 13 | 8518741 | PIN Lower Cylinder | NLA |
|
$0.00 | $0.00 | 1 | ||
| 14 | 9528617 | COLLAR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 15 | 8113682 | SLEEVE | ACT | $3.30 | $3.22 | 2 | |||
| 16 | 16176011 | BUSHING | 161766 | SS |
|
$8.60 | $8.39 | 2 | |
| 17 | 85372219 | NUT | NLA |
|
$0.00 | $0.00 | 2 | ||
| 18 | 8M0060184 | WASHER | 8518681 | SS |
|
$6.10 | $5.95 | 4 | |
| 19 | 17169 | CLAMP | ACT | $3.30 | $3.22 | 1 | |||
| 20 | 8555445 | SCREW | ACT | $1.60 | $1.57 | 1 |
