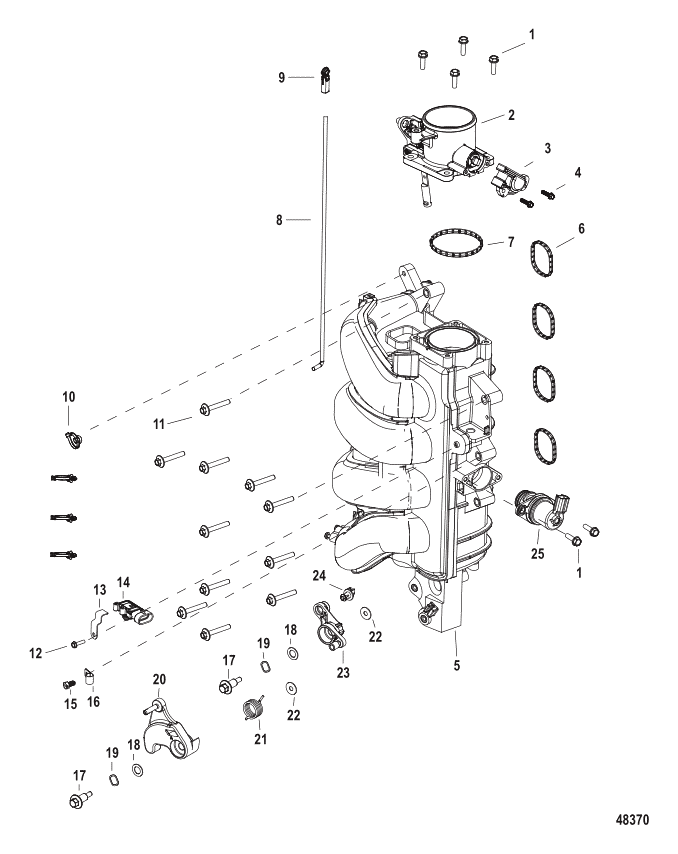

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 897445501 | SCREW (M6 x 20 MM) | ACT | $5.50 | $5.37 | 6 | |||
| 2 | 8M0149609 | THROTTLE BODY ASSEMBLY | 8M0057684 | SS |
|
$353.00 | $332.43 | 1 | |
| 3 | 8M0125617 | ----SENSOR Position | 881070T | SS |
|
$127.17 | $119.76 | 1 | |
| 4 | 8M0063490 | ----SCREW (M4 X .7 X 16 MM) | ACT | $3.20 | $3.13 | 2 | |||
| 5 | 8M0057685 | INTAKE MANIFOLD ASSEMBLY | ACT |
|
$447.86 | $428.09 | 1 | ||
| 6 | 8M0035337 | ----SEAL Port | ACT | $11.20 | $10.93 | 4 | |||
| 7 | 8M0038429 | ----SEAL Throttle Body | ACT | $11.10 | $10.83 | 1 | |||
| 8 | 8M0084746 | LINK ROD ASSEMBLY | 8M0033992 | SS |
|
$19.40 | $18.92 | 1 | |
| 9 | 8M0084742 | ----SOCKET | 19384 | SS |
|
$2.39 | $2.35 | 1 | |
| 10 | 899145 | CLIP Tie Strap | ACT | $3.40 | $3.32 | 4 | |||
| 11 | 8M0154652 | SCREW M6X1X40 HEX FLNG HD | 8M0047308 | SS |
|
$3.30 | $3.22 | 11 | |
| 12 | 895054 | SCREW (M4 x 16 MM) | ACT | $4.50 | $4.39 | 1 | |||
| 13 | 8M0047951 | BRACKET Map | ACT | $2.30 | $2.25 | 1 | |||
| 14 | 854445 | SENSOR MAP | ACT | $129.50 | $121.96 | 1 | |||
| 15 | 8M0037204 | SCREW Nylon, Push-In (.25 | ACT | $5.70 | $5.56 | 1 | |||
| 16 | 22740 | CLIP | ACT | $5.10 | $4.98 | 1 | |||
| 17 | 8M0071815 | BOLT | 8M0010411 | SS |
|
$14.20 | $13.85 | 2 | |
| 18 | 897937 | WASHER | ACT | $1.10 | $1.08 | 2 | |||
| 19 | 898093 | WASHER Wave | ACT | $3.40 | $3.32 | 2 | |||
| 20 | 8M0033987 | CAM THROTTLE ASSEMBLY | ACT | $16.60 | $16.19 | 1 | |||
| 21 | 897535005 | SPRING Throttle Cam Return | ACT | $2.81 | $2.75 | 1 | |||
| 22 | 897936 | WASHER | ACT | $1.10 | $1.08 | 2 | |||
| 23 | 8M0075924 | LEVER THROTTLE FOLLOWER ASSY | 8M0033989 | SS |
|
$19.30 | $18.82 | 1 | |
| 24 | 8M0215006 | BUSHING | 932481 | SS |
|
$14.20 | $13.85 | 1 | |
| 25 | 897526T | IAC VALVE | ACT | $211.38 | $199.06 | 1 |
