| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

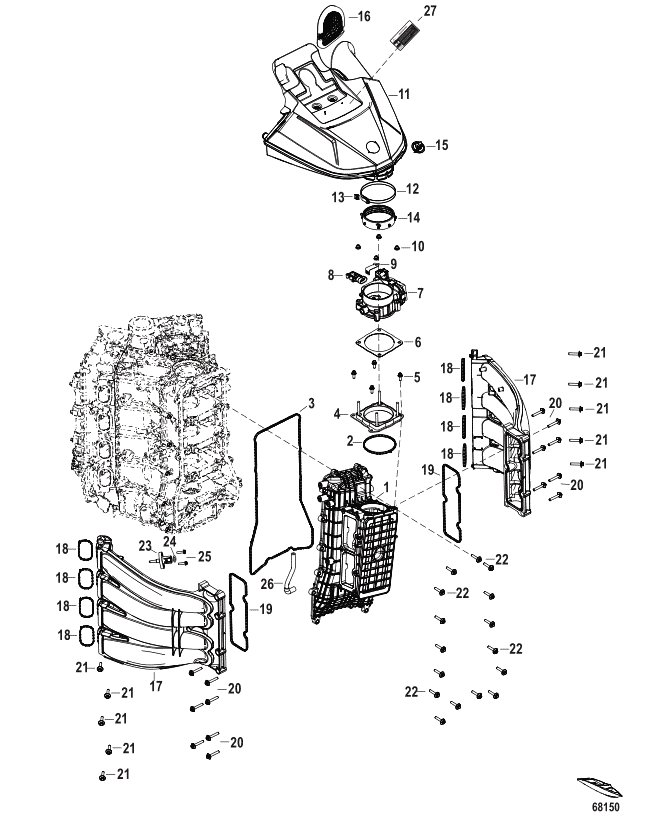

| 1 | 8M0153610 | INTAKE MANIFOLD | ACT |
|
$261.38 | $246.15 | 1 | ||
| 2 | 8M0142545 | ----GASKET Throttle Body | ACT | $11.60 | $11.32 | 1 | |||
| 3 | 8M0142544 | ----GASKET Crankcase Cover | ACT | $23.17 | $22.75 | 1 | |||
| 4 | 8M0204942 | ISOLATER | 8M0142763 | SS |
|
$67.08 | $64.53 | 1 | |
| 4 | 8M0193548 | ISOLATER | 8M0142552 | SS |
|
$62.00 | $59.64 | 1 | |
| 5 | 8M0103805 | SCREW (M6 x 16mm) Stainle | ACT | $2.50 | $2.44 | 4 | |||
| 6 | 8M0142568 | GASKET Throttle Body | ACT |
|
$5.20 | $5.08 | 1 | ||
| 6 | 8M0109442 | GASKET | ACT |
|
$52.92 | $50.90 | 1 | ||
| 7 | 8M0222235 | THROTTLE BODY ASSEMBLY 64 MM | 8M0142276 | SS |
|
$943.35 | $887.52 | 1 | |
| 7 | 8M0222358 | THROTTLE BODY ASSEMBLY 80 MM | 8M0114805 | SS |
|
$1,411.35 | $1,293.82 | 1 | |
| 8 | 8M0142690 | SENSOR MAP | ACT | $43.08 | $42.29 | 1 | |||
| 9 | 8M0142550 | BRACKET MAP Sensor | ACT | $2.20 | $2.15 | 1 | |||
| 10 | 8M0227376 | NUT (M6) | 8M0147750 | SS |
|
$0.60 | $0.59 | 4 | |
| 11 | 8M0142246 | AIR INLET ASSEMBLY | ACT |
|
$129.92 | $122.35 | 1 | ||
| 11 | 8M0142247 | AIR INLET ASSEMBLY | ACT |
|
$124.75 | $117.48 | 1 | ||
| 12 | 8M0142571 | ----CLAMP (70-90 MM) 9 MM WIDE | ACT |
|
$9.90 | $9.66 | 1 | ||
| 12 | 8M0058341 | ----CLAMP (80-100MM) | ACT |
|
$1.44 | $1.43 | 1 | ||
| 13 | 8M0074363 | ----CAP | ACT | $3.10 | $3.03 | 1 | |||
| 14 | 8M0146102 | ----SEAL Throttle Body | ACT |
|
$11.40 | $11.12 | 1 | ||
| 14 | 8M0142556 | ----SEAL Inlet | ACT |
|
$11.90 | $11.61 | 1 | ||
| 15 | 8M0043701 | M-ICON 39MM - Small | ACT | $9.30 | $9.07 | 1 | |||
| 16 | 8M0147749 | INTAKE SCREEN | ACT | $41.50 | $40.75 | 1 | |||
| 17 | 8M0142549 | RUNNERS INTAKE Port | ACT | $168.08 | $158.29 | 1 | |||
| 17 | 8M0142546 | RUNNERS INTAKE Starboard | ACT |
|
$183.67 | $172.96 | 1 | ||
| 18 | 8M0142548 | ----GASKET Intake Manifold | ACT | $4.47 | $4.37 | 8 | |||
| 19 | 8M0142547 | ----GASKET Runner Plenum | ACT | $15.30 | $14.92 | 2 | |||
| 20 | 8M0142553 | SCREW (M6 x 37) | ACT | $1.40 | $1.37 | 14 | |||
| 21 | 8M0142554 | SCREW (M6 x 30) | ACT | $1.00 | $0.98 | 10 | |||
| 22 | 8M0142555 | SCREW (M6 x 30) | ACT | $1.10 | $1.08 | 16 | |||
| 23 | 891663001 | SENSOR Temperature | ACT |
|
$228.17 | $214.87 | 1 | ||
| 24 | 8M0142578 | ----GASKET MAT Sensor | ACT | $0.80 | $0.79 | 1 | |||
| 25 | 895054 | SCREW (M4 x 16 MM) | ACT | $4.50 | $4.39 | 2 | |||
| 26 | 8M0142551 | HOSE MAP Sensor | ACT | $7.40 | $7.22 | 1 | |||
| 27 | 8M0142569 | DECAL Warning | ACT | $1.10 | $1.08 | 1 |
