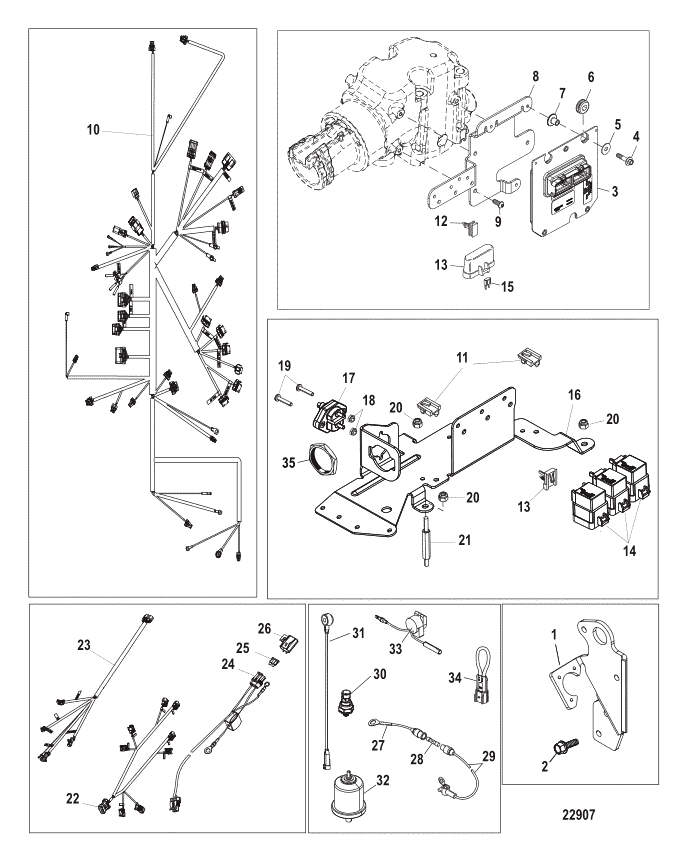

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 865480T | BRACKET Harness Mounting/Lifting Eye | ACT | $62.49 | $59.88 | 1 | |||
| 2 | 98261 | SCREW | ACT | $1.20 | $1.18 | 2 | |||
| 3 | 866189T07 | ECM | 866189T04 | SS |
|
$2,698.49 | $2,473.38 | 1 | |
| 3 | 866190T07 | ECM | 866190T04 | SS |
|
$2,698.49 | $2,473.38 | 1 | |
| 3 | 866191T05 | ECM | 866191T04 | SS |
|
$2,527.99 | $2,317.47 | 1 | |
| 3 | 866192T05 | ECM | 866192T04 | SS |
|
$2,698.49 | $2,473.38 | 1 | |
| 3 | 866122T05 | ECM | 866122T04 | SS |
|
$2,698.49 | $2,473.38 | 1 | |
| 3 | 866123T05 | ECM | 866123T04 | SS |
|
$2,698.49 | $2,473.38 | 1 | |
| 3 | 866124T05 | ECM | 866124T04 | SS |
|
$2,698.49 | $2,473.38 | 1 | |
| 3 | 866125T05 | ECM | 866125T04 | SS |
|
$2,698.49 | $2,473.38 | 1 | |
| 3 | 866129T05 | ECM | 866129T04 | SS |
|
$2,698.49 | $2,473.38 | 1 | |
| 3 | 866130T05 | ECM | 866130T04 | SS |
|
$2,698.49 | $2,473.38 | 1 | |
| 4 | 82130025 | SCREW | ACT | $4.09 | $4.00 | 3 | |||
| 5 | 65567 | WASHER | ACT | $2.89 | $2.82 | 3 | |||
| 6 | 8M0190980 | GROMMET | 834985 | SS |
|
$3.89 | $3.79 | 3 | |
| 7 | 856954 | BUSHING | ACT | $6.99 | $6.83 | 3 | |||
| 8 | 863424T | BRACKET ECM | ACT | $45.99 | $45.09 | 1 | |||
| 9 | 860008 | BOLT | ACT | $3.19 | $3.11 | 3 | |||
| 10 | 866058T02 | HARNESS | ACT |
|
$1,499.99 | $1,375.02 | 1 | ||
| 10 | 866056T02 | HARNESS | ACT |
|
$1,413.99 | $1,295.92 | 1 | ||
| 11 | 865205 | CLIP Relay Mounting | ACT | $2.99 | $2.92 | 2 | |||
| 12 | 804352 | CLIP-FUSE BLOCK Fuse Block Mounting | ACT | $1.80 | $1.76 | 1 | |||
| 13 | 883562 | COVER-FUSE BLOCK Fuse | ACT | $15.59 | $15.22 | 1 | |||
| 14 | 8M0219830 | RELAY-TRIM | 882751 | SS |
|
$18.69 | $18.33 | 3 | |
| 15 | 832969T15 | FUSE-BLUE-15AMP | 83296915 | SS |
|
$4.09 | $4.00 | 2 | |
| 15 | 832969T20 | FUSE-YELLOW-20AMP | 83296920 | SS |
|
$7.09 | $6.93 | 3 | |
| 16 | 865483T | BRACKET Circuit Breaker and Relays | ACT | $53.99 | $51.94 | 1 | |||
| 17 | 11178A01 | ORD 11178A01 | 865827T | REP |
|
$121.49 | $114.19 | 1 | |
| 18 | 8M0204718 | ----NUT | 826709106 | SS |
|
$4.69 | $4.59 | 2 | |
| 19 | 830861 | SCREW | ACT | $1.80 | $1.76 | 2 | |||
| 20 | 401366 | NUT | ACT | $3.59 | $3.50 | 3 | |||
| 21 | 863439 | STUD | ACT | $6.59 | $6.44 | 1 | |||
| 22 | 865983T01 | HARNESS-INJECTOR Injectors | ACT | $380.99 | $358.56 | 1 | |||
| 23 | 865677T02 | HARNESS Transom | ACT | $93.49 | $89.93 | 1 | |||
| 24 | 8M0113732 | HARNES ASY-14 FT Clean Power | 888416T03 | SS |
|
$105.85 | $99.65 | 1 | |
| 25 | 862646 | FUSE 5 AMP | ACT | $4.09 | $4.00 | 1 | |||
| 26 | 828054 | COVER-FUSE | ACT | $5.89 | $5.76 | 1 | |||
| 27 | 8M0207788 | CABLE ASSY | 95084A10 | SS |
|
$9.49 | $9.27 | 1 | |
| 28 | 8M0207796 | FUSE-20 AMP | 79091 | SS |
|
$9.09 | $8.88 | 1 | |
| 29 | 95084A9 | CABLE ASSY | ACT |
|
$30.49 | $29.95 | 1 | ||
| 30 | 8M0157742 | SENSOR Pressure | 881879010 | SS |
|
$209.99 | $197.45 | 1 | |
| 30 | 881879T11 | SENSOR-PRESSURE Pressure | 881879011 | SS |
|
$196.99 | $185.36 | 1 | |
| 31 | 8M6003194 | SENSOR-KNOCK | 878187 | SS |
|
$77.99 | $74.95 | 2 | |
| 32 | 8M0068784 | SENDER ASSY Oil | 815425T | SS |
|
$133.49 | $125.49 | 1 | |
| 32 | 37293T | SENDER ASSY-DUAL Oil | ACT |
|
$205.99 | $193.68 | 1 | ||
| 33 | 816492A15 | ALARM KIT | ACT | $99.99 | $96.10 | 1 | |||
| 34 | 864337A1 | CONNECTOR Jumper | ACT |
|
$17.99 | $17.56 | 1 | ||
| 35 | 889664 | NUT | ACT | $6.69 | $6.54 | 1 |
