Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

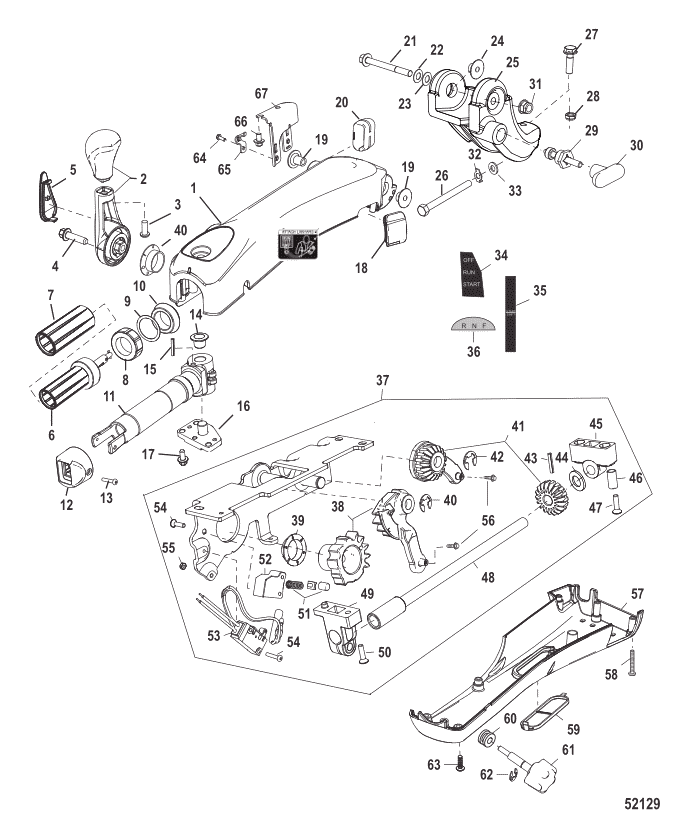

- 8M0093581 TILLER HANDLE ASSEMBLY Big Tiller, Manual Mechanical Non Power Steering 8M0074795 SS/NLA $0.00 $0.00 1
- 8M0093581 TILLER HANDLE ASSEMBLY Big Tiller, Manual Mechanical Non Power Steering NLA $0.00 $0.00 1
1 8M0144909 ----HOUSING Steering Handle, Upper 879346T02 REP $271.31 $244.57 1
- 8M0032728 --------DECAL Lanyard, Black ACT $0.31 $0.31 1
2 879346A01 ----SHIFT HANDLE ASSEMBLY ACT $64.09 $60.35 1
3 40011130 --------SCREW (M6 x 30) Stainless Steel ACT $3.19 $3.11 1
4 8M0103813 --------SCREW (M8 x 30) 88552630 SS $4.09 $4.00 1
5 879346T15 ----COVER Shift Handle-Mercury ACT $25.02 $24.57 1
6 8M0165596 ----THROTTLE GRIP ASSEMBLY 879346T05 SS $168.39 $151.82 1
7 879346T06 --------GRIP Rubber ACT $13.30 $13.06 1
8 8M0034107 ----NUT ACT $8.89 $8.68 1
9 8M0024573 ----WASHER ACT $2.62 $2.58 1
10 8M0022037 ----GROMMET ACT $4.19 $4.11 1
11 879346T08 ----CHASSIS Throttle Grip ACT $100.36 $90.47 1
12 8M0030401 ---- CAP Handle Trim Switch ACT $9.35 $9.17 1
13 4005685 ----SCREW (M4 x 10) ACT $1.82 $1.79 2
14 8M0021535 ----BUSHING ACT $2.62 $2.58 2
15 8M0022764 ----DOWEL PIN ACT $4.19 $4.11 2
16 879346T16 ----BEARING CAP ACT $44.72 $44.56 1
17 88552514 ----SCREW (M6 x 14 MM) Stainless Steel ACT $4.09 $4.00 3
18 879346T19 ----GROMMET ACT $5.66 $5.55 1
19 8M0035136 ----BUSHING ACT $5.68 $5.57 2
20 8M0045301 ----GROMMET ACT $11.52 $11.31 1
21 823567105 ----SCREW (M10 x 105) Hex Flange - Stainless Steel ACT $11.59 $11.32 1
22 4002319 ----WASHER ACT $3.19 $3.11 1
23 12024 ----WASHER (.402 x .787 x .039 Bellevi) ACT $5.89 $5.76 1
24 8M0031370 ----BUSHING ACT $17.83 $17.48 1
25 8M0079220 ----BRACKET Mounting NLA $0.00 $0.00 1
26 8M0074760 --------SCREW (.3125 x 2.250) Hex ACT $3.39 $3.30 2
27 8M0214980 ----SCREW (.375-24 x 1.38) 875273138 SS $30.99 $30.36 1
28 8M0204726 ----NUT (.375-24) Brass 8M0042636 SS $1.80 $1.76 1
29 879346T12 ----TILT LOCK ASSEMBLY ACT $52.60 $49.55 1
30 879346T11 ----HANDLE ACT $7.84 $7.67 1
31 826292 ----NUT (M10) Brass/Nickel Plated ACT $4.19 $4.10 1
32 42981 ----TAB WASHER ACT $7.39 $7.22 2
33 34437 ----WASHER ACT $2.89 $2.82 2
34 8M0033313 ----DECAL On-Off-Start ACT $3.55 $3.49 1
35 8M0029029 ----DECAL Throttle ACT $10.04 $9.83 1
36 8M0029030 ----DECAL R-N-F ACT $2.23 $2.19 1
37 879347T07 ----GEAR PLATE ASSEMBLY ACT $442.97 $399.34 1
38 879347A04 --------SHIFT ARM AND GEAR ASSEMBLY NLA $0.00 $0.00 1
39 8M0022826 ------------BUSHING ACT $10.04 $9.83 2
40 29641 ------------E RING ACT $1.80 $1.76 1
41 879347A05 --------THROTTLE GEAR ASSEMBLY NLA $0.00 $0.00 1
42 29641 ------------E RING ACT $1.80 $1.76 1
43 8M0028305 --------PIN NLA $0.00 $0.00 1
44 8M0028540 --------SHIM (.005) NLA $0.00 $0.00 AR
44 8M0028541 --------SHIM (.010) NLA $0.00 $0.00 AR
44 8M0028542 --------SHIM (.020) NLA $0.00 $0.00 AR
44 8M0028543 --------SHIM (.040) NLA $0.00 $0.00 AR
45 8M0027443 --------PILLOW BLOCK ACT $5.95 $5.83 1
46 8M0028294 --------BUSHING NLA $0.00 $0.00 2
47 8M0103808 --------SCREW (M6 x 30 MM) Stainl 88552530 SS $2.79 $2.72 2
48 NSS ----------------NOT SOLD SEPARATE Throttle Shaft $0.00 $0.00 1
49 8M4501323 --------BLOCK Friction 8M0035550 SS $11.72 $11.49 1
50 8M0031550 --------SCREW (M4 x 0.7 x 16) NLA $0.00 $0.00 3
51 879347A08 --------SPRING AND GUIDE KIT ACT $27.24 $26.76 1
52 8M0028323 --------RETAINER ACT $51.56 $48.60 1
53 879347T06 --------SWITCH Neutral ACT $34.35 $33.87 1
54 8M0034874 --------SCREW (M3 x 0.5) ACT $2.89 $2.82 2
55 8M0034875 --------NUT (M3 x 0.5 Hex) ACT $0.10 $0.10 2
56 8M0085515 ----SCREW (#8-32 x .375) Not included in Gear Plate Assembly 8222151 SS $6.06 $5.95 2
57 879346T04 ----COVER Steering Handle, Lower ACT $56.25 $53.01 1
58 4001991 ----SCREW (M4 x 35) ACT $2.99 $2.93 2
59 879346T10 ----COVER Switch/Light ACT $10.37 $10.18 1
60 828249 ----GROMMET ACT $17.09 $16.68 1
61 879346A03 ----THROTTLE FRICTION KNOB ASSEMBLY ACT $54.31 $51.16 1
62 29641 --------E RING ACT $1.80 $1.76 1
63 4001987 ----SCREW (M4 x 16) ACT $1.80 $1.76 6
64 8M0085515 ----SCREW (#8-32 x .375) 8222151 SS $6.06 $5.95 2
65 8M0028230 ----RETAINER ACT $4.81 $4.71 2
66 82130010 ----SCREW (M6 x 10) ACT $5.09 $4.98 2
67 879346T17 ----BRACKET Shift Mount ACT $19.19 $18.76 1
NS 8M0146284 INSTRUCTION SHEET Big Tiller 8M0063652 SS $28.50 $28.25 1
NS 8M0063659 OPERATION MANUAL Big Tiller, Power Steer, DTS and Manual 899988001 SS $31.00 $30.57 1
