| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

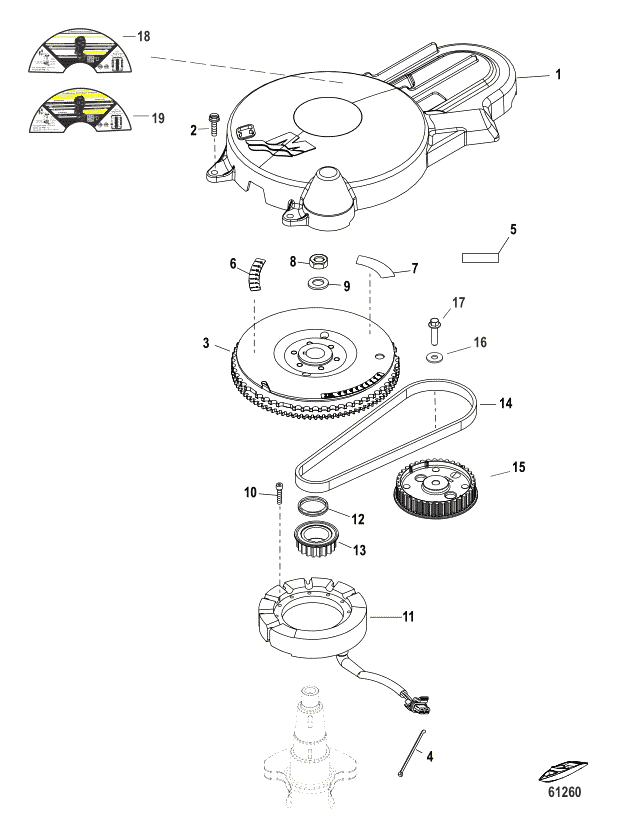

| 1 | 859284T2 | FLYWHEEL COVER | ACT | $180.08 | $169.59 | 1 | |||
| 2 | 8248326 | SCREW (M6 x 25 MM) | ACT | $1.70 | $1.66 | 4 | |||
| 3 | 8M0118173 | FLYWHEEL ASSEMBLY | ACT | $460.72 | $440.38 | 1 | |||
| 4 | 816311T | TIE STRAP (8.00 Inches) | ACT | $0.59 | $0.58 | 1 | |||
| 5 | NSS | NOT SOLD SEPARATE Decal-Warning Spinning Flywheel |
|
$0.00 | $0.00 | 1 | |||
| 6 | NSS | NOT SOLD SEPARATE Decal-Timing Marks |
|
$0.00 | $0.00 | 1 | |||
| 7 | NSS | NOT SOLD SEPARATE Decal-Warning-Neutral |
|
$0.00 | $0.00 | 1 | |||
| 8 | 893789 | NUT | ACT | $9.80 | $9.56 | 1 | |||
| 9 | 893762 | WASHER (18 X 36 X 3) | ACT | $4.10 | $4.00 | 1 | |||
| 10 | 4013930 | SCREW (M5 x 30) | ACT | $2.90 | $2.83 | 3 | |||
| 11 | 878143T05 | STATOR | ACT | $292.83 | $275.77 | 1 | |||
| 12 | 834838 | LOAD RING | ACT | $36.50 | $35.84 | 1 | |||
| 13 | 833102T | GEAR Drive | ACT | $37.58 | $36.91 | 1 | |||
| 14 | 8M0151040 | TIMING BELT | 8M0065179 | SS |
|
$69.99 | $67.25 | 1 | |
| 15 | 833104T6 | GEAR Driven | ACT | $66.00 | $63.48 | 1 | |||
| 16 | 82761140 | SCREW (M10 x 40) | ACT | $5.30 | $5.17 | 1 | |||
| 17 | 4002320 | WASHER | ACT | $2.50 | $2.44 | 1 | |||
| 18 | 8M0107997 | DECAL Maintenance Schedule EFI REC | ACT | $6.40 | $6.25 | 1 | |||
| 19 | 8M0105255 | DECAL Maintenance Schedule | ACT |
|
$7.00 | $6.83 | 1 |
