Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

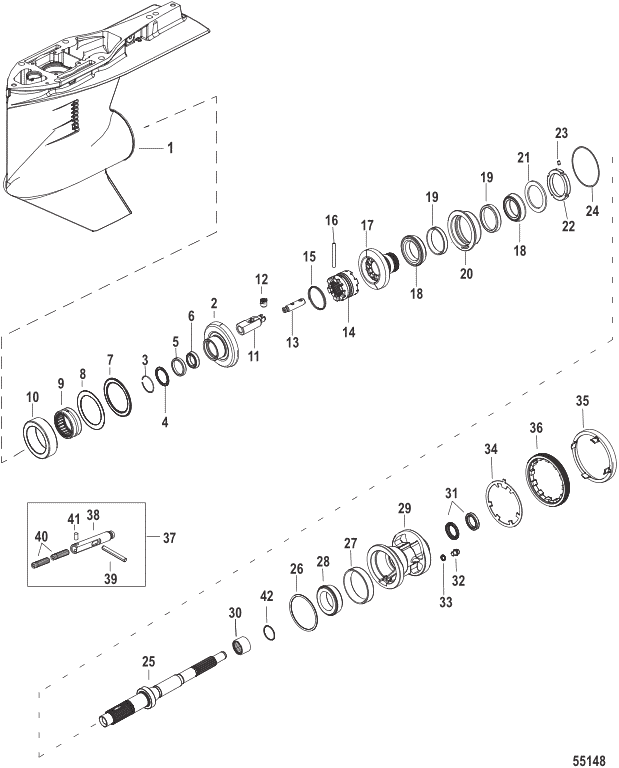

- 8M0102751 GEARCASE Complete, CT CL ACT $4,535.70 $4,157.99 1
- 8M0088076 GEARCASE Complete CT CXL ACT $4,535.70 $4,157.99 1
- 8M0099917 GEARCASE Complete, CT CXL ACT $4,535.70 $4,157.99 1
1 8M0057747 ----GEAR HOUSING Basic ACT $1,877.86 $1,721.47 1
1 8M0099907 ----GEAR HOUSING Basic ACT $1,857.14 $1,702.49 1
2 8M0108312 ----GEAR Reverse 31T 8M0094500 REP $638.21 $600.44 1
3 8M0094502 ----RING Internal Retaining ACT $2.39 $2.33 1
4 8M0064432 ----WASHER Thrust ACT $55.33 $53.22 1
5 8M0094499 ----BEARING SET Tapered Roller ACT $25.42 $24.96 1
6 NSS --------NOT SOLD SEPARATE $0.00 $0.00 1
7 815480 ----BEARING Thrust ACT $32.50 $31.92 1
8 815481 ----THRUST WASHER ACT $24.08 $23.65 1
9 8M0094497 ----BEARING Needle Roller ACT $95.42 $91.78 1
10 8M0064369 ----BEARING ADAPTER Reverse Gear ACT $195.08 $183.72 1
11 8M0031018 ----FOLLOWER Cam (LH) ACT $78.18 $75.19 1
12 8M0077490 ----CAM Shift ACT $11.60 $11.32 1
13 8M0057749 ----ROD Clutch Actuator Design 1 ACT $27.75 $27.25 1
14 8M0094479 ----CLUTCH Sliding, 6 Jaw ACT $183.67 $172.96 1
15 8M0047945 ----SPRING Retaining ACT $1.80 $1.76 1
16 8M0045759 ----PIN Cross ACT $8.01 $7.81 1
17 8M0094483 ----GEAR SET FORWARD/PINION (31T LH) ACT $697.64 $656.35 1
18 8M0094485 ----TAPERED ROLLER BEARING SET ACT $69.24 $66.61 2
19 NSS --------NOT SOLD SEPARATE $0.00 $0.00 2
20 8M0094486 ----ADAPTER Bearing, Forward Gear ACT $473.65 $452.74 1
21 8M0064177 ----WASHER Thrust ACT $12.79 $12.49 1
22 8M0064178 ----LOCK NUT 8M0094488 SS $25.42 $24.96 1
23 8M0066130 ----SCREW- HALF DOG POINT SET ACT $7.40 $7.22 1
24 8M0094490 ----SHIM SET ACT $137.92 $129.88 1
25 8M0088079 ----SHAFT - PROPELLER LH ACT $605.79 $569.93 1
26 8M0030845 ----O-RING 3.975X.210 ACT $1.80 $1.76 1
27 8M0148319 ----BEARING ASSEMBLY Tapered 884330T01 SS $34.58 $33.96 1
28 NSS --------NOT SOLD SEPARATE $0.00 $0.00 1
29 8M0094495 ----BEARING CARRIER C/R ACT $247.75 $233.31 1
30 8M0064306 ----SPACER Thrust ACT $18.75 $18.42 1
31 8M0204700 ----SEAL Oil 888483 SS $22.42 $22.02 2
32 8M0071653 ----SCREW Special ACT $8.10 $7.90 1
33 8M0204693 ----SEAL 830749 SS $5.19 $5.07 1
34 8M0030784 ----WASHER Keyed ACT $8.70 $8.49 1
35 8M0187255 ----SLEEVE Propeller Bore 8M0054695 SS $6.60 $6.44 1
36 8M0168885 ----RETAINER Bearing Carrier 8M0030785 SS $55.17 $53.06 1
37 8M0120367 ----ACTUATOR KIT Double Acting Shift Design 2 ACT $85.33 $82.08 1
38 8M0102962 --------ROD CLUTCH ACTUATOR ACT $68.67 $66.05 1
39 8M0029113 --------PIN Cross ACT $9.50 $9.27 1
40 8M0096707 --------SPRING Compression ACT $2.00 $1.96 2
41 8M0084245 --------PIN Spring Locator ACT $3.70 $3.61 1
42 8M0076745 ----SHIM SET ACT $394.92 $371.90 1
42 8M0050423 --------WASHER .020 ACT $37.58 $36.91 AR
42 8M0050424 --------WASHER .022 ACT $34.58 $33.96 AR
42 8M0050425 --------WASHER .024 ACT $20.00 $19.64 AR
42 8M0050427 --------WASHER .026 ACT $30.16 $29.63 AR
42 8M0050428 --------WASHER .028 ACT $31.58 $31.02 AR
42 8M0050429 --------WASHER .030 ACT $19.08 $18.74 AR
42 8M0050430 --------WASHER .032 ACT $19.83 $19.48 AR
42 8M0050431 --------WASHER .034 ACT $25.92 $25.45 AR
42 8M0050432 --------WASHER .036 ACT $26.18 $25.70 AR
42 8M0050433 --------WASHER .038 ACT $25.75 $25.29 AR
42 8M0050434 --------WASHER .040 ACT $30.08 $29.53 AR
42 8M0050435 --------WASHER .042 ACT $30.24 $29.71 AR
42 8M0050436 --------WASHER .044 ACT $30.92 $30.36 AR
42 8M0050437 --------WASHER .046 ACT $29.92 $29.38 AR
42 8M0050438 --------WASHER .048 ACT $26.75 $26.27 AR
42 8M0050439 --------WASHER .050 ACT $26.83 $26.35 AR
