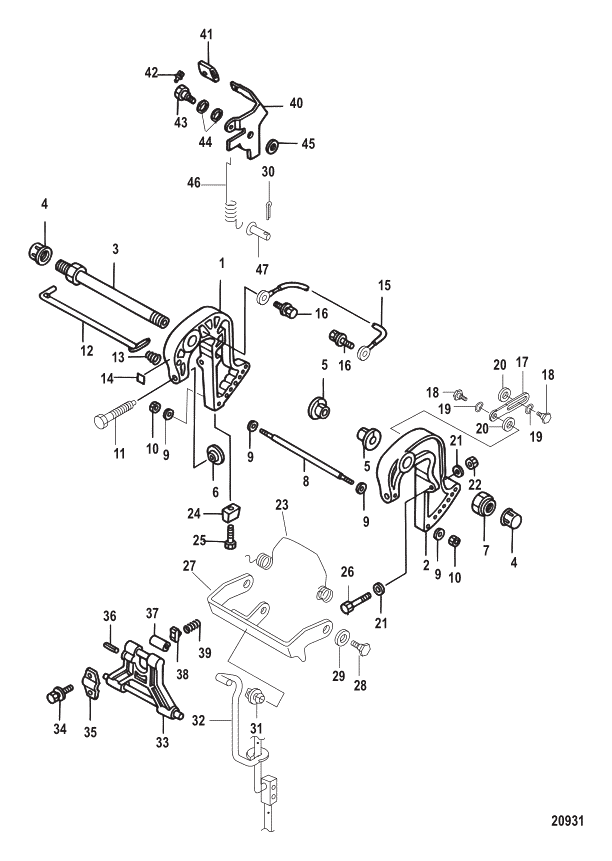

Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan
1 8M0047037 CLAMP BRACKET Starboard, 14MM Thread 898101T26 REP $225.49 $202.92 1
2 8M0145388 CLAMP BRACKET Port, 14MM Thread 898101T25 REP $179.49 $161.67 1
3 898101191 TILT TUBE ASSEMBLY ACT $103.49 $93.24 1
4 85372214 CAP NUT ACT $5.59 $5.47 2
5 8537435 BUSHING ACT $13.59 $13.27 2
6 95379 PAD NLA $0.00 $0.00 2
7 853722029 NUT Nylon ACT $23.09 $22.67 1
8 898101044 PIN Space ACT $31.89 $31.26 1
9 16826 WASHER Stainless Steel 895106 SS $3.29 $3.21 4
10 400212 NUT 853722022 SS $2.89 $2.82 2
11 8M0176080 CLAMP SCREW 162635 REP $49.99 $49.06 2
12 898101207 THRUST ROD ACT $55.49 $52.24 1
13 8126455 SPRING ACT $5.09 $4.98 1
14 823701004 DECAL Co-Pilot ACT $2.69 $2.62 1
15 898101089 WIRE Ground To Swivel Bracket ACT $14.39 $14.05 1
16 8230427 BOLT ASSEMBLY (M6 x 12) ACT $4.09 $4.00 2
17 898101209 STOPPER Tilt - Port ACT $9.39 $9.17 1
18 898101014 SCREW ACT $12.29 $12.00 2
19 8537232 WAVE WASHER ACT $4.09 $4.00 2
20 8M0135942 WASHER To Swivel Bracket 853701 SS $5.19 $5.08 2
21 16192 WASHER 895106001 SS $3.59 $3.50 4
22 95374 NUT Nylon ACT $9.59 $9.37 4
23 898101263 SPRING ACT $16.39 $16.00 1
24 804043 ANODE ACT $19.29 $18.82 1
25 879194264 BOLT 82304224 SS $4.49 $4.39 1
26 879194310 BOLT 823042056 SS $8.19 $8.00 2
27 898103T28 LOCK Reverse ACT $47.49 $46.65 1
28 898101262 SHAFT Reverse Lock ACT $16.89 $16.53 1
29 953921 WASHER 895118002 SS $5.59 $5.47 2
30 81502610 COTTER PIN ACT $3.59 $3.50 1
31 853748 SNAP Link Rod ACT $11.59 $11.32 1
32 898101151 LINK ACT $30.29 $29.71 1
33 8M0157131 STOPPER Tilt 898101208 SS $93.49 $87.74 1
34 898101013 SCREW ACT $12.39 $12.10 2
35 898101210 PLATE Tilt Stopper Setting ACT $18.19 $17.75 1
36 95218016 PIN Spring ACT $5.19 $5.08 1
37 8251131 BRACKET ACT $5.69 $5.56 1
38 853774 STOP ACT $10.39 $10.15 1
39 953832 SPRING ACT $5.69 $5.56 1
40 898103T39 LEVER Reverse Lock ACT $17.99 $17.68 1
41 898101234 GRIP Reverse Lock Lever ACT $11.09 $10.83 1
42 8M0051399 BUTTON 853776 SS $6.69 $6.54 1
43 803790001 BOLT Shoulder ACT $20.39 $19.97 1
44 17641 WAVE WASHER ACT $3.79 $3.69 2
45 953921 WASHER 895118002 SS $5.59 $5.47 1
46 898101379 SPRING ACT $15.79 $15.41 1
47 8M0188869 PIN To Swivel Bracket 898101378 SS $3.89 $3.79 1
