Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

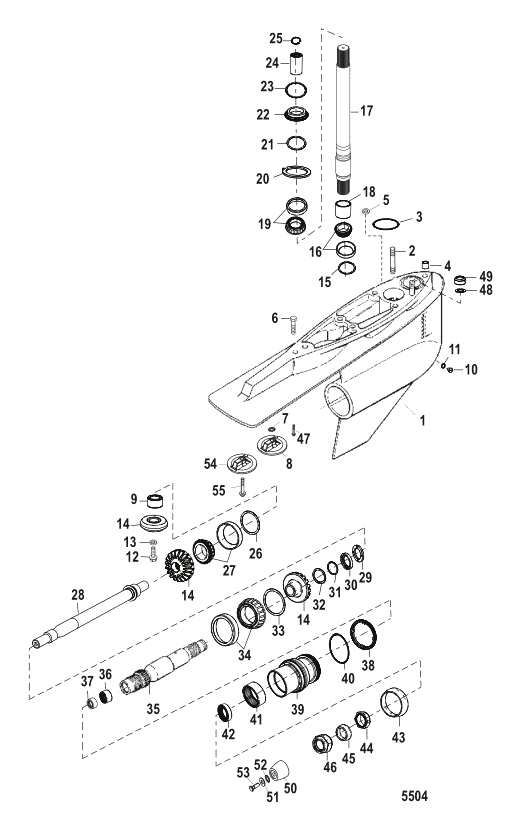

- 8M0046733 GEAR HOUSING ASSEMBLY Complete (15/19) 8866G02 SS $6,811.43 $6,334.49 1
- 8M0046733 GEAR HOUSING ASSEMBLY Complete (15/19) 8866G07 SS $6,811.43 $6,334.49 1
- 8866J08 GEAR HOUSING ASSEMBLY Complete ACT $6,811.43 $6,334.49 1
- 8M0046733 GEAR HOUSING ASSEMBLY Complete (15/19) Dual Water Pickup ACT $6,811.43 $6,334.49 1
- 8M0046735 GEAR HOUSING ASSEMBLY Complete (18/25) 8866G03 SS $6,811.43 $6,334.49 1
- 8M0046735 GEAR HOUSING ASSEMBLY Complete (18/25) 8866G08 SS $6,811.43 $6,334.49 1
- 8M0046735 GEAR HOUSING ASSEMBLY Complete (18/25) Dual Water Pickup ACT $6,811.43 $6,334.49 1
- 8866J24 GEAR HOUSING ASSEMBLY (18/25) Complete 8866J03 SS $6,811.43 $6,334.49 1
- 8866J24 GEAR HOUSING ASSEMBLY (18/25) Complete ACT $6,811.43 $6,334.49 1
- 8M0046738 GEAR HOUSING ASSEMBLY Complete (16/27) 8866G04 SS $6,811.43 $6,334.49 1
- 8M0046738 GEAR HOUSING ASSEMBLY Complete (16/27) 8866G09 SS $6,811.43 $6,334.49 1
- 8M0046738 GEAR HOUSING ASSEMBLY Complete (16/27) Dual Water Pickup ACT $6,811.43 $6,334.49 1
- 8866J09 GEAR HOUSING ASSEMBLY Complete (16/27) 8866J04 SS $6,811.43 $6,334.49 1
- 8866J09 GEAR HOUSING ASSEMBLY Complete (16/27) ACT $6,811.43 $6,334.49 1
- 8M0046682 GEAR HOUSING ASSEMBLY (13/24) Complete 8866G05 SS $6,811.43 $6,334.49 1
- 8M0046682 GEAR HOUSING ASSEMBLY (13/24) Complete 8866G10 SS $6,811.43 $6,334.49 1
- 8M0046682 GEAR HOUSING ASSEMBLY Complete (13/24) Dual Water Pickup ACT $6,811.43 $6,334.49 1
- 8866J25 GEAR HOUSING ASSEMBLY (13/24) Complete 8866J05 SS $7,368.57 $6,852.99 1
- 8866J25 GEAR HOUSING ASSEMBLY (13/24) Complete ACT $7,368.57 $6,852.99 1
1 8866G01 ----GEAR HOUSING ASSEMBLY Basic NLA $0.00 $0.00 1
1 8M0046683 ----GEAR HOUSING ASSEMBLY Basic, Dual Water Pickup ACT $3,804.86 $3,487.99 1
1 8866J30 ----GEAR HOUSING ASSEMBLY Basic ACT $3,946.00 $3,617.38 1
2 8M0133358 --------STUD (.437-14/.437-20 x 2.060) 579203 SS $20.70 $20.19 2
3 8M0214925 --------O-RING 33465 SS $5.30 $5.17 1
4 805344 --------SEAL (.625 Outside Diameter) ACT $4.20 $4.10 1
5 8M0204680 --------SEAL 455771 SS $4.29 $4.20 1
6 8M0204686 --------SCREW (.437-14 x 1.750) 806327 SS $7.00 $6.83 1
7 806210 --------LOCKWASHER (.437) ACT $1.80 $1.76 1
8 76214Q5 --------ANODE KIT ACT $29.99 $29.53 1
9 86754T --------BEARING ASSEMBLY Roller ACT $81.67 $78.66 1
10 8M0058389 --------PLUG KIT Drain - Magnetic Magnetic 67892A06 SS $10.69 $10.44 1
11 8M0204693 ------------SEAL 830749 SS $5.19 $5.07 1
12 808027 ----SCREW ACT $5.41 $5.27 1
13 805068 ----WASHER ACT $17.70 $17.26 1
14 805448A1 ----GEAR SET (15/19) ACT $874.50 $822.73 1
14 824517A1 ----GEAR SET (18/25) ACT $1,008.14 $924.19 1
14 822535A1 ----GEAR SET (16/27) ACT $1,093.43 $1,002.37 1
14 828336A1 ----GEAR SET (13/24) ACT $843.29 $793.37 1
15 92914A1 ----SHIM KIT ACT $48.17 $47.30 AR
16 8M0103470 ----BEARING ASSEMBLY Tapered Roller 66668A1 SS $46.00 $45.17 1
17 858517A3 ----DRIVESHAFT ASSEMBLY (16.085 Long) ACT $792.57 $745.66 1
18 815901 --------RACE Bearing ACT $63.50 $61.08 1
19 8M0103473 ----BEARING ASSEMBLY Tapered Roller 86748A1 SS $53.58 $51.54 1
20 86739 ----TAB WASHER ACT $18.20 $17.75 1
21 86749A1 ----SHIM KIT ACT $45.92 $45.09 AR
22 8M0046302 ----SPACER 92916 SS $15.30 $14.92 1
23 20826 ----O-RING (2.230 x .139) ACT $5.30 $5.17 1
24 88243A3 ----COUPLING ASSEMBLY ACT $116.50 $109.71 1
25 88242 --------RING Retaining ACT $1.10 $1.08 1
26 87157A1 ----SHIM KIT ACT $64.67 $62.20 AR
27 8M0103471 ----BEARING ASSEMBLY Tapered Roller 86752A1 SS $70.92 $68.21 1
28 865322T ----PROPELLER SHAFT Inner ACT $1,628.57 $1,492.95 1
29 805322 ----BEARING Caged Roller ACT $58.58 $56.35 1
29 865260 ----BEARING Thrust ACT $37.00 $36.34 1
30 8M0177335 ----BUSHING 805072 SS $103.25 $97.24 1
31 805627A1 ----SHIM ASSEMBLY ACT $21.33 $20.95 AR
32 8M2012170 ----RING Retaining 805096 SS $5.70 $5.56 1
32 8M2012170 ----RING Retaining ACT $5.70 $5.56 1
33 805078A1 ----SHIM ASSEMBLY ACT $79.83 $76.79 AR
34 8M0103477 ----BEARING ASSEMBLY Tapered Roller 805182A1 SS $171.50 $161.51 1
35 865315A02 ----PROPELLER SHAFT Outer 805074A2 SS $1,564.71 $1,434.41 1
35 865315A02 ----PROPELLER SHAFT Outer ACT $1,564.71 $1,434.41 1
36 57410 --------BEARING Roller ACT $35.42 $34.78 1
37 8M0033407 --------SEAL Oil 861695 REP $87.49 $84.08 1
38 8M2013382 ----RETAINER 805330 SS $122.58 $115.44 1
39 865876A01 ----CARRIER ASSEMBLY Bearing 805329A1 SS $638.78 $600.97 1
39 865876A03 ----CARRIER ASSEMBLY Bearing ACT $818.29 $769.85 1
40 805331 --------O-RING ACT $2.00 $1.96 1
41 805079T --------BEARING Roller ACT $182.58 $171.94 1
42 861694 --------SEAL Oil Oil ACT $65.75 $63.24 1
43 805100 THRUST HUB Front 805100T SS $36.07 $35.56 1
44 8M0105210 PROP NUT Front 859131 SS $62.07 $60.13 1
45 805101T THRUST WASHER Bravo Three (rear), Bravo Four S (front), Zeus (rear) Rear ACT $41.85 $41.27 1
46 862907 PROP NUT Rear ACT $21.65 $21.35 1
47 90084 SCREW (.437-14 x 1.500) ACT $4.60 $4.49 1
48 861854 WASHER (.453 x .750 x .032) Stainless Steel ACT $4.20 $4.10 2
49 8M0143423 NUT (.437-20) 35053 SS $9.50 $9.27 2
50 865182Q01 ANODE KIT Aluminum Propeller Shaft 865182A01 SS $25.99 $25.57 1
50 865182A02 ANODE KIT Magnesium Propeller Shaft ACT $45.68 $44.85 1
51 8M0204690 ----WASHER (.344 x .688 x .065) Stainless Steel 814806 SS $1.80 $1.76 1
52 72521 ----LOCKWASHER Internal Tooth ACT $1.50 $1.47 1
53 8M0214976 ----SCREW 865323 SS $3.80 $3.71 1
54 762144 ANODE ACT $20.49 $20.12 1
55 865321 SCREW (.437-14 x 1.250) ACT $11.00 $10.73 1
- 76868A04 SEAL KIT Gear Housing 76868A2 SS $155.49 $146.20 1
- 888761Q04 ANODE KIT Aluminum 888761Q02 SS $112.49 $105.07 1
- 888760Q04 ANODE KIT Magnesium 888760Q02 SS $207.99 $194.32 1
