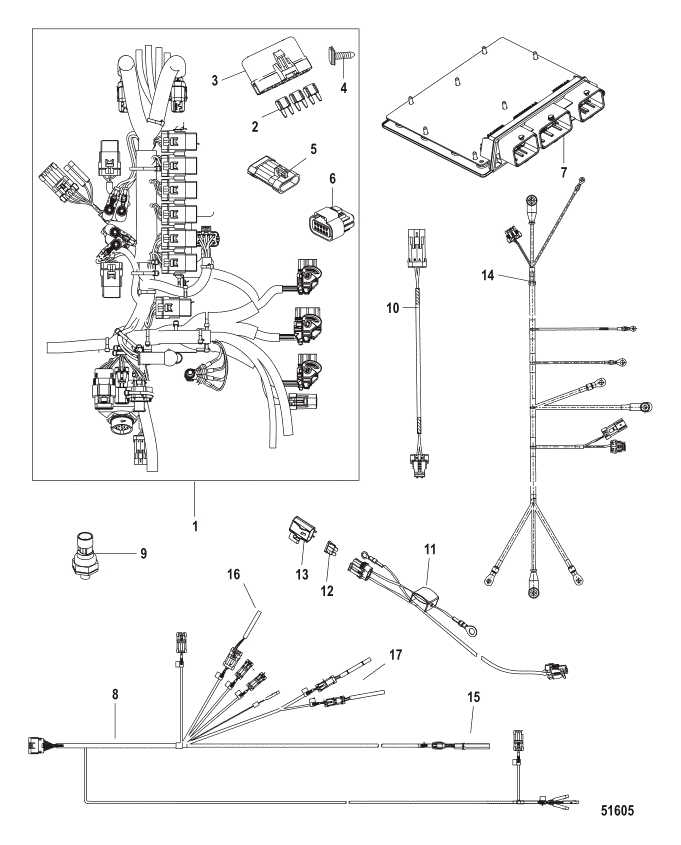

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0180547 | HARNESS ASSEMBLY Engine | 8M0058672 | SS |
|
$1,442.15 | $1,321.65 | 1 | |
| 2 | 8M0207797 | ----FUSE Mini - Gray - 2 Ampere | 8329692 | SS |
|
$7.00 | $6.83 | 1 | |
| 2 | 832969T20 | ----FUSE Mini - Yellow - 20 A | ACT | $6.60 | $6.44 | 5 | |||
| 2 | 832969T15 | ----FUSE Mini - Blue - 15 Amp | ACT | $4.10 | $4.00 | 10 | |||
| 3 | 858754 | ----COVER Fuse | ACT | $9.70 | $9.46 | 3 | |||
| 4 | 828991T | ----CLIP | ACT | $5.10 | $4.98 | 7 | |||
| 5 | 830796A03 | ----CONNECTOR ASSEMBLY Weather Cap - 2 Pin Male | ACT | $4.86 | $4.79 | 1 | |||
| 5 | 830797A01 | ----CONNECTOR ASSEMBLY Weather Cap - 2 Pin Female | ACT | $5.01 | $4.90 | 6 | |||
| 5 | 830796A04 | ----CONNECTOR ASSEMBLY Weather Cap - 4 Position Male | ACT | $8.01 | $7.81 | 1 | |||
| 6 | 8M0210753 | ----TERMINATOR 10 Pin (CAN 1 and 2) | 859318T1 | SS |
|
$21.16 | $20.79 | 1 | |
| 7 | NSS | NOT SOLD SEPARATE |
|
$0.00 | $0.00 | 1 | |||
| 8 | 8M0058446 | HARNESS Transom | ACT | $871.31 | $819.50 | 1 | |||
| 9 | 8M6000631 | SENSOR Pressure Oil, Water, and Fuel | ACT | $80.38 | $78.02 | 1 | |||
| 9 | 8M6000632 | SENSOR Pressure Map | ACT | $84.39 | $81.91 | 1 | |||
| 10 | 8M0056794 | HARNESS Adapter Sensor | ACT |
|
$60.21 | $58.45 | AR | ||
| 11 | 8M0113732 | HARNESS ASSEMBLY DTS, Clean Power, 15 Feet | 888416T04 | SS |
|
$105.85 | $99.65 | 1 | |
| 12 | 862646 | ----FUSE Tan - 5 Ampere | ACT | $4.10 | $4.00 | 1 | |||
| 13 | 828054 | ----COVER Fuse | ACT | $5.90 | $5.76 | 1 | |||
| 14 | 8M0058445 | HARNESS Adaptor Fuel Pump Adaptor | ACT | $895.03 | $841.79 | 1 | |||
| 15 | 8M0106960 | RESISTOR CAP 4 POS 220 OHM (Steering Position Indicator) | ACT | $45.59 | $44.95 | 1 | |||
| 16 | 879346T28 | RESISTOR CAP 4 POS 220 OHM (K-Plane Position Indicator) | ACT | $101.84 | $97.32 | 1 | |||
| 17 | 879346T29 | RESISTOR CAP 2 POS 220 OHM (Fuel Level Sender) | ACT | $65.94 | $64.02 | 2 | |||
| NS | 8M0073021 | HARNESS Transom Harness Extension | ACT | $582.35 | $547.71 | 1 | |||
| NS | 8M0141228 | HARNESS Extension | ACT | $187.19 | $178.89 | 1 |
