| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

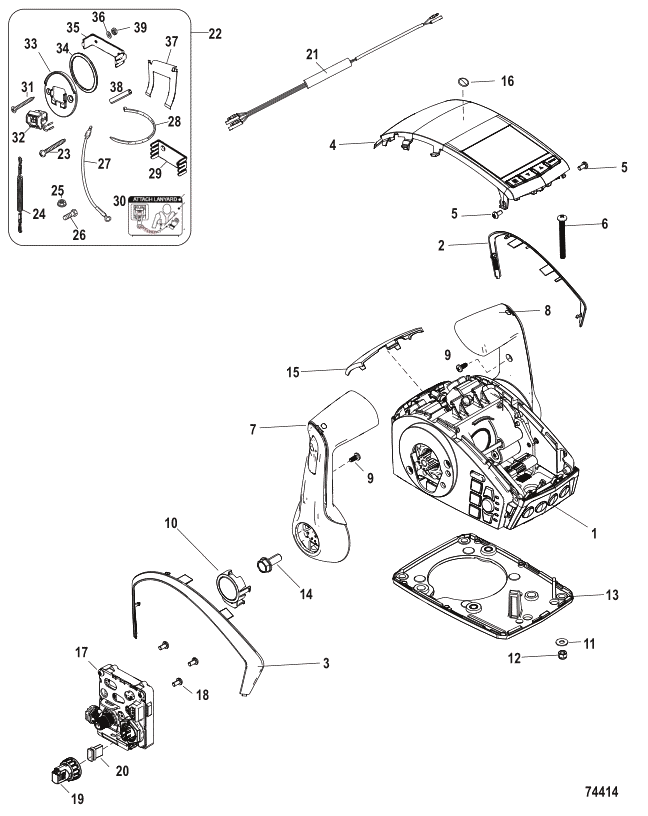

| 1 | 8M0133247 | REMOTE CONTROL Quad Engine Premier | ACT |
|
$4,469.38 | $4,161.71 | 1 | ||
| 2 | 8M0178044 | ----COVER Chrome Accent, STBD | ACT | $26.24 | $25.87 | 1 | |||
| 3 | 8M0178043 | ----COVER Chrome Accent, Port | ACT | $26.24 | $25.87 | 1 | |||
| 4 | 8M0178036 | ----DISPLAY With Top Cover | ACT | $513.81 | $473.52 | 1 | |||
| 5 | 8M0178037 | ----SCREW Torx M4 x 8 | ACT | $3.22 | $3.18 | 2 | |||
| 6 | 8M0178028 | ----SCREW M5 x 50 | ACT | $2.33 | $2.30 | 6 | |||
| 7 | 8M0178031 | ----HANDLE ASSEMBLY Port, With trim | ACT | $283.46 | $270.95 | 1 | |||
| 8 | 8M0178034 | ----HANDLE ASSEMBLY STBD | ACT |
|
$139.66 | $133.51 | 1 | ||
| 9 | 8M0080328 | --------SCREW (.164-18 x .375) | ACT | $0.20 | $0.20 | 2 | |||
| 10 | NSS | --------NOT SOLD SEPARATE Button Bezel |
|
$0.00 | $0.00 | 1 | |||
| 11 | 8M0204666 | ----WASHER (.203 x .500 x .03 | 56681 | SS |
|
$1.80 | $1.76 | 6 | |
| 12 | 401365 | ----NUT (M5) Stainless Steel | ACT | $4.20 | $4.10 | 6 | |||
| 13 | 8M0178042 | ----BASE PLATE Premier | ACT | $36.60 | $36.10 | 1 | |||
| 14 | 8M0214929 | ----SCREW (M8 x 20) | ACT | $11.10 | $10.83 | 1 | |||
| 15 | 8M0178041 | ----ACCESS COVER Standard/Premier | ACT | $7.28 | $7.15 | 1 | |||
| 16 | 8M6001063 | ----DECAL M-ICON | ACT | $7.38 | $7.20 | 1 | |||
| 17 | 8M0178038 | ----DISPLAY MODULE Premier | ACT | $545.55 | $502.80 | 1 | |||
| 18 | 8M0178037 | ----SCREW Torx M4 x 8 | ACT | $3.22 | $3.18 | 3 | |||
| 19 | 8M0178039 | ----CAP USB | ACT | $16.10 | $15.89 | 1 | |||
| 20 | 8M0191443 | ----USB-WIFI | 8M6005024 | SS |
|
$81.78 | $78.66 | 1 | |
| 21 | 8M0139424 | ----HARNESS Diode (Quad) | ACT | $105.79 | $99.61 | 1 | |||
| 22 | 19674A07 | ----SWITCH/LANYARD KIT | ACT |
|
$84.26 | $81.05 | 1 | ||
| 23 | 32866 | --------SCREW (#10-32 x 2.00) Sta | ACT | $3.00 | $2.93 | 2 | |||
| 24 | 8M0164891 | --------LANYARD CORD ASSEMBLY 54 | ACT | $18.83 | $18.42 | 1 | |||
| 25 | 27164 | --------NUT AND LOCKWASHER (#10-3 | ACT | $1.00 | $0.98 | 1 | |||
| 26 | 24231 | --------SCREW (#10-32 x .250) | ACT | $1.10 | $1.08 | 1 | |||
| 27 | 11149A3 | --------CABLE ASSEMBLY | ACT | $4.70 | $4.59 | 1 | |||
| 28 | 816311T | --------TIE STRAP (8.00 Inches) | ACT | $0.59 | $0.58 | 7 | |||
| 29 | 79146 | --------RETAINER | ACT | $5.60 | $5.47 | 1 | |||
| 30 | 8M0087765 | --------DECAL Lanyard, White | ACT | $2.98 | $2.92 | 1 | |||
| 31 | 18303 | --------SCREW (.190-16 x 1.750) Stainless Steel | ACT | $0.90 | $0.88 | 2 | |||
| 32 | 133982 | --------SWITCH ASSEMBLY Stop | ACT | $65.85 | $63.34 | 1 | |||
| 33 | NSS | ----------------NOT SOLD SEPARATE BEZEL |
|
$0.00 | $0.00 | 1 | |||
| 34 | 879925 | --------WASHER (52 mm) | ACT | $3.07 | $3.02 | 1 | |||
| 35 | 18321 | --------CLAMP Mounting | ACT | $7.20 | $7.03 | 1 | |||
| 36 | 24676 | --------WASHER (.200 x .440 x .032) | ACT | $1.50 | $1.47 | 2 | |||
| 37 | 8M0032846 | --------RETAINER Brass | ACT | $4.53 | $4.44 | 1 | |||
| 38 | 623594 | --------INSULATOR (2.00 Inch) | ACT | $0.60 | $0.59 | 1 | |||
| 39 | 68219 | --------NUT (#10-32) Stainless St | ACT | $3.00 | $2.93 | 4 |
