| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

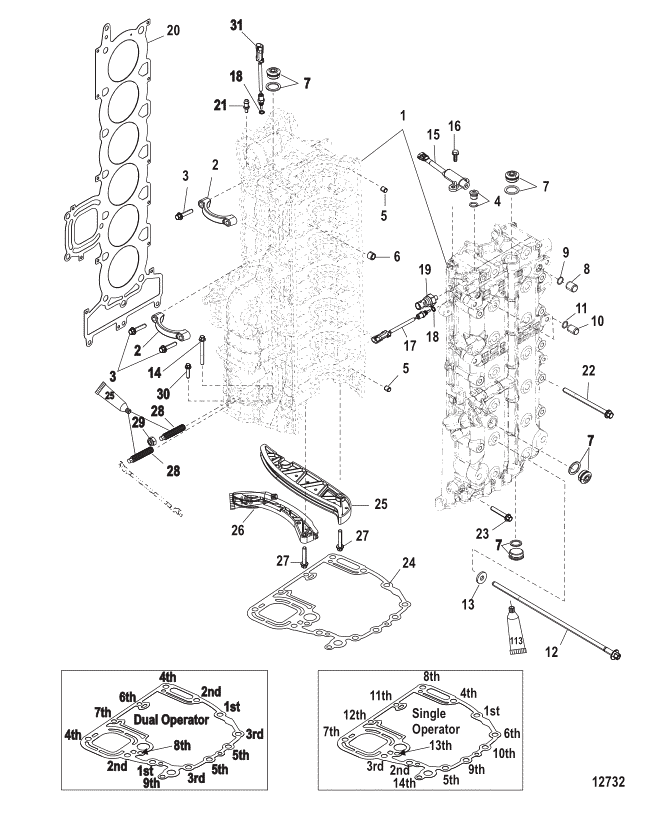

| 1 | 880506A12 | CYLINDER BLOCK | ACT |
|
$3,905.99 | $3,580.58 | 1 | ||
| 2 | 8M0111325 | ----COVER Mounting-Starter Motor | 8M0041759 | SS |
|
$45.99 | $45.19 | 2 | |
| 3 | 8M0103815 | ----SCREW | 88552640 | SS |
|
$4.09 | $4.00 | 4 | |
| 4 | 889767 | ----PLUG | ACT | $15.59 | $15.22 | 1 | |||
| 5 | 43044 | ----PIN-DOWEL-SOLID | ACT | $2.49 | $2.43 | 2 | |||
| 6 | 893392001 | ----BUSHING | ACT | $4.19 | $4.10 | 14 | |||
| 7 | 896951 | ----PLUG | ACT | $16.39 | $16.00 | 4 | |||
| 8 | 880524 | ----PIN | ACT | $4.59 | $4.49 | 1 | |||
| 9 | 884409 | ----O RING | ACT | $1.50 | $1.47 | 1 | |||
| 10 | 884424 | ----PIN-DOWEL | ACT | $4.29 | $4.20 | 1 | |||
| 11 | 884423 | ----O RING | ACT | $1.50 | $1.47 | 1 | |||
| 12 | 8M4501000 | ----SCREW | 8M0021876 | SS |
|
$37.99 | $37.20 | 14 | |
| 13 | 892573001 | ----WASHER | ACT | $2.39 | $2.33 | 14 | |||
| 14 | 8M0103818 | SCREW | 88552675 | SS |
|
$4.69 | $4.59 | 1 | |
| 15 | 8M0082988 | SENSOR ASSY | 8283582 | SS |
|
$120.49 | $113.48 | 1 | |
| 16 | 40011107 | SCREW | ACT | $1.80 | $1.76 | 2 | |||
| 17 | 8M0205787 | SENSOR | 8M0010146 | SS |
|
$33.29 | $32.65 | 1 | |
| 18 | 896699 | ----O-RING | ACT | $12.49 | $12.19 | 2 | |||
| 19 | 8M0142688 | SENSOR | 8M0010469 | SS |
|
$219.49 | $206.55 | 1 | |
| 20 | 8M0033476 | GASKET | ACT | $166.49 | $156.48 | 1 | |||
| 21 | 888517 | PIN | ACT | $11.49 | $11.22 | 1 | |||
| 22 | 8M0193831 | SCREW | 895810115 | SS |
|
$2.79 | $2.72 | 12 | |
| 23 | 8M0193659 | SCREW | 895810050 | SS |
|
$3.29 | $3.21 | 2 | |
| 24 | 880624003 | GASKET Block to Adaptor | ACT | $63.49 | $60.84 | 1 | |||
| 25 | 880559 | GUIDE-FIXED Fixed | ACT | $46.49 | $45.68 | 1 | |||
| 26 | 880557 | GUIDE-MOVEABLE Moveable | ACT | $56.99 | $54.67 | 1 | |||
| 27 | 892456045 | SCREW | ACT | $2.79 | $2.72 | 2 | |||
| 28 | 8M0022160 | STUD | 888849002 | SS |
|
$6.09 | $5.95 | 2 | |
| 29 | 401388 | NUT | ACT | $3.06 | $3.00 | 1 | |||
| 30 | 8M0103814 | SCREW | 88552635 | SS |
|
$4.19 | $4.10 | 1 | |
| 31 | 8M0205787 | SENSOR | 8M0010146 | SS |
|
$33.29 | $32.65 | 1 | |
| - | 880552A07 | GASKET SET | ACT | $383.49 | $360.91 | 1 | |||
| - | 895247A07 | LB L6 4S | ACT | $17,528.55 | $15,699.47 | 1 |
