Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

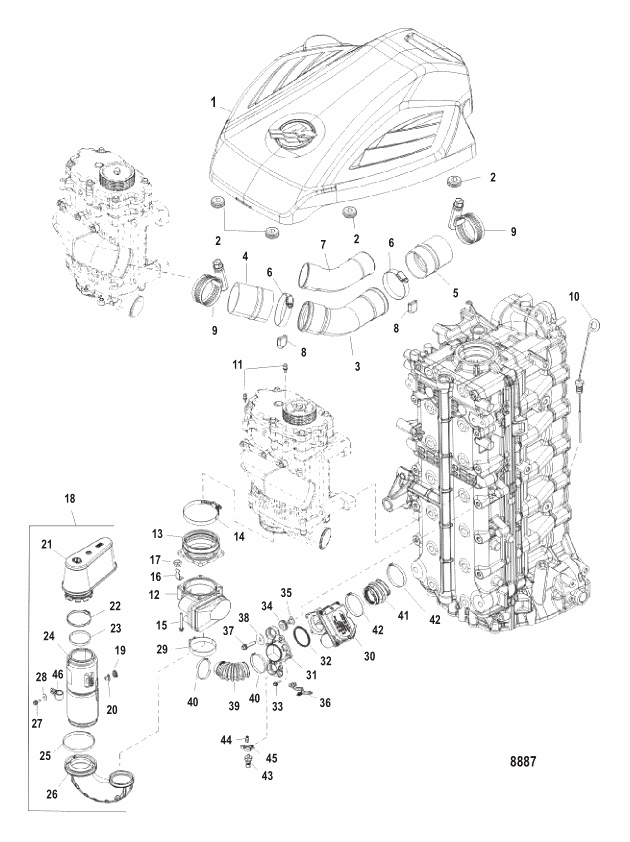

1 887936T04 COVER Flywheel ACT $107.49 $96.54 1
2 8M0190980 ----GROMMET 834985 SS $3.89 $3.79 4
3 8M0035481 TUBE OUTLET ASSEMBLY 893307A01 SS $131.99 $119.00 1
4 8M0035481 ----HOSE (65 Inside Diameter) 893389 REP $131.99 $119.00 1
5 8M0035481 ----HOSE (60 Inside Diameter) 893390 REP $131.99 $119.00 1
6 893342 ----CLAMP ACT $6.39 $6.25 2
7 8M0035481 ----HOSE SLEEVE 893391 REP $131.99 $119.00 1
8 8M0074364 COVER Hose Clamp End 8079923 SS $3.29 $3.21 2
9 893342 CLAMP ACT $6.39 $6.25 2
10 898022 DIPSTICK Oil ACT $61.99 $58.31 1
11 888517 PIN ACT $11.49 $11.22 2
12 8M0113515 THROTTLE CONTROL ASSEMBLY Electronic 888991T03 SS $1,039.49 $930.91 1
13 8M0113513 ----ISOLATOR 880576005 SS $80.99 $75.97 1
14 815504256 ----CLAMP Worm Gear ACT $16.29 $15.90 1
15 88552550 ----SCREW (M6 x 50 MM) Stainl ACT $2.79 $2.72 4
16 884353 ----BRACKET ACT $14.59 $14.24 2
17 816311T TIE STRAP (8.00 Inches) ACT $0.60 $0.59 2
18 892383T06 INTAKE ASSEMBLY Air 892383T05 SS/NLA $0.00 $0.00 1
19 8349851 ----GROMMET ACT $2.39 $2.33 1
20 856954 ----BUSHING ACT $6.99 $6.83 1
21 893318T02 ----FILTER Air 893318T01 SS $148.99 $134.33 1
22 895842 ----CLAMP ACT $32.89 $32.24 1
23 893317 ----GASKET ACT $18.79 $18.42 1
24 8M0007183 ----RESONATOR 892383001 SS $184.99 $166.56 1
25 888988027 ----CLAMP ACT $34.99 $34.29 1
26 893314002 ----DUCT Inlet ACT $209.99 $188.94 1
27 8M0103807 SCREW (M6 x 25 MM) Stainl 88552525 SS $2.39 $2.33 1
28 65567 WASHER (.265 x .750 x .04 ACT $2.89 $2.82 1
29 888988016 CLAMP (96.5 mm) ACT $6.79 $6.64 1
30 884408A08 VALVE KIT Control - Electric Boost 884408A07 SS $750.49 $683.36 1
31 887939007 ----PLATE Boost Valve Mounting ACT $11.89 $11.61 1
32 892079 ----O-RING ACT $1.80 $1.76 1
33 8M0103806 ----SCREW (M6 x 20 MM) Stainl 88552520 SS $2.39 $2.33 4
34 833155 ----GROMMET ACT $4.49 $4.39 2
35 8502341 ----BUSHING ACT $3.09 $3.01 2
36 859376 CLIP ACT $3.99 $3.91 1
37 8M0103814 SCREW (M8 x 35 MM) 88552635 SS $4.19 $4.10 2
38 817274 WASHER (.344 x 1.00 x .063) Stainless Steel ACT $1.40 $1.37 2
39 887937006 HOSE Front ACT $25.79 $25.29 1
40 888988002 CLAMP (57.5 mm) Front Electronic Boost Control ACT $5.59 $5.47 2
41 887938003 TUBE Rear ACT $22.99 $22.59 1
42 888988004 CLAMP (62.0 mm) Rear Electronic Boost Control ACT $5.69 $5.56 2
43 881879T25 SENSOR ASSEMBLY Pitot 881879A16 SS $211.49 $190.67 1
44 8M0207782 ----FITTING 892403 SS $18.39 $17.95 1
45 883066 ----CLIP (.865) ACT $2.29 $2.24 1
46 8589781 CLIP Fuel Hose (Use where Applicable) ACT $15.69 $15.31 1
