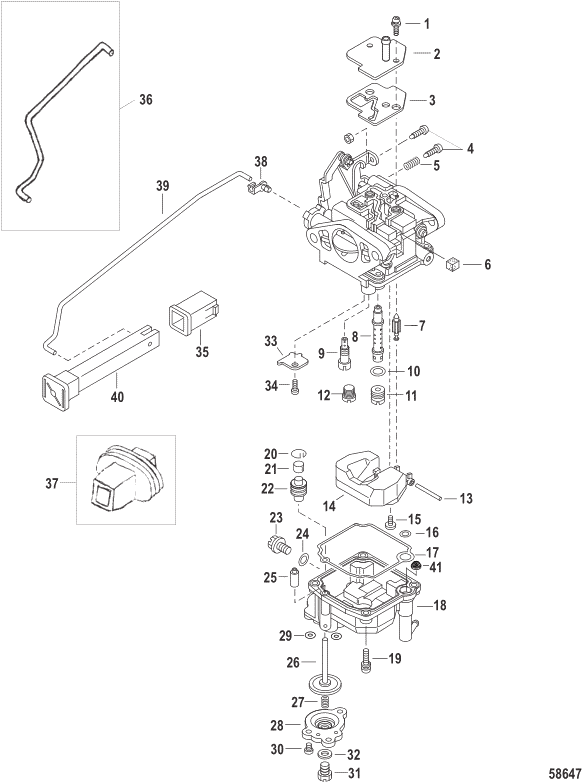

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| - | 8M0176126 | CARBURETOR | 8M0104462 | REP |
|
$726.14 | $683.16 | 1 | |
| - | 8M0176126 | CARBURETOR | 8M0173875 | SS |
|
$726.14 | $683.16 | 1 | |
| - | 8M0176126 | CARBURETOR | 8M0104464 | REP |
|
$726.14 | $683.16 | 1 | |
| - | 8M0176130 | CARBURETOR | 895110T12 | SS |
|
$783.93 | $737.53 | 1 | |
| - | 8M0176130 | CARBURETOR | 8M0108371 | REP |
|
$783.93 | $737.53 | 1 | |
| - | 8M0176130 | CARBURETOR | 8M0173877 | SS |
|
$783.93 | $737.53 | 1 | |
| - | 8M0176130 | CARBURETOR | 895110A16 | SS |
|
$783.93 | $737.53 | 1 | |
| - | 8M0174374 | CARBURETOR | 8M0104461 | SS |
|
$421.86 | $403.24 | 1 | |
| - | 8M0174374 | CARBURETOR | ACT |
|
$421.86 | $403.24 | 1 | ||
| - | 8M0176128 | CARBURETOR | 8M0150183 | SS |
|
$329.34 | $310.14 | 1 | |
| 1 | 809571003 | ----SCREW | ACT | $5.20 | $5.08 | 2 | |||
| 2 | 855540002 | ----COVER | ACT | $23.84 | $23.41 | 1 | |||
| 3 | 855541003 | ----GASKET | ACT | $15.00 | $14.63 | 1 | |||
| 4 | 803509A17 | ----SCREW Idle Adjustment (15 mm) | 803509012 | REP |
|
$18.58 | $18.25 | 2 | |
| 4 | 803509A17 | ----SCREW AND SPRING KIT (18 mm) | ACT |
|
$18.58 | $18.25 | 2 | ||
| 5 | 16264003 | --------SPRING (14 mm) | ACT | $5.10 | $4.98 | 1 | |||
| 5 | 803509A17 | ----SPRING (11 mm) | 162641 | REP |
|
$18.58 | $18.25 | 1 | |
| 6 | 895112002 | ----GROMMET | 895112 | SS |
|
$9.70 | $9.46 | 1 | |
| 7 | 809570002 | ----FLOAT VALVE | ACT | $37.58 | $36.91 | 1 | |||
| 8 | 802700003 | ----MAIN NOZZLE | ACT |
|
$55.17 | $53.06 | 1 | ||
| 8 | 8M0173873 | MAIN NOZZLE | ACT |
|
$39.00 | $38.30 | 1 | ||
| 8 | 802700008 | ----MAIN NOZZLE | ACT |
|
$47.08 | $46.24 | 1 | ||
| 8 | 802700004 | ----MAIN NOZZLE | ACT |
|
$48.67 | $47.79 | 1 | ||
| 9 | 803689003 | ----JET Pilot (#39) | ACT |
|
$54.50 | $52.42 | 1 | ||
| 9 | 803689007 | ----JET Pilot (#40) | ACT |
|
$50.17 | $48.26 | 1 | ||
| 10 | 825057004 | ----O-RING | ACT | $7.80 | $7.61 | 1 | |||
| 11 | 8M0172936 | ----JET Main (#92) | 802701004 | SS |
|
$28.75 | $28.23 | 1 | |
| 11 | 802701009 | ----JET Main (#93) | ACT |
|
$22.42 | $22.02 | 1 | ||
| 11 | 802701005 | ----JET Main (#76) | ACT |
|
$23.00 | $22.59 | 1 | ||
| 12 | 802702002 | ----PLUG | ACT |
|
$18.10 | $17.65 | 1 | ||
| 12 | 802702002 | ----PLUG | ACT |
|
$18.10 | $17.65 | 1 | ||
| 13 | 162561 | ----PIN Float Arm | ACT | $7.80 | $7.61 | 1 | |||
| 14 | 162532 | ----FLOAT | ACT | $27.25 | $26.76 | 1 | |||
| 15 | 16196 | ----SCREW | ACT | $4.20 | $4.10 | 1 | |||
| 16 | 8M0174323 | ----O-Ring | ACT | $4.60 | $4.49 | 1 | |||
| 17 | 802699002 | ----GASKET | ACT | $13.40 | $13.13 | 1 | |||
| 18 | 802690004 | ----FLOAT BOWL | ACT |
|
$158.58 | $149.34 | 1 | ||
| 18 | 802694010 | ----FLOAT BOWL | ACT |
|
$178.58 | $168.18 | 1 | ||
| 18 | 802690009 | ----FLOAT BOWL | ACT |
|
$183.75 | $173.04 | 1 | ||
| 18 | 802694010 | ----FLOAT BOWL | 802694011 | SS |
|
$178.58 | $168.18 | 1 | |
| 19 | 16260 | ----SCREW (M4 x 12) | ACT | $4.99 | $4.88 | 4 | |||
| 20 | 8M0123420 | ----RING Retaining | 895113 | SS |
|
$8.01 | $7.81 | 1 | |
| 21 | 895114 | ----CAP | ACT | $6.00 | $5.86 | 1 | |||
| 22 | 895115 | ----BOOT Rubber | ACT | $9.40 | $9.17 | 1 | |||
| 23 | 809578005 | ----SCREW Drain | ACT | $13.70 | $13.36 | 1 | |||
| 24 | 802691 | ----GASKET | ACT | $5.80 | $5.66 | 1 | |||
| 25 | 851812005 | ----CHECK VALVE | ACT | $20.92 | $20.54 | 1 | |||
| 26 | 853830001 | ----PLUNGER | ACT | $39.99 | $39.43 | 1 | |||
| 27 | 895116 | ----SPRING | ACT | $4.50 | $4.39 | 1 | |||
| 28 | 895117001 | ----COVER | ACT |
|
$21.50 | $21.12 | 1 | ||
| 29 | 898103224 | ----O-RING | ACT | $5.60 | $5.47 | 2 | |||
| 30 | 855544013 | ----SCREW | ACT | $3.60 | $3.52 | 3 | |||
| 31 | 803509013 | ----SCREW Drain | ACT |
|
$16.83 | $16.53 | 1 | ||
| 32 | 855567002 | ----GASKET | ACT |
|
$8.20 | $8.00 | 1 | ||
| 33 | 802705001 | ----PLATE | ACT | $9.30 | $9.07 | 1 | |||
| 34 | 851813002 | ----SCREW | ACT | $3.70 | $3.61 | 1 | |||
| 35 | 851858005 | BUSHING | ACT |
|
$7.80 | $7.61 | 1 | ||
| 36 | 8M0121496 | ROD Choke Link | 855561008 | SS |
|
$60.17 | $57.87 | 1 | |
| 37 | 881305007 | GROMMET | ACT |
|
$53.67 | $51.62 | 1 | ||
| 38 | 16333 | ROD Snap | ACT | $7.10 | $6.93 | 1 | |||
| 39 | 855561007 | ROD Choke Link | ACT |
|
$17.20 | $16.78 | 1 | ||
| 40 | 8M0155127 | KNOB Choke | 855565001 | SS |
|
$13.80 | $13.46 | 1 | |
| 41 | 898101988 | FILTER Fuel | ACT | $7.59 | $7.42 | 1 | |||
| - | 8M0044576 | KIT Carb Repair | ACT |
|
$190.58 | $177.88 | 1 |
