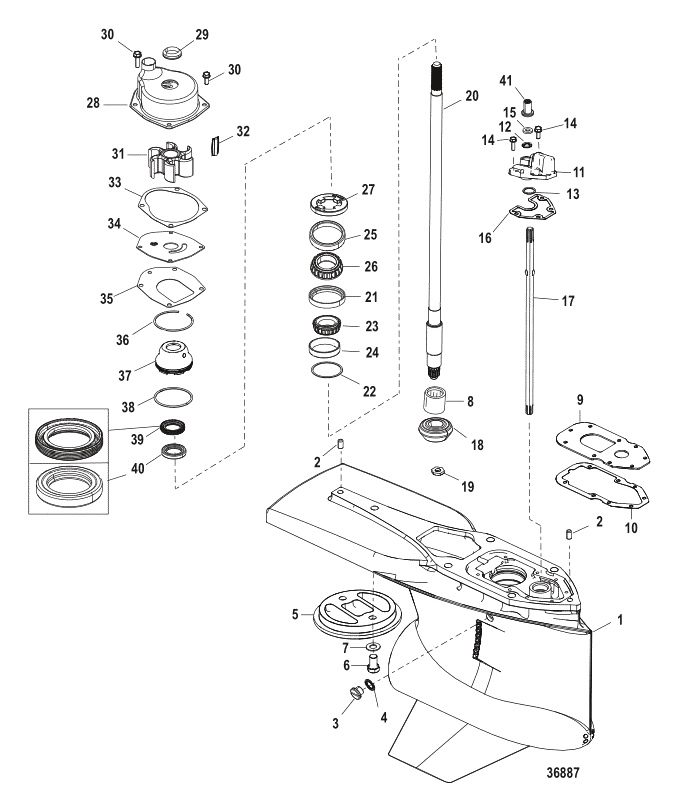

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| - | 8M0078252 | ORD 8M0049869 | 880686T60 | REP |
|
$8,657.15 | $7,936.18 | 1 | |
| - | 880686T61 | GC 350 XL 1.75:1 | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 8M0228067 | ORD 8M0049872 | 880686T63 | ACT | $0.00 | $0.00 | 1 | ||
| - | 880686T65 | GC 350 CL 1.75:1 | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 8M0215264 | ORD1600-8M0049871 | 880686T62 | ACT | $0.00 | $0.00 | 1 | ||
| - | 880686T64 | GC 350 CXXL1.75:1 | NLA |
|
$0.00 | $0.00 | 1 | ||
| 1 | 880686T66 | ----GEAR HOUSING BASC | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 43044 | --------PIN-DOWEL-SOLID | ACT | $2.49 | $2.43 | 2 | |||
| 3 | 79953A04 | --------SCREW KIT-DRAIN | ACT | $6.79 | $6.64 | 1 | |||
| 4 | 8M0204693 | --------SEAL | 830749 | SS |
|
$5.19 | $5.08 | 1 | |
| 5 | 847635001 | --------ANODE | ACT | $42.34 | $41.74 | 1 | |||
| 6 | 8M0036047 | --------SCREW | ACT | $2.89 | $2.85 | 2 | |||
| 7 | 841388 | --------WASHER | ACT | $0.90 | $0.88 | 2 | |||
| 8 | 817072 | --------BEARING | ACT | $90.49 | $86.73 | 1 | |||
| 9 | 8M0033810 | ----PLATE | ACT | $59.37 | $57.62 | 1 | |||
| 10 | 8M0033809 | ----GASKET | ACT | $14.58 | $14.37 | 1 | |||
| 11 | 8M8022275 | ----COVER ASSY | ACT |
|
$58.65 | $56.93 | 1 | ||
| 12 | 8M0204708 | --------SEAL | 8164641 | SS |
|
$16.99 | $16.58 | 1 | |
| 13 | 896522 | --------O RING | ACT | $1.80 | $1.76 | 1 | |||
| 14 | 8M0204706 | ----SCREW | 1993720 | SS |
|
$1.20 | $1.18 | 4 | |
| 15 | 77674 | ----WASHER | ACT | $1.80 | $1.76 | 1 | |||
| 16 | 8M0033641 | ----GASKET | ACT | $19.95 | $19.67 | 1 | |||
| 17 | 824145 | ----SHAFT-SHIFT-LOWER | ACT | $90.99 | $87.29 | 1 | |||
| 18 | NSS | --------NOT SOLD SEPARATE Pinion Gear 16 Teeth |
|
$0.00 | $0.00 | 1 | |||
| 19 | 8M0030976 | ----NUT | ACT | $48.04 | $47.36 | 1 | |||
| 20 | 888572T01 | ----DRIVESHAFT-LG | ACT | $437.49 | $417.98 | 1 | |||
| 20 | 888573T01 | ----DRIVESHAFT-XL | ACT | $511.49 | $480.89 | 1 | |||
| 20 | 888574T01 | ----DRIVESHAFT-XXL | ACT | $460.49 | $440.11 | 1 | |||
| 21 | 884327A02 | ----BEARING/SHIM KIT | ACT |
|
$223.49 | $210.48 | 1 | ||
| 22 | 8M0063268 | --------ORD 10-8M0063268 | 38657A1 | REP |
|
$30.89 | $30.28 | AR | |
| 23 | NSS | ----------------NOT SOLD SEPARATE Roller Bearing Assembly |
|
$0.00 | $0.00 | 1 | |||
| 24 | NSS | ----------------NOT SOLD SEPARATE Cup |
|
$0.00 | $0.00 | 1 | |||
| 25 | NSS | ----------------NOT SOLD SEPARATE Roller Bearing Assembly |
|
$0.00 | $0.00 | 1 | |||
| 26 | NSS | ----------------NOT SOLD SEPARATE Cup |
|
$0.00 | $0.00 | 1 | |||
| 27 | 8245191 | ----RETAINER | ACT | $6.99 | $6.83 | 1 | |||
| 28 | 817275A13 | ----WATER PUMP-COMP | ACT |
|
$212.99 | $200.19 | 1 | ||
| 29 | 861415A1 | --------SEAL KIT-MCM | ACT | $15.39 | $15.02 | 1 | |||
| 30 | 8M0204706 | --------SCREW | 1993720 | SS |
|
$1.20 | $1.18 | 4 | |
| 31 | 43026T2 | --------IMPELLER | ACT | $36.49 | $35.81 | 1 | |||
| 32 | 8M0204723 | --------KEY | 8M0032833 | SS |
|
$4.39 | $4.30 | 1 | |
| 33 | 8172771 | --------GASKET | ACT | $5.69 | $5.56 | 1 | |||
| 34 | 8M0204709 | --------FACEPLATE-W/P | 8172761 | SS |
|
$14.59 | $14.24 | 1 | |
| 35 | 430331 | --------GASKET | ACT | $11.09 | $10.83 | 1 | |||
| 36 | 880719 | --------RING-RETAINING | ACT | $1.50 | $1.47 | 1 | |||
| 37 | 8M8023745 | --------CARRIER ASSY | 8M8022274 | SS |
|
$86.65 | $84.11 | 1 | |
| 38 | 8M0142854 | ------------O RING | 896523 | SS |
|
$1.10 | $1.08 | 1 | |
| 39 | NSS | ------------------------NOT SOLD SEPARATE Oil Seal |
|
$0.00 | $0.00 | 1 | |||
| 40 | NSS | ------------------------NOT SOLD SEPARATE Oil Seal |
|
$0.00 | $0.00 | 1 | |||
| 41 | 43585 | COUPLING | ACT | $31.89 | $31.26 | 1 | |||
| - | 830749A02 | SEAL KIT-G/H | ACT | $192.49 | $181.05 | 1 | |||
| - | 8M0100526 | REPAIR KIT - IMP | 43026Q06 | SS |
|
$66.99 | $64.29 | 1 | |
| - | 817275A08 | REPAIR KIT-W/P | ACT | $117.99 | $110.97 | 1 |
