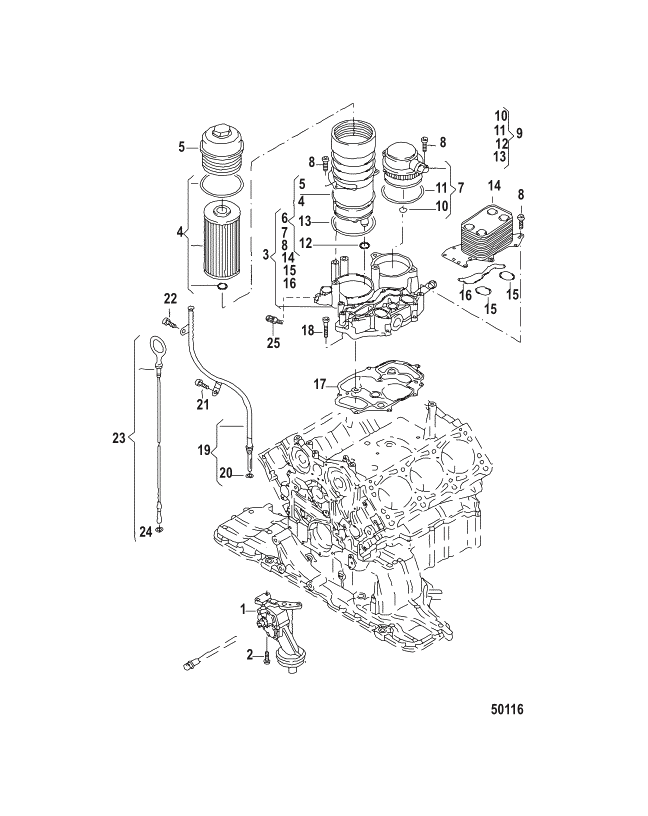

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0066632 | OIL PUMP | 8M0066631 | SS |  | $464.73 | $446.32 | 1 | |
| 2 | 8M0068356 | SCREW M8x30 | ACT | $2.20 | $2.15 | 3 | |||
| 3 | 8M0066635 | HEAD | ACT | $984.33 | $933.15 | 1 | |||
| 4 | 8M0066483 | FILTER ELEMENT Oil | ACT | $45.99 | $45.09 | 1 | |||
| 5 | 8M0066478 | PLUG | ACT | $120.75 | $113.72 | 1 | |||
| 6 | 8M0066475 | RESERVOIR ASSEMBLY | ACT | $297.75 | $280.40 | 1 | |||
| 7 | 8M0066432 | OIL SEPARATOR | ACT | $343.73 | $330.12 | 1 | |||
| 8 | 8M0068419 | SCREW M5x12 | ACT | $1.70 | $1.66 | 12 | |||
| - | 8M0068423 | NUT M6 For 8M0068419 | ACT | $1.30 | $1.27 | AR | |||
| 9 | 8M0066518 | SEALING KIT | ACT | | $68.17 | $65.57 | 1 | ||
| 10 | NSS | --------NOT SOLD SEPARATE Gasket | | $0.00 | $0.00 | 1 | |||
| 11 | NSS | --------NOT SOLD SEPARATE Gasket | | $0.00 | $0.00 | 1 | |||
| 12 | NSS | --------NOT SOLD SEPARATE Gasket | | $0.00 | $0.00 | 1 | |||
| 13 | NSS | --------NOT SOLD SEPARATE Gasket | | $0.00 | $0.00 | 1 | |||
| 14 | 8M0066641 | COOLER | ACT | $435.07 | $417.83 | 1 | |||
| 15 | 8M0066481 | O-RING | ACT | $41.42 | $40.67 | 2 | |||
| 16 | 8M0066638 | SEAL | ACT | $47.08 | $46.24 | 1 | |||
| 17 | 8M0066637 | GASKET | ACT | $25.17 | $24.72 | 1 | |||
| 18 | 8M0068358 | SCREW M6x56 | ACT | $1.60 | $1.57 | 8 | |||
| 19 | 8M0066640 | TUBE, OIL GAUGE | ACT | $89.58 | $86.17 | 1 | |||
| 20 | 8M0066271 | O-RING 12x2 | ACT | $7.00 | $6.83 | 1 | |||
| 21 | 8M0068239 | SCREW M6x10 | NLA | | $0.70 | $0.69 | 1 | ||
| 22 | 8M0068298 | SCREW M6x12 | ACT | $0.90 | $0.88 | 2 | |||
| 23 | 8M0066639 | DIPSTICK | ACT | | $29.25 | $28.73 | 1 | ||
| 24 | 8M0068491 | ----O-RING 5x1.9 | ACT | $2.10 | $2.05 | 1 | |||
| 25 | 8M0090135 | SWITCH Oil Pressure | ACT | $46.75 | $45.91 | 1 |
