| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

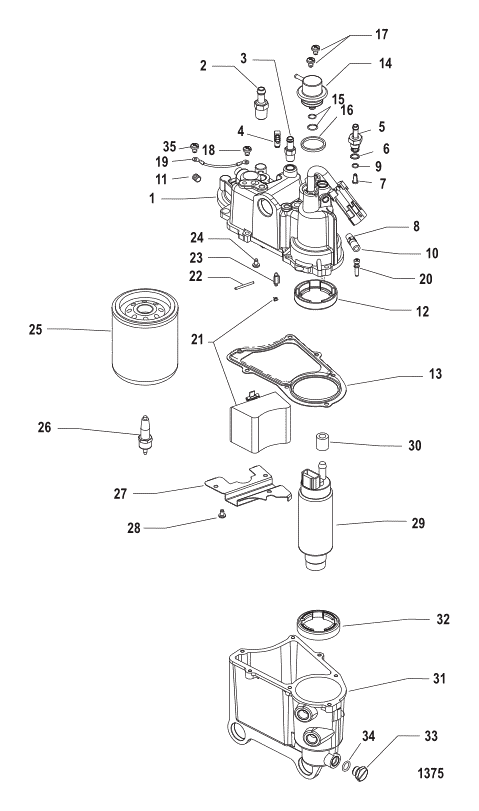

| 1 | 883245T04 | COVER KIT Vapor Separator | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 881740 | ----FITTING Straight | ACT | $11.09 | $10.83 | 1 | |||
| 3 | 883249 | ----FITTING | ACT | $16.49 | $16.09 | 1 | |||
| 4 | NSS | --------NOT SOLD SEPARATE Elbow |
|
$0.00 | $0.00 | 1 | |||
| 5 | 885186A1 | ----FITTING KIT | ACT | $31.99 | $31.43 | 1 | |||
| 6 | 831985 | ----O-RING (.468 x .078) | ACT | $5.29 | $5.17 | 1 | |||
| 7 | 885188 | ----FILTER | ACT | $18.49 | $18.04 | 1 | |||
| 8 | 883219 | ----VALVE | ACT | $27.49 | $26.93 | 1 | |||
| 9 | 8M0062785 | ----O-RING | 883209 | SS |
|
$6.09 | $5.95 | 1 | |
| 10 | 883220 | ----CAP | ACT | $2.99 | $2.92 | 1 | |||
| 11 | 883208 | ----PLUG | ACT | $5.69 | $5.56 | 1 | |||
| 12 | 883248 | ----SEAL | ACT | $15.49 | $15.12 | 1 | |||
| 13 | 883252 | GASKET | ACT | $20.99 | $20.54 | 1 | |||
| 14 | 883257T1 | REGULATOR | ACT |
|
$310.99 | $280.07 | 1 | ||
| 15 | 883593A1 | ----O-RING KIT | ACT | $17.49 | $17.19 | 1 | |||
| 16 | 883258 | ----WASHER | ACT | $4.99 | $4.88 | 1 | |||
| 17 | 883261 | SCREW (M5 x .8) | ACT | $8.69 | $8.49 | 2 | |||
| 18 | 883261 | SCREW (M5 x .8) | ACT | $8.69 | $8.49 | 1 | |||
| 19 | 881831 | WIRE ASSEMBLY | ACT | $9.89 | $9.66 | 1 | |||
| 20 | 808612 | SCREW AND WASHER (#8-32 x | ACT | $2.69 | $2.62 | 7 | |||
| 21 | 883253A1 | FLOAT KIT | ACT |
|
$70.49 | $66.39 | 1 | ||
| 22 | F10064 | ----SHAFT | ACT | $4.59 | $4.49 | 1 | |||
| 23 | 883247A1 | ----VALVE/SEAT KIT Inlet | ACT | $70.99 | $66.87 | 1 | |||
| 24 | 883223 | ----SCREW (M6 x 16) | ACT | $5.19 | $5.08 | 1 | |||
| 25 | 18458Q4 | FILTER Fuel-Water Separating | ACT | $31.09 | $30.53 | 1 | |||
| 26 | 8M0204710 | PROBE | 8285861 | SS |
|
$19.39 | $18.92 | 1 | |
| 27 | 889318002 | BAFFLE Fuel | ACT | $36.99 | $36.34 | 1 | |||
| 28 | 883223 | SCREW (M6 x 16) | ACT | $5.19 | $5.08 | 3 | |||
| 29 | 881705T1 | PUMP KIT | ACT |
|
$481.49 | $445.56 | 1 | ||
| 30 | 8M6000589 | ----SLEEVE | 855428 | SS |
|
$23.49 | $23.08 | 1 | |
| 31 | 883256T1 | BOWL KIT | ACT |
|
$72.49 | $68.20 | 1 | ||
| 32 | 883248 | ----SEAL | ACT | $15.49 | $15.12 | 1 | |||
| 33 | 855435A1 | PLUG KIT | ACT |
|
$28.29 | $27.74 | 1 | ||
| 34 | 8M0062785 | ----O-RING | 883209 | SS |
|
$6.09 | $5.95 | 1 | |
| 35 | 16955 | SCREW (M6 x 8) | ACT | $37.99 | $37.15 | 1 |
