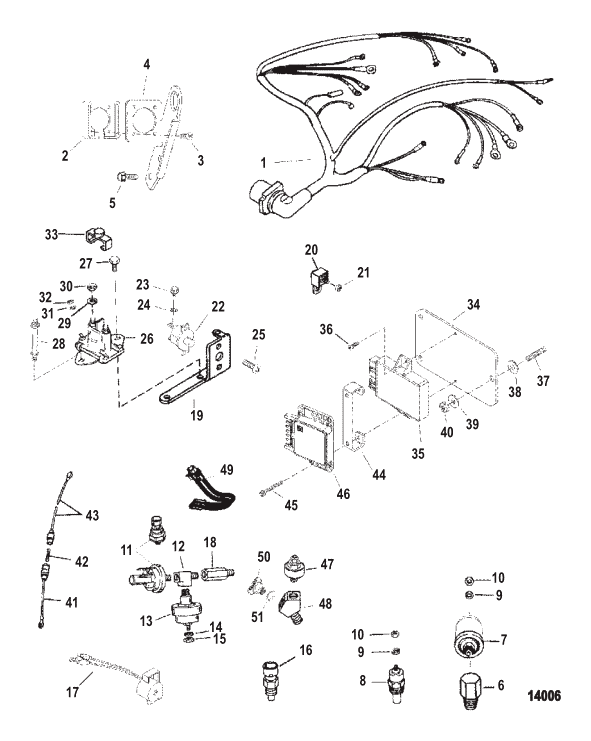

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 861515A2 | HARNESS ASSEMBLY Wiring | NLA |  | $0.00 | $0.00 | 1 | ||
| 1 | 862163T03 | HARNESS ASSEMBLY Wiring | 862163T1 | SS | | $391.33 | $368.52 | 1 | |
| 1 | 862163T02 | HARNESS ASSEMBLY Wiring | ACT | | $393.92 | $370.96 | 1 | ||
| 1 | 861236A2 | HARNESS ASSEMBLY Wiring | NLA | | $0.00 | $0.00 | 1 | ||
| 1 | 862575T03 | HARNESS ASSEMBLY Wiring | 862575T1 | SS | | $490.29 | $468.64 | 1 | |
| 1 | 862575T02 | HARNESS ASSEMBLY Wiring | ACT | | $439.07 | $419.69 | 1 | ||
| 1 | 861236A2 | HARNESS ASSEMBLY Wiring | NLA | | $0.00 | $0.00 | 1 | ||
| 1 | 862575T03 | HARNESS ASSEMBLY Wiring | 862575T1 | SS | | $490.29 | $468.64 | 1 | |
| 1 | 862575T02 | HARNESS ASSEMBLY Wiring | ACT | | $439.07 | $419.69 | 1 | ||
| 2 | 26079A2 | PLATE KIT Wire Harness Mount | ACT | | $16.92 | $16.62 | 1 | ||
| 3 | 15001 | ----SCREW (#8-16 x .875) | ACT | $1.60 | $1.57 | 3 | |||
| 4 | 865480T | BRACKET Harness Mounting/Lifting Eye | 807453T | REP | | $58.32 | $56.11 | 1 | |
| 5 | 98261 | SCREW (.375-16 x .750) | ACT | $1.20 | $1.18 | 2 | |||
| 6 | 8053281 | FITTING Elbow (90 Degree - .125) (90 Degree) | ACT | $18.10 | $17.65 | 1 | |||
| 6 | 32974 | FITTING (.125-27) Adaptor Straight | ACT | $5.70 | $5.56 | 1 | |||
| 7 | 8M0068784 | SENDER ASSEMBLY | 815425T | SS | | $91.99 | $88.60 | 1 | |
| 7 | 37293T | SENDER ASSEMBLY | ACT | | $205.66 | $193.68 | OPT | ||
| 8 | 806490T | SENDER | ACT | $40.99 | $40.18 | 1 | |||
| 8 | 49734 | SENDER | ACT | | $90.42 | $86.97 | OPT | ||
| 9 | 26996 | ----LOCKWASHER (#10) Stainles | ACT | $1.20 | $1.18 | 2 | |||
| 10 | 68219 | ----NUT (#10-32) Stainless St | ACT | $3.00 | $2.93 | 2 | |||
| 11 | 8M0210755 | SWITCH Oil Pressure | 805024 | SS | | $58.99 | $56.90 | 1 | |
| 11 | 8M0070108 | SWITCH | 864252 | SS | | $41.08 | $40.34 | 1 | |
| 11 | 8M0210755 | SWITCH Oil Pressure | 805024 | SS | | $58.99 | $56.90 | 1 | |
| 11 | 8M0070108 | SWITCH Oil Pressure | 864252 | SS | | $41.08 | $40.34 | 1 | |
| 12 | 286241 | FITTING T | 28624 | SS | | $13.50 | $13.17 | 1 | |
| 13 | 805605A1 | SWITCH ASSEMBLY | ACT | | $42.17 | $41.42 | 1 | ||
| 14 | 26996 | ----LOCKWASHER (#10) Stainles | ACT | $1.20 | $1.18 | 1 | |||
| 15 | 68219 | ----NUT (#10-32) Stainless St | ACT | $3.00 | $2.93 | 1 | |||
| 16 | 805218T | SENSOR | ACT | $70.49 | $67.98 | 1 | |||
| 17 | 816492A6 | ALARM KIT | ACT | $121.34 | $114.26 | 1 | |||
| 18 | 805059 | FITTING | ACT | $18.20 | $17.75 | 1 | |||
| 19 | 899719T01 | BRACKET Electrical | 805368T | SS | | $44.58 | $43.78 | 1 | |
| 20 | 79023T56 | FUSE ASSEMBLY 55 Ampere | 79023A56 | SS | | $45.99 | $45.17 | 1 | |
| 20 | 79023A91 | FUSE ASSEMBLY 90 Ampere | ACT | $51.22 | $49.27 | 1 | |||
| 21 | 21825 | NUT (.250-28) | ACT | $1.70 | $1.66 | 1 | |||
| 22 | 11178A01 | BREAKER Circuit - 50 Ampere | 806950 | REP | | $121.49 | $113.00 | 1 | |
| 23 | 68513 | ----SCREW (#10-32 x .375) Stainless Steel | ACT | $1.40 | $1.37 | 2 | |||
| 24 | 26996 | ----LOCKWASHER (#10) Stainles | ACT | $1.20 | $1.18 | 2 | |||
| 25 | 57583T | SCREW (#8-32 x .375) | 57583 | SS | | $1.40 | $1.37 | 2 | |
| 26 | 8M0185622 | SOLENOID | 96158T | SS | | $39.99 | $39.43 | 1 | |
| 27 | 805564 | SCREW (.250-20 x .750) | ACT | | $1.70 | $1.66 | 3 | ||
| 27 | 805564 | SCREW (.250-20 x .750) | ACT | | $1.70 | $1.66 | 2 | ||
| 28 | 805459 | STUD Mercathode Mounting | ACT | | $11.10 | $10.83 | 1 | ||
| 29 | 26992 | LOCKWASHER (.250) Stainle | ACT | $1.20 | $1.18 | 2 | |||
| 30 | 94330 | NUT (.250-20) Brass | ACT | $1.70 | $1.66 | 2 | |||
| 31 | 26996 | LOCKWASHER (#10) Stainles | ACT | $1.20 | $1.18 | 2 | |||
| 32 | 68219 | NUT (#10-32) Stainless St | ACT | $3.00 | $2.93 | 2 | |||
| 33 | 97861 | INSULATOR | ACT | $5.20 | $5.08 | 1 | |||
| 34 | 861516 | BRACKET | ACT | $16.83 | $16.53 | 1 | |||
| 35 | 861459T02 | ICM MODULE Ignition Control Module | 861459T1 | SS/NLA | | $0.00 | $0.00 | 1 | |
| 35 | 861460T02 | ICM MODULE Ignition Control Module | 861460T1 | SS/NLA | | $0.00 | $0.00 | 1 | |
| 35 | 861253T02 | ICM MODULE Ignition Control Module | 861253T1 | SS/NLA | | $0.00 | $0.00 | 1 | |
| 35 | 861254T02 | ICM MODULE Ignition Control Module | 861254T1 | SS/NLA | | $0.00 | $0.00 | 1 | |
| 36 | 861520 | SCREW (#10-32 x .500) | ACT | | $0.70 | $0.69 | 2 | ||
| 37 | 24323 | SET SCREW (.250-20 x 1.25 | ACT | $4.20 | $4.10 | 3 | |||
| 38 | 96457 | WASHER Phenolic (.27 x .81 x .062) | ACT | $1.70 | $1.66 | 3 | |||
| 39 | 35462 | WASHER (.2656 x .625 x .0 | ACT | $1.80 | $1.76 | 3 | |||
| 40 | 64015 | NUT (.250-20) | ACT | $2.81 | $2.75 | 3 | |||
| 41 | 95084A9 | CABLE ASSEMBLY (91.00 Inches) Red/Purple Strip | ACT | | $30.50 | $29.95 | 1 | ||
| 42 | 8M0207796 | FUSE 20 Ampere | 79091 | SS | | $8.20 | $8.00 | 1 | |
| 43 | 95084A10 | CABLE ASSEMBLY (5.00 Inches) Red | ACT | | $9.50 | $9.27 | 1 | ||
| 44 | 861517 | BRACKET | ACT | | $19.30 | $18.82 | 1 | ||
| 45 | 41408 | SCREW (#10-32 x 1.50) | ACT | | $3.40 | $3.32 | 2 | ||
| 46 | 8M0154747 | MODULE Knock Control | 806611T | REP | | $396.71 | $379.20 | 1 | |
| 47 | 806612T | SENSOR Knock | ACT | | $198.00 | $186.46 | 1 | ||
| 48 | 8067051 | FITTING Dual | ACT | | $99.33 | $95.54 | 1 | ||
| 49 | 864388 | HARNESS ASSEMBLY Oil Sensor Adaptor | ACT | $35.25 | $34.62 | 1 | |||
| 50 | 8M0119211 | PLUG KIT (.500-13) Royal Fitting | 806608A1 | SS | | $10.18 | $9.95 | 1 | |
| 51 | 62706 | O-RING (.426 x .070) | ACT | $2.39 | $2.33 | 1 |
