| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

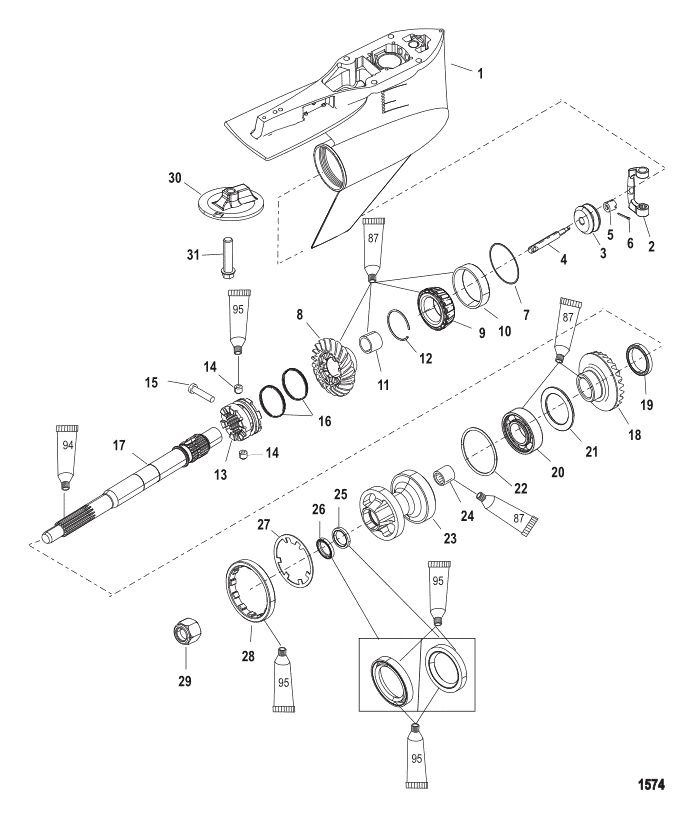

| - | 842004T26 | GEAR HOUSING ASSEMBLY Complete | 859399T22 | SS |
|
$10,103.60 | $9,048.63 | 1 | |
| - | 842004T26 | GEAR HOUSING ASSEMBLY Complete | 859399T39 | SS |
|
$10,103.60 | $9,048.63 | 1 | |
| - | 842004T28 | GEAR HOUSING ASSEMBLY Complete | 859399T25 | SS |
|
$9,665.00 | $8,859.45 | 1 | |
| - | 842004T10 | GEAR HOUSING ASSEMBLY Complete | 859399T41 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| - | 842004T24 | GEAR HOUSING ASSEMBLY Complete | 859399T43 | SS |
|
$9,905.00 | $9,075.53 | 1 | |
| - | 842004T18 | GEAR HOUSING ASSEMBLY Complete | 859399T37 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 1 | 859399T24 | ----GEAR HOUSING ASSEMBLY Complete | ACT |
|
$2,680.00 | $2,455.51 | 1 | ||
| 2 | 8M0226861 | ----SHIFT CRANK | 823903 | SS |
|
$43.50 | $42.72 | 1 | |
| 3 | 19755T7 | ----SPOOL ASSEMBLY | ACT |
|
$48.02 | $47.15 | 1 | ||
| 4 | NSS | ----------------NOT SOLD SEPARATE Spool |
|
$0.00 | $0.00 | 1 | |||
| 5 | NSS | ----------------NOT SOLD SEPARATE Sleeve |
|
$0.00 | $0.00 | 1 | |||
| 6 | NSS | ----------------NOT SOLD SEPARATE Cotter Pin |
|
$0.00 | $0.00 | 1 | |||
| 7 | 8M0063266 | ----SHIM SET | 44491A1 | REP |
|
$52.92 | $50.90 | AR | |
| 8 | 859321A3 | ----GEAR SET Forward/Pinion (12/21) | ACT |
|
$538.79 | $506.91 | 1 | ||
| 8 | 878611A2 | ----GEAR SET Forward/Pinion | NLA |
|
$0.00 | $0.00 | 1 | ||
| 8 | 878617A2 | ----GEAR SET Forward/Pinion | ACT |
|
$802.21 | $754.73 | 1 | ||
| 9 | 30894A1 | --------BEARING SET Cup And Cone | ACT |
|
$60.50 | $58.19 | 1 | ||
| 10 | NSS | ------------------------NOT SOLD SEPARATE Cup |
|
$0.00 | $0.00 | 1 | |||
| 11 | 30895T | --------BEARING Needle | ACT | $20.75 | $20.38 | 1 | |||
| 12 | 856823 | --------RING Retaining | ACT | $11.00 | $10.73 | 1 | |||
| 13 | 848878T | ----CLUTCH | ACT | $341.75 | $321.83 | 1 | |||
| 14 | 78909 | ----PIN Detent | ACT | $19.17 | $18.82 | 2 | |||
| 15 | 848838 | ----PIN Cross | ACT | $45.42 | $44.60 | 1 | |||
| 16 | 78962 | ----SPRING | ACT | $11.50 | $11.22 | 2 | |||
| 17 | 8M0140440 | ----PROPELLER SHAFT | 824110 | SS |
|
$674.14 | $634.24 | 1 | |
| 18 | 859322A1 | ----GEAR Reverse (12/21) | ACT |
|
$428.36 | $409.45 | 1 | ||
| 18 | 844147T01 | ----GEAR Reverse | 828171A1 | REP |
|
$383.16 | $366.14 | 1 | |
| 18 | 853593A1 | ----GEAR | ACT |
|
$252.75 | $238.02 | 1 | ||
| 19 | 824108 | --------SPACER | ACT | $4.60 | $4.49 | 1 | |||
| 20 | 88957T | ----BEARING Ball | ACT | $64.50 | $62.04 | 1 | |||
| 21 | 681001 | ----RING Thrust | ACT | $18.80 | $18.34 | 1 | |||
| 22 | 8M0214920 | ----O-RING | 31534 | SS |
|
$6.30 | $6.15 | 1 | |
| 23 | 818763T11 | ----CARRIER ASSEMBLY Bearing | ACT |
|
$271.58 | $255.76 | 1 | ||
| 24 | 30956T | --------BEARING Needle | ACT | $19.23 | $18.85 | 1 | |||
| 25 | 14077 | --------SEAL Oil (INSIDE) | ACT | $19.42 | $19.07 | 1 | |||
| 26 | 8M0204670 | --------SEAL (OUTSIDE) | 76868 | SS |
|
$19.20 | $18.73 | 1 | |
| 27 | 18323 | ----TAB WASHER | ACT | $24.83 | $24.39 | 1 | |||
| 28 | 8M0168577 | ----RETAINER | 79448 | SS |
|
$43.15 | $42.23 | 1 | |
| 29 | 52707Q1 | ----PROP NUT KIT (.750-16) | ACT | $15.63 | $15.36 | 1 | |||
| 30 | 76214T3 | ANODE | ACT | $46.89 | $46.22 | 1 | |||
| 31 | 41350 | SCREW (.437-14 x 2.50) Stainless Steel (2-1/2 IN.) | ACT | $27.42 | $26.93 | 1 | |||
| - | 8M0183487 | HUB KIT | 840389K5 | SS |
|
$190.00 | $182.05 | 1 | |
| - | 8M0183487 | PROP HUB KIT | 840389K06 | SS |
|
$190.00 | $182.05 | 1 | |
| - | 840382A02 | ----SNUBBER STRIP KIT | 840382A1 | SS |
|
$26.00 | $25.58 | 1 | |
| - | 840382A02 | ----SNUBBER STRIP KIT | ACT |
|
$26.00 | $25.58 |
