Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

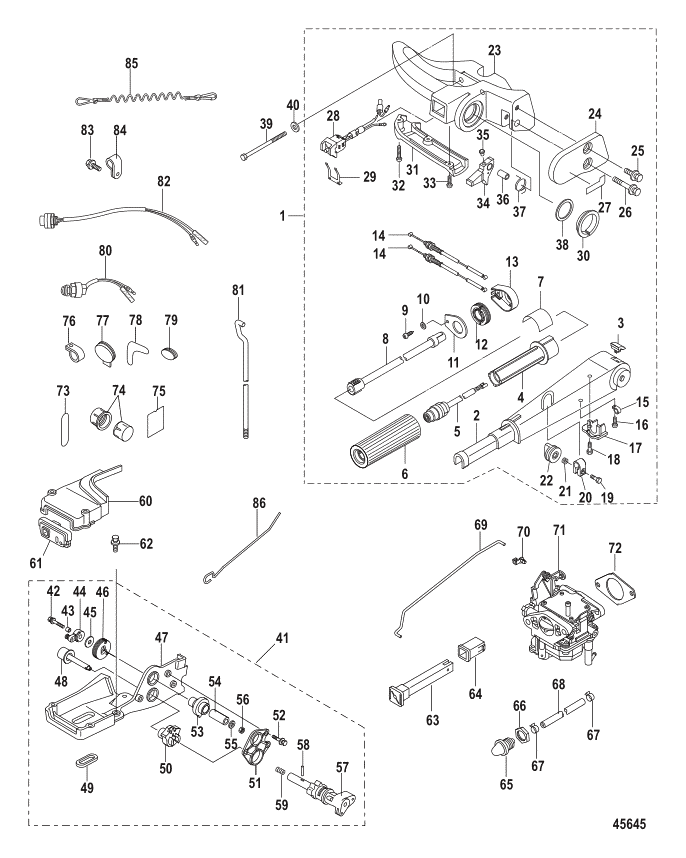

- 8M0104197 CONVERSION KIT Tiller Handle, (Electric Remote Control to Electric Handle) 8M0051059 REP $1,189.99 $1,065.51 1
1 NSS --------NOT SOLD SEPARATE TILLER HANDLE ASSEMBLY $0.00 $0.00 1
2 8M0051374 --------TILLER HANDLE ACT $94.99 $89.31 1
3 8M0051375 --------PLUG Cap ACT $8.09 $7.90 1
4 8M0051377 --------GRIP ACT $23.49 $23.08 1
5 8M0051405 --------SWITCH ASSEMBLY Stop ACT $51.49 $48.45 1
6 8M0221732 --------GRIP Rubber 8M0051376 SS $22.49 $22.02 1
7 896853008 --------DECAL Tiller Handle Shift-Rabbit ACT $6.69 $6.54 1
8 8M0051379 --------SHAFT Throttle ACT $53.99 $50.70 1
9 878608 --------SCREW (#10-16 x .500) ACT $1.70 $1.66 1
10 8M0108373 --------WASHER Stainless Steel 16080 SS $1.50 $1.47 1
11 8M0051388 --------COVER ACT $8.79 $8.59 1
12 8M0051386 --------PULLEY ACT $8.89 $8.68 1
13 8M0051387 --------HOUSING ACT $9.39 $9.17 1
14 8M0051391 --------CABLE Throttle ACT $59.99 $56.43 2
15 22740 --------CLIP ACT $5.09 $4.98 1
16 8M0051381 --------SCREW ACT $6.69 $6.54 1
17 8M0051380 --------BRACKET ACT $8.29 $8.10 1
18 8M0051381 --------SCREW ACT $6.69 $6.54 1
19 8M0204707 --------BOLT 8M0051385 SS $3.99 $3.91 1
20 8M0051382 --------CLAMP Friction - Throttle ACT $7.19 $7.03 1
21 8M0051384 --------SPRING Stainless Steel ACT $7.29 $7.12 1
22 8M0051383 --------NUT ACT $13.69 $13.36 1
23 8M0051392 --------HANDLE Carrying ACT $179.49 $161.52 1
24 8M0051400 --------COVER ACT $42.99 $42.06 1
25 823042 --------BOLT Stainless Steel 8M0051401 SS $3.79 $3.69 1
26 8M0051402 --------BOLT Stainless Steel ACT $6.79 $6.64 1
27 892904006 DECAL Tiller Lock Release NLA $0.00 $0.00
28 892395A01 --------SWITCH ASSEMBLY Stop 8M0051406 SS $81.99 $76.83 1
29 8M0032846 --------RETAINER Brass 120441 SS $4.61 $4.52 1
30 8M0051403 --------BUSHING Plastic ACT $6.79 $6.64 2
31 8M0051393 --------COVER ACT $15.89 $15.51 1
32 8M0204707 --------BOLT 8M0051385 SS $3.99 $3.91 1
33 8M0136037 --------SCREW Stainless Steel (M4 x 16) 8M0051394 SS $8.79 $8.59 2
34 8M0051396 --------LEVER Tiller Lock - Stainless Steel ACT $18.29 $17.92 1
35 8M0051383 --------NUT ACT $13.69 $13.36 1
36 8M0051397 --------COLLAR Stainless Steel ACT $9.89 $9.66 1
37 8M0051398 --------SPRING Stainless Steel ACT $11.79 $11.51 1
38 8M0051404 --------WASHER Rubber ACT $6.79 $6.64 2
39 8M0058362 ----BOLT Steel 895140 SS $12.39 $12.10 2
40 879194340 ----WASHER Stainless Steel 895141 SS $5.09 $4.98 2
41 NSS --------NOT SOLD SEPARATE GEAR ASSEMBLY, Throttle Only $0.00 $0.00 1
42 8M0102279 --------BOLT 879194266 SS $2.99 $2.92 1
43 895126004 --------COLLAR Stainless Steel (6.3 mm) ACT $6.89 $6.73 1
44 898103144 --------OPENER Throttle ACT $8.09 $7.90 1
45 953921 --------WASHER Stainless Steel ACT $5.59 $5.47 1
46 895101401 ------------DRUM Throttle ACT $7.19 $7.03 1
47 879147T85 --------BRACKET Shift Lever ACT $88.99 $83.66 1
48 898103139 --------KNOB ACT $5.79 $5.66 1
49 898103140 --------GROMMET ACT $12.59 $12.29 1
50 895161 --------GEAR Driven ACT $9.69 $9.46 1
51 898103141 --------GEAR PLATE ACT $27.79 $27.25 1
52 823042 --------BOLT 879194263 SS $3.79 $3.69 1
53 898103142 --------GEAR Drive ACT $9.59 $9.37 1
54 895162001 --------COLLAR Steel 895162 SS $3.99 $3.91 1
55 16826 --------WASHER 879194338 SS $3.29 $3.21 1
56 8537227 --------NUT Nylon ACT $5.99 $5.86 1
57 898103136 --------SHIFT SHAFT ASSEMBLY ACT $131.49 $118.40 1
58 16085003 --------PIN ACT $5.09 $4.98 1
59 813028003 --------SPRING ACT $4.59 $4.49 1
60 879147T86 ----COVER ACT $18.89 $18.50 1
61 853709007 ----GROMMET ACT $5.19 $5.08 1
62 898101953 ----BOLT ACT $6.09 $5.95 3
63 8M0155127 ----ROD Choke 855565002 SS $13.79 $13.46 1
64 8M0231329 ----BUSHING 851858005 SS $7.79 $7.61 1
65 895124 ----PUMP ASSEMBLY Priming ACT $33.29 $32.65 1
66 895177 ----NUT ACT $5.19 $5.08 1
67 898101964 ----CLIP ACT $3.19 $3.11 2
68 879194473 ----HOSE Rubber (300 mm) 851848007 REP $14.99 $14.63 1
69 855562003 ----LINK ROD ACT $14.69 $14.34 1
70 855561010 ----SNAP Link Rod ACT $3.59 $3.50 1
71 8M0109533 ----CARBURETOR ASSEMBLY 853720T19 REP $601.99 $547.92 1
72 898101981 ----GASKET ACT $6.79 $6.64 2
73 859278004 ----DECAL Start ACT $1.90 $1.86 1
74 85372214 ----CAP NUT ACT $5.59 $5.47 2
75 898101978 ----DECAL Wiring Diagram ACT $2.39 $2.33 1
76 17169 ----CLAMP ACT $3.29 $3.21 1
77 898101963 ----GROMMET ACT $6.19 $6.05 1
78 859278003 ----DECAL Throttle Only ACT $4.19 $4.10 1
79 898101962 ----GROMMET ACT $4.09 $4.00 1
80 8M0127937 ----SWITCH ASSEMBLY Neutral 171711 SS $73.99 $69.69 1
81 898103154 ----SHIFT ROD ACT $45.99 $45.01 1
82 853820A02 ----SWITCH ASSEMBLY Start ACT $28.39 $27.83 1
83 8230427 ----BOLT ASSEMBLY (M6 x 12) ACT $4.09 $4.00 1
84 953951 ----CLAMP ACT $9.29 $9.07 3
85 15920Q54 ----LANYARD ASSEMBLY NLA $0.00 $0.00 1
86 898103145 ----ROD Throttle ACT $20.99 $20.54 1
