| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

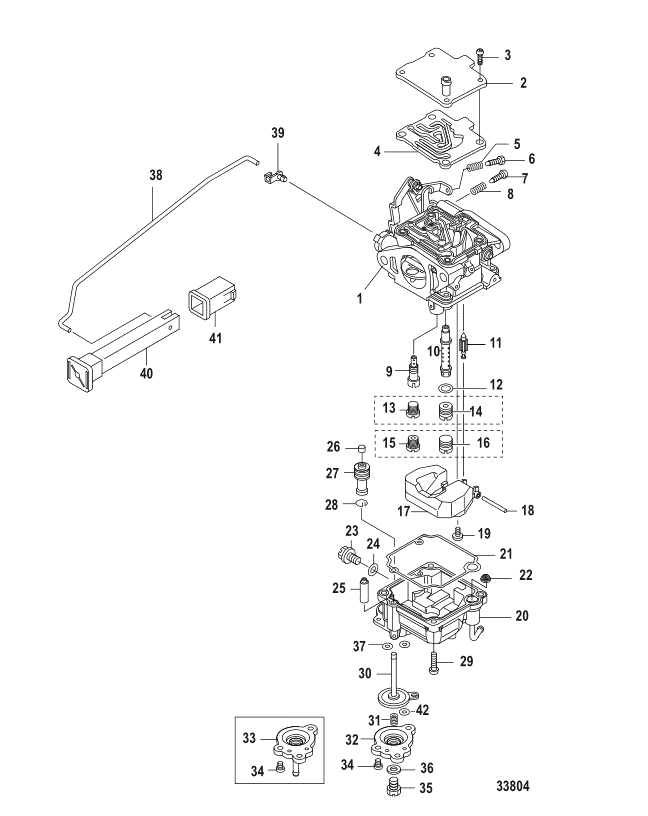

| 1 | 8M0109533 | CARBURETOR | 853720T14 | SS |
|
$601.99 | $566.03 | 1 | |
| 1 | 8M0109535 | CARBURETOR | 853720T15 | SS |
|
$514.49 | $483.91 | 1 | |
| 1 | 8M0129551 | CARBURETOR | 853720T16 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 1 | 8M0167275 | CARBURETOR | 853720T17 | SS |
|
$1,061.49 | $973.10 | 1 | |
| 2 | 855540004 | ----COVER | ACT | $32.59 | $32.00 | 1 | |||
| 3 | 898103135 | ----SCREW | ACT | $3.39 | $3.30 | 4 | |||
| 4 | 855541005 | ----GASKET | ACT | $20.49 | $20.13 | 1 | |||
| 5 | 16264003 | ----SPRING | ACT | $5.09 | $4.98 | 1 | |||
| 6 | 803509022 | ----SCREW-STOP | ACT | $12.09 | $11.80 | 1 | |||
| 7 | 803509A17 | ----SCREW/SPRING KIT | ACT |
|
$18.59 | $18.25 | 1 | ||
| 8 | 16264003 | --------SPRING | ACT | $5.09 | $4.98 | 1 | |||
| 9 | 803689008 | ----JET-SLOW #46 | ACT |
|
$52.49 | $50.26 | 1 | ||
| 9 | 803689009 | ----JET-SLOW #52 | ACT |
|
$51.99 | $49.98 | 1 | ||
| 10 | 812650021 | ----NOZZLE-MAIN | ACT |
|
$51.99 | $49.90 | 1 | ||
| 10 | 812650021 | ----NOZZLE-MAIN | 812650019 | SS |
|
$51.99 | $49.90 | 1 | |
| 10 | 8M0126021 | ----NOZZLE-MAIN | 812650022 | SS |
|
$81.99 | $78.71 | 1 | |
| 10 | 8M0126021 | ----NOZZLE-MAIN | 812650020 | SS |
|
$81.99 | $78.71 | 1 | |
| 11 | 809570002 | ----FLOAT VALVE | ACT | $37.99 | $37.12 | 1 | |||
| 12 | 825057004 | ----ORING | ACT | $7.79 | $7.61 | 1 | |||
| 13 | 802702001 | ----PLUG | ACT |
|
$16.99 | $16.58 | 1 | ||
| 14 | 802701011 | ----JET-MAIN #121 | ACT |
|
$32.29 | $31.67 | 1 | ||
| 15 | 802701010 | ----JET-MAIN #99 | ACT |
|
$34.99 | $34.32 | 1 | ||
| 16 | 802702002 | ----PLUG | ACT |
|
$18.09 | $17.65 | 1 | ||
| 17 | 162532 | ----FLOAT | ACT | $27.29 | $26.76 | 1 | |||
| 18 | 162561 | ----PIN-FLOAT Float Arm | ACT | $7.79 | $7.61 | 1 | |||
| 19 | 855544013 | ----SCREW | ACT | $3.59 | $3.50 | 1 | |||
| 20 | 802690011 | ----BOWL-FLOAT | ACT | $155.49 | $146.28 | 1 | |||
| 21 | 802699005 | ----GASKET | ACT | $23.89 | $23.41 | 1 | |||
| 22 | 898101988 | ----FILTER-FUEL | ACT | $7.59 | $7.42 | 1 | |||
| 23 | 809578006 | ----SCREW-DRAIN | ACT | $12.19 | $11.90 | 1 | |||
| 24 | 802691001 | ----GASKET | ACT | $4.09 | $4.00 | 1 | |||
| 25 | 851812008 | ----CHECK VALVE | ACT | $23.59 | $23.16 | 1 | |||
| 26 | 895114 | ----CAP | ACT | $5.99 | $5.86 | 1 | |||
| 27 | 895115 | ----BOOT | ACT | $9.39 | $9.17 | 1 | |||
| 28 | 8M0123420 | ----RING-RETAINING | 895113 | SS |
|
$7.99 | $7.81 | 1 | |
| 29 | 898103135 | ----SCREW | ACT | $3.39 | $3.30 | 4 | |||
| 30 | 853830005 | ----PLUNGER-COMP | ACT | $37.99 | $37.15 | 1 | |||
| 31 | 895116002 | ----SPRING | ACT | $9.79 | $9.56 | 1 | |||
| 32 | 895117003 | ----COVER | ACT |
|
$18.29 | $17.92 | 1 | ||
| 33 | 895117002 | ----COVER | ACT |
|
$43.99 | $43.21 | 1 | ||
| 34 | 855544018 | ----SCREW | ACT | $4.09 | $4.00 | 3 | |||
| 35 | 803509013 | ----SCREW-DRAIN | ACT | $16.89 | $16.53 | 1 | |||
| 36 | 855567002 | ----GASKET | ACT | $8.19 | $8.00 | 1 | |||
| 37 | 898103224 | ----O-RING | ACT | $5.59 | $5.47 | 2 | |||
| 38 | 855562003 | CHOKE ROD Choke | ACT |
|
$14.69 | $14.34 | 1 | ||
| 39 | 855561010 | ROD SNAP | ACT |
|
$3.59 | $3.50 | 1 | ||
| 40 | 8M0155127 | CHOKE KNOB | 855565002 | SS |
|
$13.79 | $13.46 | 1 | |
| 41 | 8M0231329 | BUSHING | 851858005 | SS |
|
$7.79 | $7.61 | 1 | |
| 42 | 857094001 | O RING | ACT | $6.19 | $6.05 | 1 | |||
| - | 8M0044577 | KIT, CARB REPAIR | ACT | $210.99 | $198.39 | 1 |
