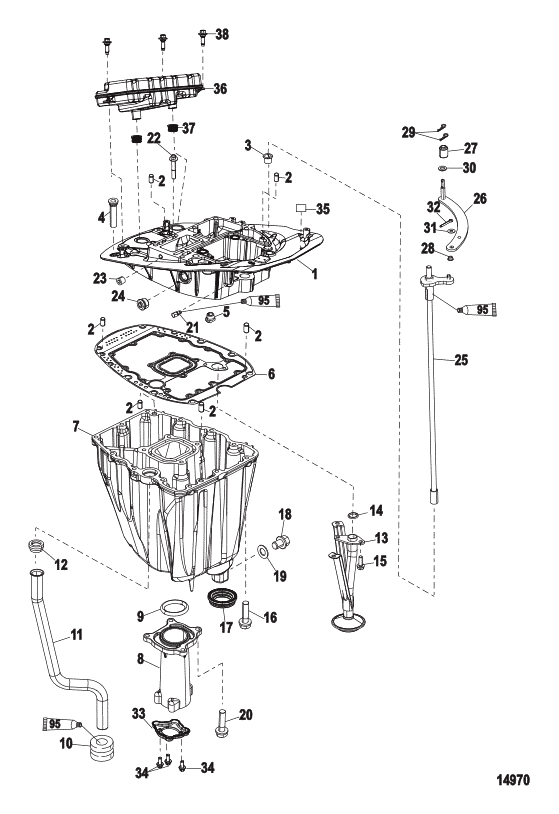

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 881912T02 | ADAPTER PLATE ASSEMBLY | ACT |
|
$698.49 | $635.87 | 1 | ||
| 2 | 23784 | ----PIN Dowel | ACT | $5.19 | $5.08 | 6 | |||
| 3 | 27132 | BUSHING | ACT | $4.74 | $4.65 | 1 | |||
| 4 | 817519A2 | CHECK VALVE ASSEMBLY Drain | ACT | $17.49 | $17.07 | 2 | |||
| 5 | 19565002 | GROMMET | ACT | $30.99 | $30.36 | 1 | |||
| 6 | 8M0005405 | GASKET Adapter Plate | ACT | $64.49 | $60.67 | 1 | |||
| 7 | 858572T01 | SUMP Oil | ACT | $401.49 | $361.81 | 1 | |||
| 8 | 898468A01 | TUBE KIT Exhaust | ACT |
|
$161.99 | $145.82 | 1 | ||
| 9 | 881295 | ----O-RING | ACT | $6.59 | $6.44 | 1 | |||
| 10 | 89417004 | GROMMET | ACT | $2.99 | $2.92 | 1 | |||
| 11 | 8M0026130 | TUBE Water | 858575006 | SS |
|
$80.49 | $75.81 | 1 | |
| 11 | 8M0026130 | TUBE Water | ACT |
|
$80.49 | $75.81 | 1 | ||
| 11 | 8M0026129 | TUBE Water | 858575005 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 11 | 8M0026129 | TUBE Water | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12 | 814080001 | SEAL Upper | ACT | $9.49 | $9.27 | 1 | |||
| 13 | 858571T | TUBE Oil Pick Up | ACT | $64.99 | $61.22 | 1 | |||
| 14 | 859082 | O-RING | ACT | $2.39 | $2.33 | 1 | |||
| 15 | 8M0204741 | SCREW (M6 x 20) Stainless | 40011128 | SS |
|
$4.59 | $4.49 | 4 | |
| 16 | 8M0214957 | SCREW (M6 x 30) | 8248327 | SS |
|
$3.19 | $3.11 | 12 | |
| 17 | 8M0039073 | SEAL | 858573 | SS |
|
$19.39 | $18.92 | 1 | |
| 18 | 8288181 | PLUG Drain | ACT | $18.39 | $18.01 | 1 | |||
| 19 | 8M0204692 | GASKET | 828816 | SS |
|
$5.29 | $5.17 | 1 | |
| 20 | 82483213 | SCREW (M6 x 60) | ACT | $20.09 | $19.72 | 4 | |||
| 21 | 888823001 | SHIFT DETENT ASSEMBLY | ACT | $25.99 | $25.45 | 1 | |||
| 22 | 898442 | SCREW (M8 x 50) | ACT | $5.29 | $5.17 | 4 | |||
| 23 | 479452 | PLUG | ACT | $1.70 | $1.66 | 1 | |||
| 24 | 8M0048148 | PLUG | ACT | $26.79 | $26.27 | 1 | |||
| 25 | 888835A1 | SHIFT SHAFT | ACT | $393.49 | $354.52 | 1 | |||
| 26 | 888840 | SHIFT LINK | NLA |
|
$0.00 | $0.00 | 1 | ||
| 27 | 888917 | ROLLER | ACT | $2.79 | $2.72 | 1 | |||
| 28 | 891658 | BUSHING | ACT | $3.19 | $3.11 | 1 | |||
| 29 | 82053M | PIN Hair | ACT | $2.59 | $2.53 | 2 | |||
| 30 | 888832 | WASHER | ACT | $1.40 | $1.37 | 1 | |||
| 31 | 69056 | WASHER (.255 x .620 x .030) Stainless Steel | ACT | $1.80 | $1.76 | 1 | |||
| 32 | 26953 | COTTER PIN | ACT | $4.19 | $4.10 | 1 | |||
| 33 | 898844 | SEAL Exhaust Tube Included with Exhaust Tube | ACT | $35.49 | $34.85 | 1 | |||
| 34 | 8M0103805 | SCREW (M6 x 16 MM) Stainl | 88552516 | SS |
|
$2.49 | $2.43 | 3 | |
| 35 | 48323 | PLUG | ACT | $2.99 | $2.92 | 1 | |||
| 36 | 898103T91 | PLENUM Exhaust | ACT | $53.99 | $50.74 | 1 | |||
| 37 | 8M0001457 | SEAL Plenum | ACT | $15.89 | $15.51 | 2 | |||
| 38 | 892073002 | SHOULDER SCREW (M6) | ACT | $3.40 | $3.32 | 3 | |||
| - | 897534A07 | GASKET SET Powerhead | ACT | $365.99 | $338.50 | 1 | |||
| - | 8M8033014 | LONG BLOCK ASSEMBLY 75/80/90/100 | 897148A09 | SS |
|
$11,471.45 | $9,998.16 | 1 | |
| - | 897148A08 | LONG BLOCK ASSEMBLY 115 | ACT | $11,200.00 | $9,761.59 | 1 |
