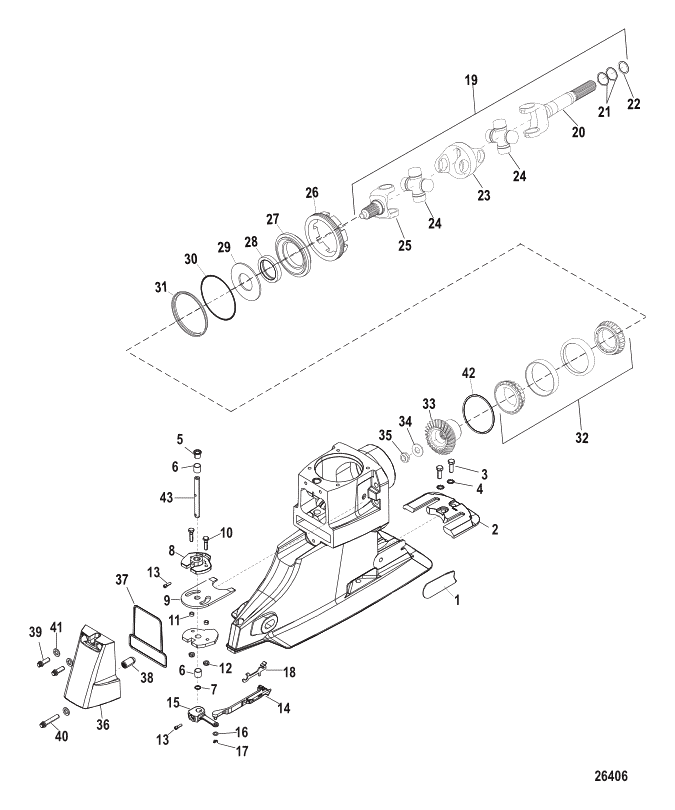

Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan
- 865440H50 DSH BRAVO 27/29 ACT $9,924.29 $9,229.49 1
- 866458J01 DSH BRAVO SC27/29 ACT $9,924.29 $9,229.49 1
- 865440H51 DSH BRAVO 27/32 ACT $9,924.29 $9,229.49 1
- 866458J02 DSH BRAVO SC27/32 ACT $9,924.29 $9,229.49 1
- 865440H52 DSH BRAVO 23/30 ACT $9,924.29 $9,229.49 1
- 866458J03 DSH BRAVO SC23/30 ACT $9,924.29 $9,229.49 1
- 865440H01 DSH BRAVO 27/29 ACT $9,924.29 $9,229.49 1
- 866458J04 DSH BRAVO SC27/29 ACT $9,924.29 $9,229.49 1
- 865440H02 DSH BRAVO 27/32 ACT $9,924.29 $9,229.49 1
- 865440H72 ----DSH BRAVO -BASIC ACT $2,460.29 $2,255.40 1
- 866458J00 ----DSH BRV SC BASIC ACT $2,910.43 $2,668.05 1
1 805261A1 --------WEAR PAD KIT ACT $31.09 $30.53 1
2 821630Q1 --------ANODE KIT(ALUM) ACT $45.49 $44.53 1
3 65210 ------------SCREW ACT $2.89 $2.82 2
4 35479 ------------LOCKWASHER ACT $1.80 $1.76 2
5 865866 --------PLUG Shift Shaft Oil Seal ACT $7.09 $6.93 1
6 861209A1 --------BUSHING KIT ACT $40.49 $39.77 1
7 127091 --------SEAL ACT $8.79 $8.59 1
8 806552A1 ----YOKE & CAM ASSY ACT $293.49 $276.16 1
9 806552 --------YOKE-SHIFTER ACT $165.49 $155.54 1
10 805733 --------SCREW ACT $1.80 $1.76 2
11 12706 --------SPACER ACT $5.69 $5.56 2
12 8267139 --------NUT ACT $2.59 $2.53 2
13 865900 ----SCREW 865712 SS $1.20 $1.18 2
14 8M0185784 ----LINKAGE KIT-SHIFT 861175A2 SS $155.49 $146.28 1
14 8M0185783 ----LINKAGE KIT-SHIFT 861175A03 SS $126.49 $119.05 1
15 NSS ----------------NOT SOLD SEPARATE SHIFT LEVER $0.00 $0.00 1
16 20583 --------WASHER ACT $1.50 $1.47 1
17 26953 --------PIN-COTTER ACT $4.19 $4.10 1
18 86776 --------LATCH ACT $9.79 $9.56 1
19 864244A2 ----U-JOINT ASSY. ACT $807.49 $759.30 1
20 864244A01 --------YOKE ASSY Coupler End 865494A01 SS $349.49 $328.89 1
21 8M0204650 ------------O RING 29845 SS $2.89 $2.82 2
22 8M0204654 ------------O RING 35027 SS $1.70 $1.66 1
23 865503T --------YOLK-DOUBLE Center 865509T SS $109.99 $103.28 1
24 865496A02 --------ORD 865496A02 865496A01 REP $277.49 $261.09 2
25 864245T --------YOLK Gear End 865495T SS $303.49 $285.65 1
26 8M0169062 ----NUT 92004 SS $72.99 $69.98 1
27 8M0171142 ----CARRIER ASSY 86779A1 SS $117.99 $110.97 1
28 807006 --------SEAL ACT $31.79 $31.18 1
29 41613 ----WASHER ACT $23.49 $23.08 1
30 8M0214974 ----O RING 861844 SS $8.19 $8.00 1
31 86780 ----RING ACT $94.99 $91.38 1
32 8M0104358 ----BEARING ASSEMBLY 86763A04 SS $346.49 $326.30 1
33 883473A2 ----GEAR SET-(27/32) ACT $1,738.49 $1,593.46 1
33 883476A2 ----GEAR SET-(29/27) ACT $1,738.49 $1,593.46 1
33 883479A2 ----GEAR SET-(30/23) ACT $1,771.49 $1,623.84 1
33 8M0060003 ----GEAR SET ACT $1,738.49 $1,593.46 1
33 8M0060004 ----GEAR SET ACT $1,738.49 $1,593.46 1
33 8M0060005 ----GEAR SET ACT $1,769.49 $1,622.01 1
34 44539 ----WASHER ACT $9.59 $9.37 1
35 8M0214915 ----NUT 97522 SS $11.69 $11.41 1
36 8M0157710 ----COVER ASSEMBLY Back 865441A02 SS $496.99 $474.65 1
36 8M0157428 ----COVER ASSEMBLY Back 866463A02 SS $486.99 $465.09 1
37 12708 --------SEAL ACT $15.99 $15.61 1
38 8M0157700 --------DETENT ASSY 14497A2 SS $86.99 $83.68 1
39 8M0113180 ----SCREW 98794 SS $5.09 $4.98 2
40 87158 ----SCREW ACT $13.49 $13.17 1
41 37828 ----WASHER ACT $0.80 $0.79 3
42 888927028 ----SHIM ACT $5.59 $5.47 AR
42 888927029 ----SHIM ACT $5.99 $5.86 AR
42 888927030 ----SHIM ACT $5.19 $5.08 AR
42 888927031 ----SHIM ACT $5.09 $4.98 AR
42 888927032 ----SHIM ACT $5.19 $5.08 AR
42 888927033 ----SHIM ACT $7.99 $7.81 AR
42 888927034 ----SHIM ACT $5.49 $5.37 AR
42 888927035 ----SHIM ACT $5.19 $5.08 AR
42 888927036 ----SHIM ACT $5.49 $5.37 AR
42 888927037 ----SHIM ACT $6.79 $6.64 AR
42 888927038 ----SHIM ACT $6.79 $6.64 AR
42 888927039 ----SHIM ACT $6.09 $5.95 AR
42 888927040 ----SHIM ACT $5.09 $4.98 AR
43 12711 ----SHAFT ACT $83.99 $80.56 1
- 16709A2 SEAL KIT Driveshaft Housing ACT $140.49 $132.00 1
