| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

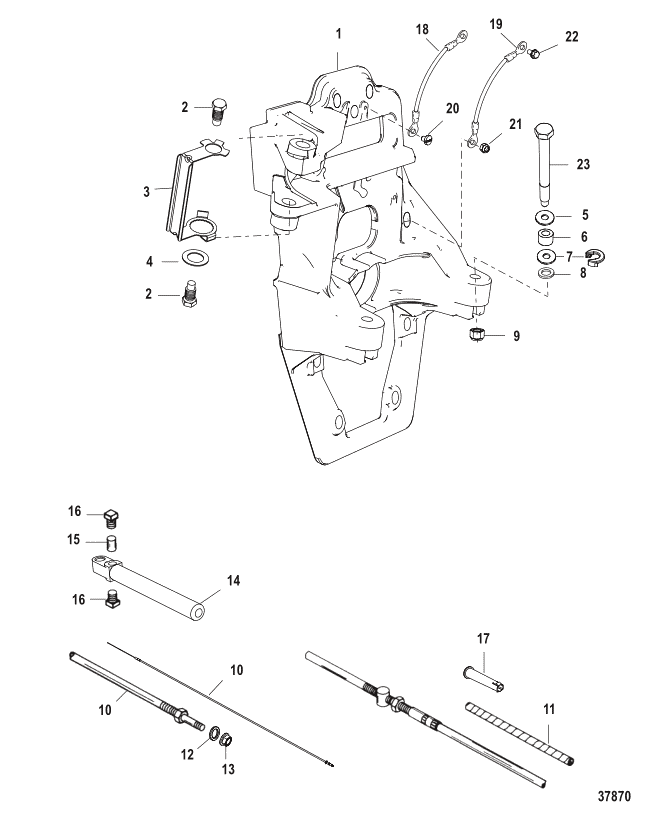

| 1 | 8M0138839 | PLATE ASSEMBLY Transom | 44117A8 | SS |
|
$439.07 | $419.69 | 1 | |
| 1 | 8M0138839 | PLATE ASSEMBLY Transom | 8M0095951 | SS |
|
$439.07 | $419.69 | 1 | |
| 1 | 8M0138839 | PLATE ASSEMBLY Transom | 8M0114816 | SS |
|
$439.07 | $419.69 | 1 | |
| 2 | 8M0113173 | ----BOLT Pivot | 42253 | SS |
|
$30.42 | $29.87 | 2 | |
| NS | 42254 | ----WASHER | ACT | $5.41 | $5.27 | 2 | |||
| 3 | 879150A34 | WASHER ASSEMBLY Pivot | ACT |
|
$75.25 | $72.38 | 1 | ||
| 4 | 8M2010068 | ----WASHER (.78 x 1.25 x .05) Pivot (Bottom) | ACT |
|
$15.30 | $14.92 | 1 | ||
| 5 | 35777 | WASHER (.5156 x 1.375 x . | ACT |
|
$2.60 | $2.54 | 2 | ||
| 5 | 89665 | WASHER Stainless Steel | ACT |
|
$7.30 | $7.12 | 2 | ||
| 6 | 99299 | SPACER (.520 x .870 x .630) | ACT | $7.50 | $7.32 | 2 | |||
| 7 | 32834 | WASHER (.9375 x 1.750 x . | ACT |
|
$5.70 | $5.56 | 2 | ||
| 7 | 8M0096564 | WASHER (.9375 x 2.15625) Rubber | 8M0087162 | SS |
|
$10.70 | $10.44 | 2 | |
| 7 | 8M0096564 | WASHER Rubber U Shape | ACT |
|
$10.70 | $10.44 | 2 | ||
| 8 | 8M0204665 | WASHER (.530 x .870 x .10 | 54012 | SS |
|
$3.60 | $3.52 | AR | |
| 9 | 863332 | NUT (.500-20) Aluminum | ACT | $7.20 | $7.03 | 2 | |||
| 10 | 8M0176523 | CABLE KIT Shift | 815471A6 | SS |
|
$177.49 | $165.04 | 1 | |
| 11 | 90412 | ----WRAPPING (1.16 Feet Bulk) | NLA |
|
$2.53 | $2.47 | 1 | ||
| 12 | 8M0214950 | ----WASHER Sealing | 815472 | SS |
|
$3.20 | $3.13 | 1 | |
| 13 | 8M0214936 | ----NUT (.375-24) | 49910 | SS |
|
$5.30 | $5.17 | 1 | |
| - | 43433A01 | GUIDE KIT | ACT |
|
$38.00 | $37.32 | 1 | ||
| 14 | 8M0204660 | ----GUIDE | 43433 | SS |
|
$23.74 | $23.33 | 1 | |
| 15 | 43436 | ----ANCHOR | ACT | $10.30 | $10.05 | 1 | |||
| 16 | 8M0204644 | ----SET SCREW (#8-32) | 20518 | SS |
|
$1.80 | $1.76 | 2 | |
| 17 | 861632T | INSERT | 861632 | SS |
|
$7.00 | $6.83 | 1 | |
| 18 | 88238A5 | CABLE ASSEMBLY Ground (5.50 Inches) | ACT | $2.60 | $2.54 | 1 | |||
| 19 | NSS | NOT SOLD SEPARATE CABLE ASSEMBLY-Grounding |
|
$0.00 | $0.00 | 1 | |||
| 20 | 24231 | SCREW (#10-32 x .250) | ACT | $1.10 | $1.08 | 1 | |||
| 21 | 8M0204653 | NUT (.437-20) Stainless S | 82671015 | SS |
|
$5.29 | $5.17 | 1 | |
| 22 | 41508 | SCREW (.250-20 x .500) Stainless Steel | ACT | $3.80 | $3.71 | 1 | |||
| 23 | 8M0215010 | SCREW (.500-20 x 5.370) Special | 97934 | SS |
|
$6.00 | $5.86 | 2 |
