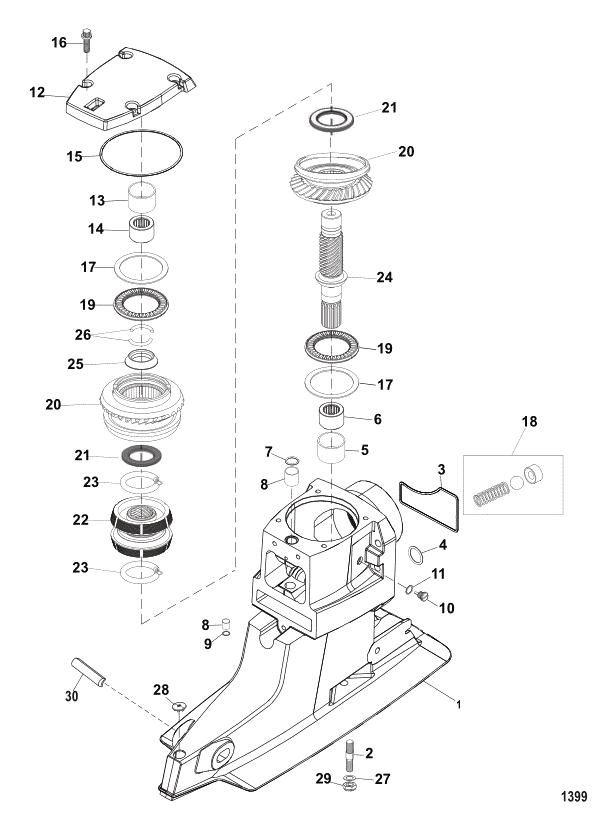

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 864571A72 | HSG ASSY-D SHAFT | 8868H72 | SS |
|
$2,698.00 | $2,473.32 | 1 | |
| 2 | 8M0133358 | ----STUD | 579203 | SS |
|
$17.29 | $16.94 | 4 | |
| 3 | 16755Q1 | ----INSTALL KIT | ACT | $12.39 | $12.10 | 1 | |||
| 4 | 8M0204681 | ----O RING | 45710 | SS |
|
$3.79 | $3.69 | 1 | |
| 5 | 861791 | ----RACE-BEARING | ACT | $73.99 | $70.86 | 1 | |||
| 6 | 87156 | ----BEARING | ACT | $19.49 | $19.07 | 1 | |||
| 7 | 8M0204667 | ----O RING | 62705 | SS |
|
$1.70 | $1.66 | 1 | |
| 8 | 861209A1 | ----BUSHING KIT | ACT |
|
$40.49 | $39.77 | 1 | ||
| 9 | 127091 | --------SEAL | ACT | $8.79 | $8.59 | 1 | |||
| 10 | 8M0058389 | ----PLUG KIT-DRAIN | 67892A1 | SS |
|
$11.69 | $11.41 | 1 | |
| 11 | 8M0187157 | --------WASHER-ORAN | 191832 |
|
$1.49 | $1.46 | 1 | ||
| 12 | 92068A12 | ----COVER ASSY-TOP | ACT |
|
$241.99 | $227.82 | 1 | ||
| 13 | 861791 | --------RACE-BEARING | ACT | $73.99 | $70.86 | 1 | |||
| 14 | 87156 | --------BEARING | ACT | $19.49 | $19.07 | 1 | |||
| 15 | 97387 | --------O RING | ACT | $11.39 | $11.12 | 1 | |||
| 16 | 8M0113180 | ----SCREW | 98794 | SS |
|
$5.09 | $4.98 | 4 | |
| 17 | 864596058 | RACE-THRUST BRG Thrust Bearing | ACT | $41.99 | $41.07 | A/R | |||
| 17 | 864596059 | RACE-THRUST BRG Thrust Bearing | ACT | $40.49 | $39.61 | A/R | |||
| 17 | 864596060 | RACE-THRUST BRG Thrust Bearing | ACT | $41.49 | $40.67 | A/R | |||
| 17 | 864596061 | RACE-THRUST BRG. Thrust Bearing | ACT | $42.49 | $41.65 | A/R | |||
| 17 | 864596062 | RACE-THRUST BRG Thrust Bearing | ACT | $41.49 | $40.66 | A/R | |||
| 17 | 864596063 | RACE-THRUST BRG Thrust Bearing | ACT | $42.49 | $41.65 | A/R | |||
| 17 | 864596064 | RACE-THRUST BRG Thrust Bearing | ACT | $40.49 | $39.77 | A/R | |||
| 17 | 864596065 | RACE-THRUST BRG Thrust Bearing | ACT | $40.49 | $39.77 | A/R | |||
| 17 | 864596066 | RACE-THRUST BRG Thrust Bearing | ACT |
|
$40.49 | $39.77 | A/R | ||
| 18 | 17997A1 | ----SPRING KIT | ACT | $10.39 | $10.15 | 1 | |||
| 19 | 861787 | BEARING-THRUST | ACT | $40.99 | $40.25 | 2 | |||
| 20 | 883473A2 | GEAR SET-(27/32) | ACT |
|
$1,738.49 | $1,593.46 | 1 | ||
| 20 | 883476A2 | GEAR SET-(29/27) | ACT |
|
$1,738.49 | $1,593.46 | 1 | ||
| 20 | 883479A2 | GEAR SET-(30/23) | ACT |
|
$1,771.49 | $1,623.84 | 1 | ||
| 21 | 861792 | BEARING ASSY | ACT | $45.99 | $45.17 | 2 | |||
| 22 | 865344A01 | CLUTCH ASSY | 861781A1 | SS |
|
$573.49 | $539.49 | 1 | |
| 23 | 93505 | ----SPRING-ORANG | ACT | $8.79 | $8.59 | 2 | |||
| 24 | 812773T | DRIVESHAFT | ACT | $428.49 | $409.45 | 1 | |||
| 25 | 86770 | COLLAR | ACT | $72.99 | $70.14 | 1 | |||
| 26 | 8M0204675 | KEEPER | 97351 | SS |
|
$11.29 | $11.02 | 2 | |
| 27 | 861854 | WASHER | ACT | $4.19 | $4.10 | 4 | |||
| 28 | 824928001 | PLUG | 824928 | SS |
|
$5.49 | $5.37 | 1 | |
| 29 | 8M0143423 | NUT | 35053 | SS |
|
$9.49 | $9.27 | 4 | |
| 30 | 808006 | INSERT-TRIM ADJ | ACT | $11.39 | $11.12 | 1 | |||
| - | 16709A2 | SEAL KIT | ACT | $140.49 | $132.00 | 1 |
