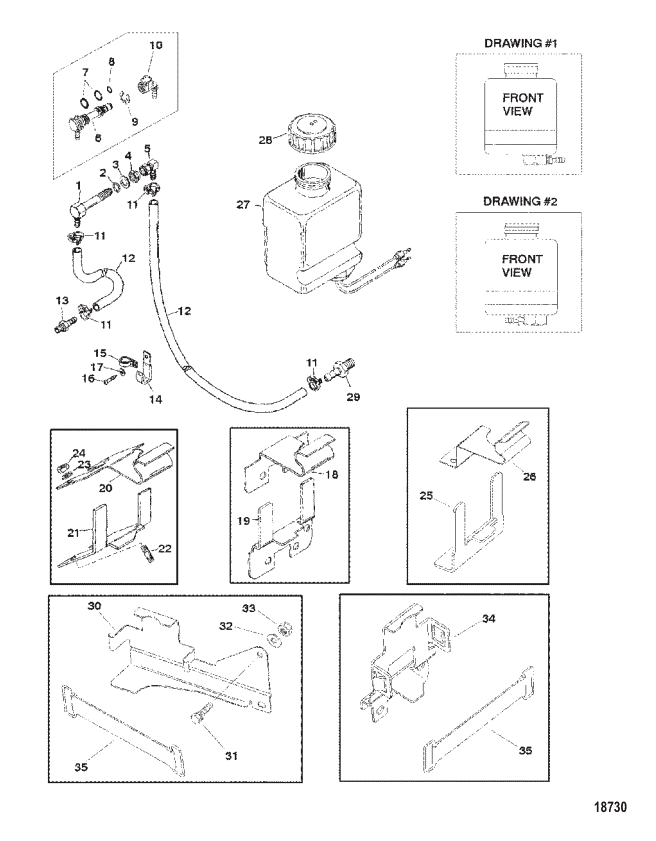

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 18922 | CONNECTOR | ACT | $32.89 | $32.24 | 1 | |||
| 2 | 201951 | O-RING | 20195 | SS |
|
$1.99 | $1.95 | 1 | |
| 3 | 861854 | WASHER | 91964 | SS |
|
$4.19 | $4.10 | 1 | |
| 4 | 8M0143423 | NUT (.437-20) | 35053 | SS |
|
$9.49 | $9.27 | 1 | |
| 5 | 18923 | FITTING | ACT | $27.59 | $27.09 | 1 | |||
| 6 | 861150T02 | PLUG ASSEMBLY Bulk Head | 861150A1 | SS |
|
$17.99 | $17.56 | 1 | |
| 7 | 201951 | ----O-RING (.487 x .103) | ACT | $1.99 | $1.95 | 2 | |||
| 8 | 627021 | ----O-RING (.301 x .070) | ACT | $1.70 | $1.66 | 1 | |||
| 9 | 87843 | E RING | ACT | $1.40 | $1.37 | 1 | |||
| 10 | 861163 | QUICK CONNECTOR (90 Degree) | ACT | $15.69 | $15.31 | 1 | |||
| 11 | 415825 | CLAMP Nylon | ACT | $3.09 | $3.01 | 4 | |||
| 12 | 8M0214996 | HOSE (54.00 Inches Bulk) | 1940971 | SS |
|
$30.79 | $30.20 | 2 | |
| 13 | 8M0180507 | CONNECTOR | 16739 | SS |
|
$13.89 | $13.56 | 1 | |
| 14 | 8M0024808 | J CLIP | 642351 | SS |
|
$8.19 | $8.00 | 1 | |
| 15 | 23567 | CLIP | ACT | $5.79 | $5.66 | 1 | |||
| 16 | 60605 | SCREW (#10-16 x .750) | ACT | $1.10 | $1.08 | 1 | |||
| 17 | 8M0084613 | C WASHER | 69205 | SS |
|
$1.10 | $1.08 | 1 | |
| 18 | 860065A1 | BRACKET Clip (3.0L/3.6L,4.2L DIESEL/7.4L/7.4LX/454/502) | 806293T | REP |
|
$37.49 | $36.71 | 1 | |
| 19 | 860065A1 | BRACKET (3.0L/3.6L,4.2L DIESEL/7.4L/7.4LX/454/502) | 807024T | SS |
|
$37.49 | $36.71 | 1 | |
| 20 | 806292T1 | BRACKET | 806292T | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 21 | 807025T | BRACKET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 22 | 8M2004610 | STUD (.375-16 x 2.130) | 805357 | SS |
|
$5.19 | $5.08 | 2 | |
| 23 | 20553 | WASHER (.406 x .734 x .06 | ACT | $1.50 | $1.47 | 2 | |||
| 24 | 32219 | NUT (.375-16) | ACT | $2.79 | $2.72 | 2 | |||
| 25 | 806649T | BRACKET 262 MAG. EFI | NLA |
|
$0.00 | $0.00 | 1 | ||
| 26 | 806650T | BRACKET 5.7L/5.7LX/350 MAGNUM (EFI) 262 MAG. EFI | NLA |
|
$0.00 | $0.00 | 1 | ||
| 27 | 8M0075708 | RESERVOIR ASSEMBLY Oil Fitting Pointing Toward Right Side | 806193A3 | SS |
|
$69.99 | $65.85 | 1 | |
| 27 | 8M0075709 | RESERVOIR Fitting Pointing Toward Left Side | 806193A13 | SS |
|
$72.99 | $68.51 | 1 | |
| 28 | 8067271 | ----CAP Drive Lube Monitor Oil Bottle | 808625 | SS |
|
$14.99 | $14.63 | 1 | |
| 29 | 808624 | ----CONNECTOR | ACT | $5.89 | $5.76 | 1 | |||
| 30 | 807839T1 | BRACKET (4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFI) | 807839T | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 31 | 657461 | SCREW AND LOCKWASHER (.25 (4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFI) | ACT | $1.70 | $1.66 | 1 | |||
| 32 | 69057 | WASHER (.281 x .734 x .063) (4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFI) | ACT | $1.80 | $1.76 | 1 | |||
| 33 | 8267088 | NUT (.250-20) (4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFI) | 72008 | SS |
|
$1.70 | $1.66 | 1 | |
| 34 | 860065A1 | BRACKET KIT Oil Bottle (5.7L/5.7LX/350 MAGNUM CARB & EFI/ 3.0L/3.6L4.2L DIESEL/7.4L/7.4LX/454/502) | ACT |
|
$37.49 | $36.71 | 1 | ||
| 35 | 808023T | ----STRAP Bracket | ACT |
|
$19.39 | $18.92 | 1 |
