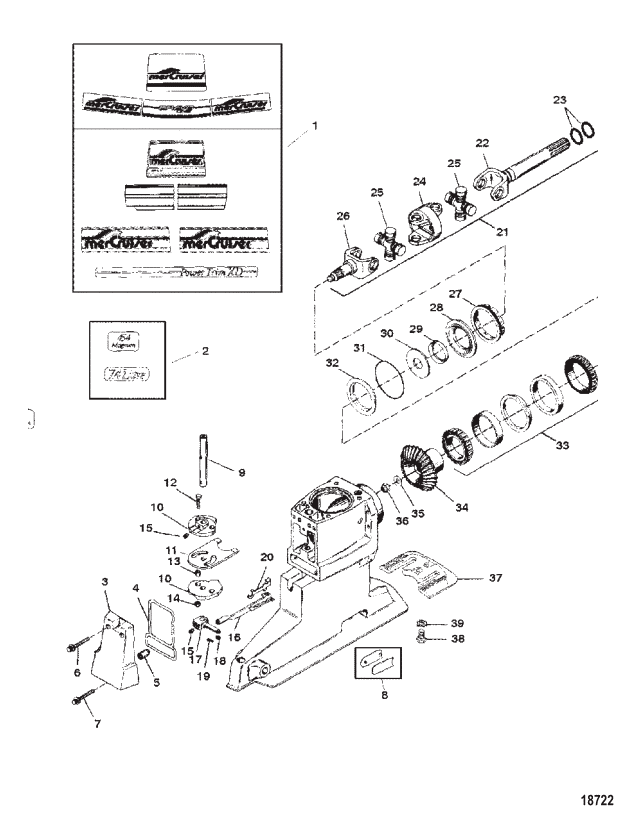

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 3 | 8M0157426 | COVER ASSEMBLY | 12717A1 | SS |
|
$253.68 | $238.88 | 1 | |
| 4 | 12708 | ----SEAL | ACT | $16.00 | $15.61 | 1 | |||
| 5 | 8M0157700 | ----DETENT ASSEMBLY | 14497A2 | SS |
|
$87.00 | $83.96 | 1 | |
| 6 | 8M0113180 | SCREW (.375-16 x 1.00) | 98794 | SS |
|
$5.10 | $4.98 | 2 | |
| 7 | 87158 | SCREW (.375-16 x 1.875) | ACT | $13.50 | $13.17 | 1 | |||
| 8 | 805261A1 | WEAR PAD KIT | ACT | $30.99 | $30.37 | 1 | |||
| 9 | 12711 | SHAFT | ACT | $83.75 | $80.56 | 1 | |||
| 10 | 807375A1 | CLUTCH AND CAM KIT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 806552A1 | YOKE AND CAM ASSEMBLY | ACT |
|
$287.83 | $271.06 | 1 | ||
| 11 | 806552 | ----YOKE Shifter | ACT |
|
$165.17 | $155.54 | 1 | ||
| 12 | 805733 | ----SCREW (.250-28 x 1.00) | ACT | $1.80 | $1.76 | 2 | |||
| 13 | 12706 | ----SPACER (.194 x .375) | ACT | $5.70 | $5.56 | 2 | |||
| 14 | 826709109 | ----NUT (.250-28) | 35045 | SS |
|
$3.60 | $3.52 | 2 | |
| 15 | 38615 | SCREW (.250-28 x .750) | ACT |
|
$4.00 | $3.91 | 1 | ||
| 15 | 805543 | SCREW (1.25 inch) | ACT |
|
$0.60 | $0.59 | 1 | ||
| 16 | 8M0185784 | SHIFT LINKAGE ASSEMBLY High Bump Shift Lever | 861175A2 | SS |
|
$155.49 | $145.17 | 1 | |
| 17 | 8M0185784 | ----LEVER | 12712 | REP |
|
$155.49 | $145.17 | 1 | |
| 18 | 20583 | ----WASHER | ACT | $1.50 | $1.47 | 1 | |||
| 19 | 26953 | ----COTTER PIN | ACT | $4.20 | $4.10 | 1 | |||
| 20 | 86776 | ----LATCH | ACT | $9.80 | $9.56 | 1 | |||
| 21 | 864244A2 | UNIVERSAL JOINT ASSEMBLY | 12784A10 | SS |
|
$806.99 | $759.30 | 1 | |
| 21 | 12784A19 | UNIVERSAL JOINT ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 22 | 59830A7 | ----YOKE ASSEMBLY (COUPLER END) | ACT |
|
$346.66 | $326.46 | 1 | ||
| 22 | 59830A8 | ----YOKE ASSEMBLY (COUPLER END) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 23 | 8M0204650 | --------O-RING (.924 x .103) | 29845 | SS |
|
$2.90 | $2.83 | 2 | |
| 23 | 8M0204654 | --------O-RING (1.046) | 35027 | SS |
|
$1.70 | $1.66 | 1 | |
| 24 | 393831 | ----SOCKET Center | 39383T | SS |
|
$155.67 | $146.60 | 1 | |
| 25 | 75832T1 | ----CROSS AND BEARING | 758321 | SS |
|
$98.49 | $94.94 | 2 | |
| 26 | 12784 | ----YOKE Gear End | ACT | $320.66 | $301.98 | 1 | |||
| 27 | 8M0169062 | RING NUT | 92004 | SS |
|
$72.75 | $69.98 | 1 | |
| 28 | 8M0171142 | CARRIER ASSEMBLY | 86779A1 | SS |
|
$117.83 | $110.97 | 1 | |
| 29 | 807006 | ----SEAL Oil | ACT | $31.75 | $31.18 | 1 | |||
| 30 | 41613 | WASHER | ACT | $23.50 | $23.08 | 1 | |||
| 31 | 8M0214974 | O-RING (3.609 x .139) | 97386 | SS |
|
$8.01 | $7.81 | 1 | |
| 32 | 86780 | RING | ACT | $95.00 | $91.38 | 1 | |||
| 33 | 8M0103472 | BEARING ASSEMBLY Tapered Roller | 86763A2 | SS |
|
$248.92 | $234.41 | 1 | |
| 34 | 826642T | GEAR Pinion (1.50:1 BRAVO I & III, 1.65:1 BRAVO II & III, 2.00:1 BRAVO II & III) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 34 | 815661T | GEAR Pinion (1.36:1 BRAVO I & III, 1.50:1 BRAVO II, 1.81:1 BRAVO II & III) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 34 | 818664 | GEAR Pinion (1.65:1 BRAVO I, 2.20:1 BRAVO II & III, 2.43:1 BRAVO III) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 35 | 44539 | WASHER | ACT | $9.60 | $9.37 | 1 | |||
| 36 | 8M0214915 | NUT (.625-18) | 97522 | SS |
|
$8.40 | $8.20 | 1 | |
| 37 | 821630Q1 | ANODE ASSEMBLY | 821630A1 | SS |
|
$44.99 | $44.21 | 1 | |
| 38 | 65210 | ----SCREW (.375-16 x 1.00) | ACT | $2.90 | $2.83 | 2 | |||
| 39 | 35479 | ----LOCKWASHER (.375) | ACT | $1.80 | $1.76 | 2 | |||
| - | 16709A2 | SEAL KIT | ACT | $139.99 | $131.29 | 1 |
