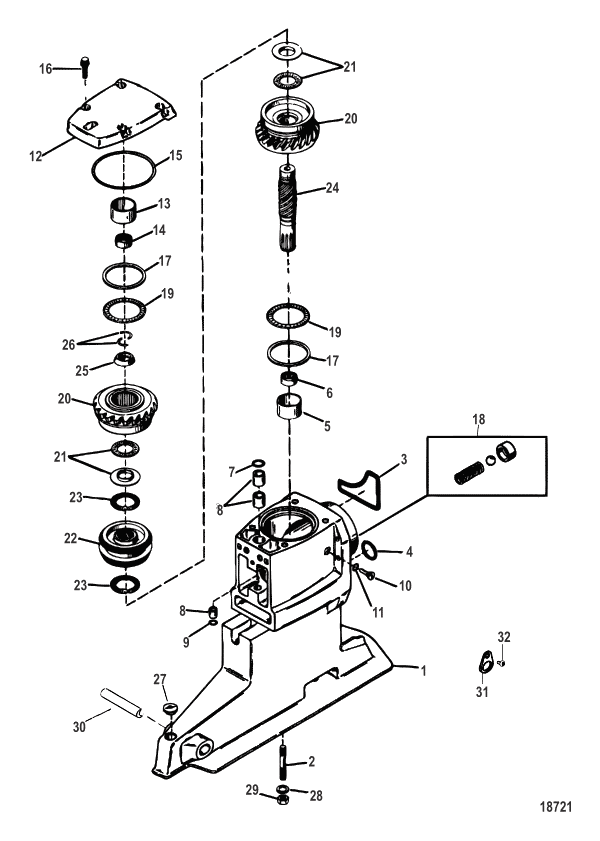

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8868G21 | HOUSING ASSEMBLY Driveshaft | ACT |  | $2,608.50 | $2,391.27 | 1 | ||
| 2 | 8M0133358 | ----STUD (.437-14/.437-20 x 2.060) | 579203 | SS | | $19.90 | $19.41 | 4 | |
| 3 | 16755Q1 | ----SEAL | 16755A1 | SS | | $11.89 | $11.61 | 1 | |
| 4 | 8M0204681 | ----O-RING (1.424 x .103) | 45710 | SS | | $3.69 | $3.59 | 1 | |
| 5 | 815900 | ----BEARING | ACT | $62.83 | $60.44 | 1 | |||
| 6 | 87156 | ----BEARING ASSEMBLY Roller | ACT | $18.67 | $18.33 | 1 | |||
| 7 | 8M0204667 | ----O-RING | 62705 | SS | | $1.60 | $1.57 | 1 | |
| 8 | 861209A1 | ----BUSHING KIT | ACT | | $38.92 | $38.22 | 1 | ||
| 9 | 127091 | --------SEAL Oil | 12709 | SS | | $8.50 | $8.29 | 1 | |
| 10 | 8M0058389 | ----FITTING KIT Magnetic, Plug Fill/Drain | 67892A1 | SS | | $10.29 | $10.05 | 1 | |
| 11 | 191833 | --------WASHER Fiber | 19183 | SS | | $1.39 | $1.36 | 1 | |
| 12 | 92068A6 | ----TOP COVER | ACT | | $262.17 | $246.89 | 1 | ||
| 13 | 815900 | --------BEARING | ACT | $62.83 | $60.44 | 1 | |||
| 14 | 87156 | --------BEARING ASSEMBLY Roller | ACT | $18.67 | $18.33 | 1 | |||
| 15 | 97387 | --------O-RING | ACT | $11.00 | $10.73 | 1 | |||
| 16 | 8M0113180 | ----SCREW (.375-16 x 1.00) | 98794 | SS | | $4.90 | $4.78 | 4 | |
| 17 | 87560091 | ----BEARING Thrust (.091) | ACT | | $32.92 | $32.33 | AR | ||
| 17 | 87560094 | ----BEARING Thrust (.094) | ACT | | $31.75 | $31.18 | AR | ||
| 17 | 87560097 | ----BEARING Thrust (.097) | NLA | | $32.25 | $31.67 | AR | ||
| 18 | 17997A1 | ----SPRING KIT | ACT | $10.00 | $9.76 | 1 | |||
| 19 | 86771 | BEARING Thrust | ACT | $29.75 | $29.22 | 2 | |||
| 20 | 883473A3 | GEAR (1.50:1 BRAVO I) (1.65:1 BRAVO II & III) (2.00:1 BRAVO II & III) | 807436A6 | REP | | $2,459.93 | $2,255.07 | 2 | |
| 20 | 883473A3 | GEAR (1.50:1 BRAVO III) | 807436A7 | REP | | $2,459.93 | $2,255.07 | 2 | |
| 20 | 883476A3 | GEAR (1.36:1 BRAVO I) | 807438A5 | REP | | $2,459.93 | $2,255.07 | 2 | |
| 20 | 883476A3 | GEAR (1.36:1 BRAVO III & 1.50:1 BRAVO II) | 807438A5 | REP | | $2,459.93 | $2,255.07 | 2 | |
| 20 | 883476A3 | GEAR (1.81:1 BRAVO II & III) | 807438A5 | REP | | $2,459.93 | $2,255.07 | 2 | |
| 20 | 883476A3 | GEAR (1.36:1 BRAVO I) | 807438A6 | REP | | $2,459.93 | $2,255.07 | 2 | |
| 20 | 883476A3 | GEAR (1.36:1 BRAVO III & BRAVO II) | 807438A6 | REP | | $2,459.93 | $2,255.07 | 2 | |
| 20 | 883479A3 | GEAR (1.65:1 BRAVO I) (2.20:1 BRAVO II & III) (2.43:1 BRAVO III) | 807437A5 | REP | | $2,535.07 | $2,323.96 | 2 | |
| 21 | 86768A2 | BEARING ASSEMBLY Thrust | ACT | $92.08 | $88.57 | 1 | |||
| 22 | 807375A1 | CLUTCH AND CAM KIT | NLA | | $440.63 | $414.98 | 1 | ||
| 22 | 807375A2 | CLUTCH ASSEMBLY | NLA | | $235.57 | $221.84 | 1 | ||
| 23 | 93505 | ----SPRING | ACT | | $8.50 | $8.29 | 2 | ||
| 24 | 812773T | DRIVESHAFT | ACT | $411.86 | $393.68 | 1 | |||
| 25 | 86770 | COLLAR | ACT | $70.08 | $67.41 | 1 | |||
| 26 | 8M0204675 | KEEPER | 97351 | SS | | $10.90 | $10.63 | 2 | |
| 27 | 824928001 | PLUG | 32297 | SS | | $5.30 | $5.17 | 1 | |
| 28 | 861854 | WASHER | 91964 | SS | | $4.00 | $3.91 | 4 | |
| 29 | 8M0143423 | NUT (.437-20) | 35053 | SS | | $9.10 | $8.88 | 4 | |
| 30 | 808006 | INSERT Trim Adjustment | ACT | $11.00 | $10.73 | 1 | |||
| 31 | 8M2001743 | PLATE Ground | 42276 | SS | | $5.70 | $5.56 | 1 | |
| 32 | 8M0113176 | SCREW (#10-24 x .38) | 807754 | SS | | $1.10 | $1.08 | 1 | |
| - | 16709A2 | SEAL KIT | ACT | $134.99 | $126.90 | 1 |
