| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

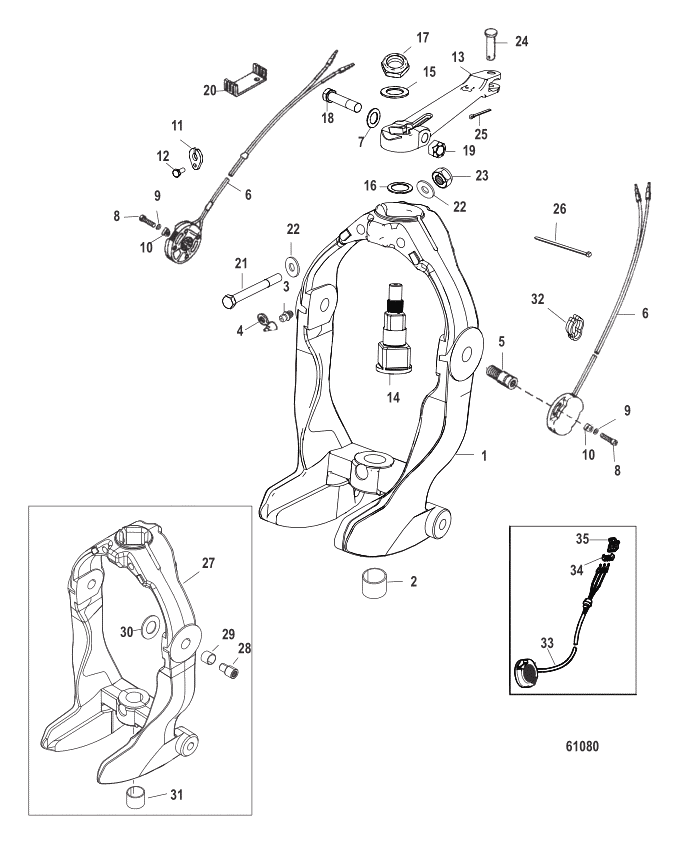

| 1 | 865328A01 | GIMBAL RING ASSEMBLY | 816461A2 | SS |
|
$1,014.07 | $929.62 | 1 | |
| 2 | 847638 | ----BEARING | 99352 | SS |
|
$57.50 | $55.31 | 1 | |
| 3 | 8M0169589 | ----FITTING Grease | 74036 | SS |
|
$4.80 | $4.69 | 2 | |
| 4 | 77633Q | LUBRICAP | 77633 | SS |
|
$7.00 | $6.83 | 2 | |
| 5 | 77123 | PIN Hinge | ACT |
|
$32.32 | $31.75 | 2 | ||
| 6 | 805320A03 | SWITCH ASSEMBLY 2-Wire Analog | 805320A1 | SS |
|
$173.49 | $161.32 | 1 | |
| NS | 805134A4 | ROTOR KIT | ACT | $44.17 | $43.37 | AR | |||
| 7 | 861854 | WASHER | 91964 | SS |
|
$4.20 | $4.10 | 1 | |
| 8 | 37978 | SCREW (#10-32 x .750) Sta | ACT | $3.40 | $3.32 | 4 | |||
| 9 | 26996 | LOCKWASHER (#10) Stainles | ACT | $1.20 | $1.18 | 4 | |||
| 10 | 57008 | RETAINER | ACT | $4.00 | $3.91 | 4 | |||
| 11 | 12078 | CLAMP | ACT | $13.60 | $13.27 | 1 | |||
| 12 | 28635 | SCREW (.250-20 x .620) St | ACT | $1.80 | $1.76 | 1 | |||
| 13 | 866322A01 | LEVER ASSEMBLY | 98262A1 | SS |
|
$313.92 | $293.23 | 1 | |
| 14 | 98230A1 | SHAFT ASSEMBLY | ACT | $433.24 | $408.00 | 1 | |||
| 15 | 85344 | WASHER (.750 Inside Diameter) | ACT | $2.81 | $2.75 | 1 | |||
| 16 | 98548 | WASHER (1.125 ) | ACT | $7.00 | $6.83 | 1 | |||
| 17 | 8M2014641 | NUT (.750-16) | 25599 | SS |
|
$16.10 | $15.70 | 1 | |
| 18 | 807204 | SCREW (.437-20 x 2.00) | ACT | $4.50 | $4.39 | 1 | |||
| 19 | 8M2008293 | NUT (.437-20) | ACT | $1.20 | $1.18 | 1 | |||
| 20 | 79146 | RETAINER | ACT | $5.60 | $5.47 | 1 | |||
| 21 | 90126 | SCREW (.375-24 x 3.750) | ACT | $6.80 | $6.64 | 2 | |||
| 22 | 34931 | WASHER (.406 x .734 x .063) Stainless Steel | ACT | $2.60 | $2.54 | 4 | |||
| 23 | 862903 | NUT (.375-24) | 134371 | SS |
|
$3.60 | $3.52 | 2 | |
| 24 | 52798 | PIN Clevis | ACT |
|
$7.50 | $7.32 | 1 | ||
| 25 | 46950 | COTTER PIN | ACT |
|
$4.20 | $4.10 | 1 | ||
| 26 | 816311T | TIE STRAP (8.00 Inches) | 816311 | SS |
|
$0.59 | $0.58 | AR | |
| 27 | 865328A01 | GIMBAL RING ASSEMBLY | ACT |
|
$1,014.07 | $929.62 | 1 | ||
| 28 | 86801 | ----SCREW Hinge Pin | ACT |
|
$35.17 | $34.54 | 2 | ||
| 29 | 847637 | ----BUSHING | ACT |
|
$30.08 | $29.59 | 2 | ||
| 30 | 41721 | ----WASHER | ACT |
|
$4.80 | $4.69 | 2 | ||
| 31 | 847638 | ----BEARING | 99352 | SS |
|
$57.50 | $55.31 | 1 | |
| 32 | 818557001 | CLAMP | ACT | $16.50 | $16.09 | 1 | |||
| 33 | 8M0095310 | SENDER ASSEMBLY Trim 3-Wire Digital | ACT |
|
$178.49 | $168.02 | 1 | ||
| 34 | 831957 | ----RETAINER | ACT | $2.60 | $2.54 | 1 | |||
| 35 | 8307973 | ----CONNECTOR | ACT | $5.70 | $5.56 | 1 | |||
| NS | NSS | --------NOT SOLD SEPARATE Trim Cover |
|
$0.00 | $0.00 | 1 |
