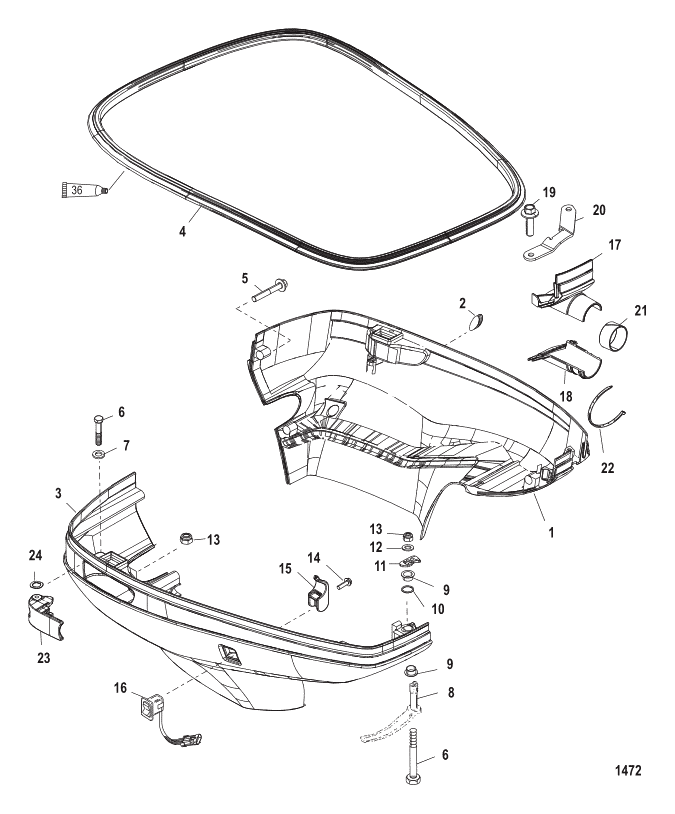

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0122314 | BOTTOM COWL Port | 850302A1 | REP |  | $860.79 | $809.83 | 1 | |
| 2 | 854367001 | ----PLUG | ACT | $26.08 | $25.62 | 1 | |||
| 3 | 8M0122313 | BOTTOM COWL Starboard | 850301A1 | REP | | $860.79 | $809.83 | 1 | |
| 4 | 8M0109218 | ----SEAL (44.00 Inches) | 8253183 | SS | | $69.83 | $67.17 | 2 | |
| 5 | 82130040 | SCREW (M6 x 40) | ACT | $7.60 | $7.42 | 4 | |||
| 6 | 824868 | SCREW (M6 x 75) | ACT | $12.30 | $12.00 | 3 | |||
| 7 | 8M0204649 | WASHER (.281 x .500 x .06 | 29245 | SS | | $1.20 | $1.18 | 2 | |
| 8 | 8M0053903 | FRONT HANDLE | 850684F1 | SS | | $60.25 | $57.95 | 1 | |
| 9 | 335891 | BUSHING | ACT | $13.00 | $12.68 | 2 | |||
| 10 | 48462 | O-RING (.614 x .070) | ACT | $1.70 | $1.66 | 1 | |||
| 11 | 8219423 | PAWL | ACT | $40.50 | $39.77 | 1 | |||
| 12 | 69057 | WASHER (.281 x .734 x .063) | ACT | $1.70 | $1.66 | 1 | |||
| 13 | 401366 | NUT (M6) Stainless Steel | ACT | $3.50 | $3.42 | 3 | |||
| 14 | 8214281 | SCREW (#10-16 x .625) | ACT | $1.70 | $1.66 | 1 | |||
| 15 | 822873 | CLIP | ACT | $7.60 | $7.42 | 1 | |||
| 16 | 8M0042300 | SWITCH Trim | 8569901 | SS | | $125.99 | $118.58 | 1 | |
| 17 | 8M8027677 | RIGGING KIT (UPPER) | 859359A2 | SS | | $56.58 | $54.43 | 1 | |
| 18 | NSS | --------NOT SOLD SEPARATE Clamp-Lower | | $0.00 | $0.00 | 1 | |||
| 19 | 82130012 | ----SCREW (M6 x 12) | ACT | $1.70 | $1.66 | 2 | |||
| 20 | NSS | --------NOT SOLD SEPARATE Strap | | $0.00 | $0.00 | 1 | |||
| 21 | 859343 | ----FOAM | ACT | $5.80 | $5.66 | 1 | |||
| 22 | 850181 | ----TIE STRAP (11.750 Inches) | ACT | $0.60 | $0.59 | 2 | |||
| 23 | 850682A06 | HANDLE Cowl | 852361T1 | REP | | $458.57 | $438.33 | 2 | |
| 24 | 29402 | WAVE WASHER | ACT | $1.70 | $1.66 | 2 |
