| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

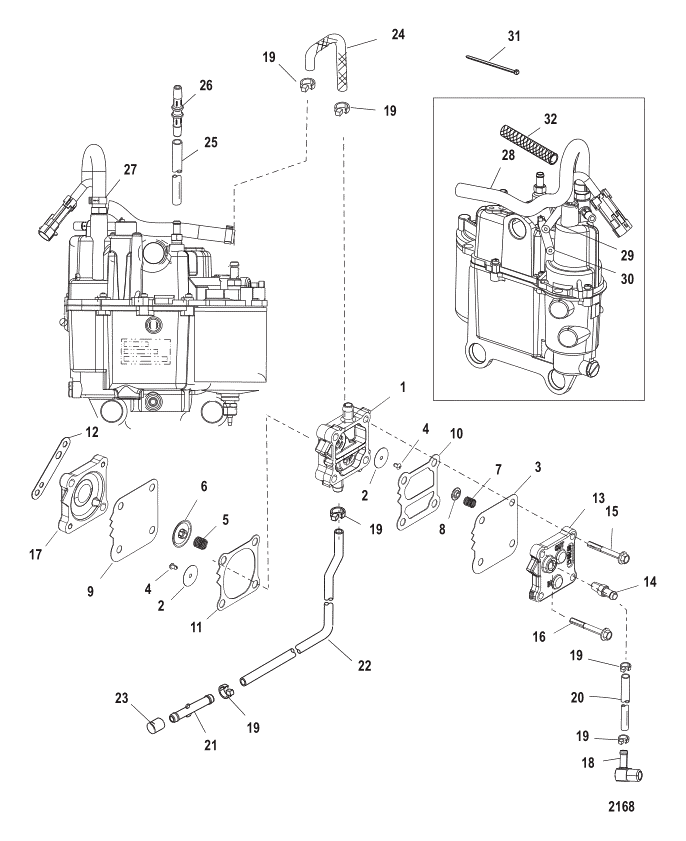

| - | 14360A78 | PUMP KIT Fuel | ACT |
|
$294.58 | $275.08 | 1 | ||
| 1 | NSS | --------NOT SOLD SEPARATE Fuel Pump |
|
$0.00 | $0.00 | 1 | |||
| - | 857005A1 | ----DIAPHRAGM KIT | ACT |
|
$33.67 | $33.04 | 1 | ||
| 2 | NSS | ----------------NOT SOLD SEPARATE Disc Check Valve |
|
$0.00 | $0.00 | 2 | |||
| 3 | NSS | ----------------NOT SOLD SEPARATE Diaphragm |
|
$0.00 | $0.00 | 1 | |||
| 4 | NSS | ----------------NOT SOLD SEPARATE Retainer |
|
$0.00 | $0.00 | 2 | |||
| 5 | NSS | ----------------NOT SOLD SEPARATE Spring |
|
$0.00 | $0.00 | 1 | |||
| 6 | NSS | ----------------NOT SOLD SEPARATE Cap |
|
$0.00 | $0.00 | 1 | |||
| 7 | NSS | ----------------NOT SOLD SEPARATE Spring |
|
$0.00 | $0.00 | 1 | |||
| 8 | NSS | ----------------NOT SOLD SEPARATE Cap |
|
$0.00 | $0.00 | 1 | |||
| 9 | NSS | ----------------NOT SOLD SEPARATE Diaphragm |
|
$0.00 | $0.00 | 1 | |||
| 10 | NSS | ----------------NOT SOLD SEPARATE Gasket-Boost |
|
$0.00 | $0.00 | 1 | |||
| 11 | NSS | ----------------NOT SOLD SEPARATE Gasket-Pulse |
|
$0.00 | $0.00 | 1 | |||
| 12 | 8M0204705 | --------GASKET | 987691 | SS |
|
$2.70 | $2.64 | 1 | |
| 13 | 987752 | ----PLATE | ACT | $24.08 | $23.65 | 1 | |||
| 14 | 16604 | ----FITTING Straight (.125-27) | ACT | $11.50 | $11.22 | 1 | |||
| 15 | 82104540 | ----SCREW (M5 x 40) Fuel Pump | ACT | $2.81 | $2.75 | 2 | |||
| 16 | 82130050 | ----SCREW (M6 x 50) Pump to Crankcase | ACT | $4.50 | $4.39 | 2 | |||
| 17 | 144303 | ----BASE | ACT | $17.08 | $16.78 | 1 | |||
| 18 | 856842 | ELBOW To Crankcase | ACT | $48.25 | $47.38 | 1 | |||
| 19 | 816311T | TIE STRAP (8.00 Inches) | ACT | $0.59 | $0.58 | AR | |||
| 20 | 8M0064783 | HOSE Pulse Line | 858800 | SS |
|
$29.00 | $28.48 | 1 | |
| 21 | 822769 | CONNECTOR | ACT | $1.20 | $1.18 | 1 | |||
| 22 | 8M0064778 | HOSE | 8568172 | SS |
|
$56.58 | $54.43 | 1 | |
| 23 | NSS | NOT SOLD SEPARATE Cap |
|
$0.00 | $0.00 | 1 | |||
| 24 | 8M0064780 | HOSE/SLEEVE | 856818A1 | SS |
|
$45.42 | $44.60 | 1 | |
| 25 | 8M0108355 | HOSE (57.00 Inches Bulk) (Cut to 16 Inches) | 830756109 | SS |
|
$52.33 | $50.55 | 1 | |
| 26 | 858955 | CONNECTOR | ACT | $3.70 | $3.61 | 1 | |||
| 27 | 8M0214964 | CLAMP Hose (15.3) | 856880 | SS |
|
$3.60 | $3.52 | 2 | |
| 28 | 8839461 | HOSE | ACT | $31.25 | $30.69 | 1 | |||
| 29 | 8M0054213 | TUBING (34.00 Inches Bulk) (Cut to 15 Inches) To Elbow on Plenum | 85583464 | REP |
|
$55.92 | $53.79 | 1 | |
| 30 | 8M0054213 | TUBING (34.00 Inches Bulk) (Cut to 28 Inches) To Oil Pump | 85583464 | REP |
|
$55.92 | $53.79 | 1 | |
| 31 | 816311T | TIE STRAP (8.00 Inches) | ACT | $0.59 | $0.58 | AR | |||
| 32 | 883965 | CONDUIT | ACT | $11.40 | $11.12 | 1 | |||
| - | 832934A00 | GASKET SET Powerhead | ACT | $186.24 | $175.40 | 1 | |||
| - | 883892A07 | POWERHEAD ASSEMBLY | 883892A04 | SS |
|
$11,257.15 | $10,082.47 | 1 | |
| - | 883893A07 | POWERHEAD ASSEMBLY | 883893A04 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| - | 883894A07 | POWERHEAD ASSEMBLY | 883894A04 | SS |
|
$11,314.30 | $10,133.65 | 1 | |
| - | 891823A07 | POWERHEAD ASSEMBLY | 891823A04 | SS |
|
$6,400.00 | $5,867.01 | 1 |
