| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

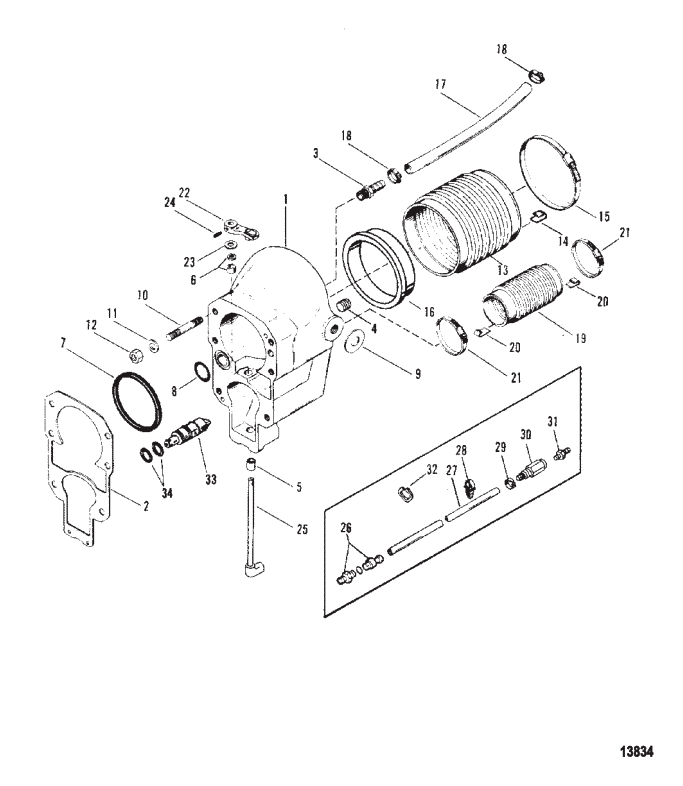

| 1 | 806031A2 | BELL HSG ASSY | ACT |
|
$1,007.99 | $923.99 | 1 | ||
| 2 | 94996Q2 | ----GASKET SET | 64818A3 | SS |
|
$17.29 | $16.94 | 1 | |
| 3 | 42683 | ----CONNECTOR | ACT | $30.59 | $30.03 | 1 | |||
| 4 | 328022 | ----PLUG | 32802 | SS |
|
$7.59 | $7.42 | 1 | |
| 5 | 814308 | ----BUSHING | ACT | $9.69 | $9.46 | 1 | |||
| 6 | 805041A2 | ----BUSHING KIT | ACT |
|
$62.99 | $60.44 | 1 | ||
| 6 | 806036A1 | ----BUSHING/SEAL KIT | ACT |
|
$23.59 | $23.16 | 1 | ||
| 7 | 8M0204656 | ----GASKET | 35982 | SS |
|
$5.89 | $5.76 | 1 | |
| 8 | 8M0214926 | ----O RING | 33504 | SS |
|
$2.89 | $2.82 | 1 | |
| 9 | 8M0162651 | ----WASHER | 72498 | SS |
|
$1.70 | $1.66 | 2 | |
| 10 | 59579 | ----STUD | ACT | $8.69 | $8.49 | 6 | |||
| 11 | 8M0204655 | WASHER | 35935 | SS |
|
$2.69 | $2.62 | 6 | |
| 12 | 859116 | NUT | 134391 | SS |
|
$5.09 | $4.98 | 6 | |
| 13 | 816431A1 | BELLOWS ASSY | ACT |
|
$133.99 | $126.11 | 1 | ||
| 14 | 8M0126505 | ----CLIP | 86049 | SS |
|
$1.70 | $1.66 | 1 | |
| 15 | 815504372 | ----CLAMP | ACT | $16.49 | $16.09 | 1 | |||
| 16 | 816607 | ----SLEEVE-BELLOWS | ACT | $19.99 | $19.56 | 1 | |||
| 17 | 8M0215001 | HOSE-14 INCH | 4172533 | SS |
|
$18.49 | $18.17 | 1 | |
| 18 | 8M0204717 | CLAMP | 815504412 | SS |
|
$6.89 | $6.73 | 2 | |
| 19 | 8M0124227 | BELLOWS ASSY | 18654A1 | SS |
|
$45.99 | $45.02 | 1 | |
| 20 | 8M0126505 | ----CLIP | 86049 | SS |
|
$1.70 | $1.66 | 2 | |
| 21 | 815504348 | ----CLAMP | ACT | $18.99 | $18.58 | 2 | |||
| 22 | 45518A3 | LEVER ASSY | 45518A2 | SS |
|
$44.99 | $44.03 | 1 | |
| 23 | 39116 | WASHER | ACT | $1.50 | $1.47 | 1 | |||
| 24 | 8M0084649 | SCREW | 45590 | SS |
|
$4.59 | $4.49 | 1 | |
| 25 | 8M0137263 | SHAFT-SHIFT-UPPER | 816685 | SS |
|
$83.49 | $80.07 | 1 | |
| 26 | 815956A1 | COUPLING KIT | ACT | $22.49 | $22.10 | 1 | |||
| 27 | 5495053 | TUBING-53 FEET | ACT | $72.99 | $70.21 | 1 | |||
| 28 | 12994 | CLIP | ACT | $2.99 | $2.92 | 1 | |||
| 29 | 865261 | ORD 865261 | 816606 | REP |
|
$21.79 | $21.36 | 1 | |
| 30 | 865261 | ORD 865261 | 816594A1 | REP |
|
$21.79 | $21.36 | 1 | |
| 31 | 814382 | CONNECTOR | ACT | $2.10 | $2.05 | 1 | |||
| 32 | 818557 | CLAMP | ACT | $7.99 | $7.81 | 2 | |||
| 33 | 18920A1 | VALVE ASSEMBLY | ACT |
|
$123.49 | $116.31 | 1 | ||
| 34 | 48171 | ----O RING | ACT |
|
$1.70 | $1.66 | 2 |
