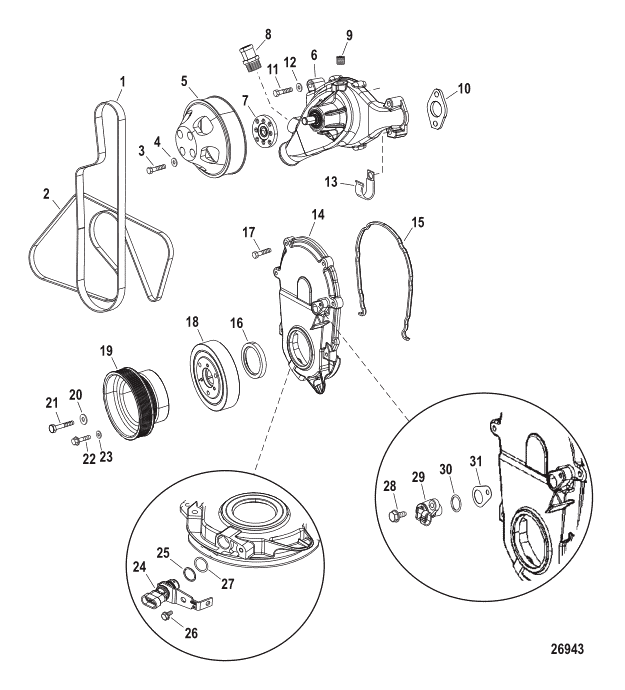

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 843096 | BELT-SERPENTINE (1744 mm) | ACT | $171.05 | $163.46 | 1 | |||
| 2 | 865615Q12 | BELT-SERPENTINE | ACT | $121.42 | $116.03 | 1 | |||
| 3 | 849377 | SCREW | ACT | $15.13 | $14.92 | 4 | |||
| 4 | 8M0042642 | WASHER | 70132 | SS |
|
$1.80 | $1.76 | 4 | |
| 5 | 899737T | ORD 899737T | 842444T | REP |
|
$339.60 | $324.52 | 1 | |
| 5 | 899737T | PULLEY-CLEAR | ACT | $339.60 | $324.52 | 1 | |||
| 6 | 811573A04 | PUMP ASSY-WATER | ACT |
|
$614.49 | $577.86 | 1 | ||
| 7 | 47530 | ----HUB | ACT | $65.49 | $62.95 | 1 | |||
| 8 | 806242 | ----CONNECTOR Hose | ACT | $73.49 | $70.54 | 1 | |||
| 9 | 845174 | ----PLUG | ACT | $13.09 | $12.78 | 1 | |||
| 10 | 8M0237307 | ----GASKET | 49110 |
|
$3.99 | $3.91 | 2 | ||
| 11 | 822168 | ----SCREW | ACT | $4.09 | $4.03 | 2 | |||
| 11 | 842787 | SCREW | ACT | $7.72 | $7.61 | 2 | |||
| 12 | 8M0214963 | WASHER | 856774 | SS |
|
$2.59 | $2.53 | 3 | |
| 13 | 78945 | J CLAMP Harness Support | ACT | $5.19 | $5.08 | 1 | |||
| 14 | 842250T02 | COVER ASSY-TIMING | ACT |
|
$422.99 | $404.12 | 1 | ||
| 15 | 850456 | ----GASKET | ACT | $25.79 | $25.29 | 1 | |||
| 16 | 8219471 | ----SEAL Oil | ACT | $39.99 | $39.20 | 1 | |||
| 17 | F2030 | SCREW-SS | ACT | $3.39 | $3.30 | 6 | |||
| 18 | 8M0140187 | DAMPER | 8M8021041 | SS |
|
$374.49 | $352.51 | 1 | |
| 19 | 842475 | PULLEY (BLUE) | ACT |
|
$480.94 | $459.58 | 1 | ||
| 19 | 899738T | PULLEY-CLEAR | ACT |
|
$779.75 | $733.37 | 1 | ||
| 20 | 8M0214963 | WASHER | 856774 | SS |
|
$2.59 | $2.53 | 3 | |
| 21 | 8431471 | SCREW | ACT | $13.53 | $13.34 | 3 | |||
| 22 | 8M0001417 | BOLT | ACT | $78.90 | $76.58 | 1 | |||
| 23 | 818780 | WASHER | ACT | $22.29 | $21.85 | 1 | |||
| 24 | 864297T01 | SENSOR-CRANK POS | ACT |
|
$313.49 | $294.91 | 1 | ||
| 25 | 885192 | ----O RING | ACT | $43.99 | $43.21 | 1 | |||
| 26 | 8175051 | SCREW | ACT | $2.39 | $2.33 | 1 | |||
| 27 | 8M0007824 | SHIM | ACT |
|
$2.59 | $2.53 | 1 | ||
| 28 | 901921 | SCREW | ACT | $1.70 | $1.66 | 1 | |||
| 29 | 8M0233299 | SENSOR ASSY Cam Position | 8M0011986 |
|
$99.99 | $96.10 | 1 | ||
| 30 | NSS | --------NOT SOLD SEPARATE O-Ring |
|
$0.00 | $0.00 | 1 | |||
| 31 | 843349 | SHIM | ACT |
|
$7.29 | $7.12 | 1 | ||
| - | 843073A05 | GASKET/SEAL SET | ACT |
|
$1,506.15 | $1,380.31 | 1 |
